DIODESDatasheet (PDF)

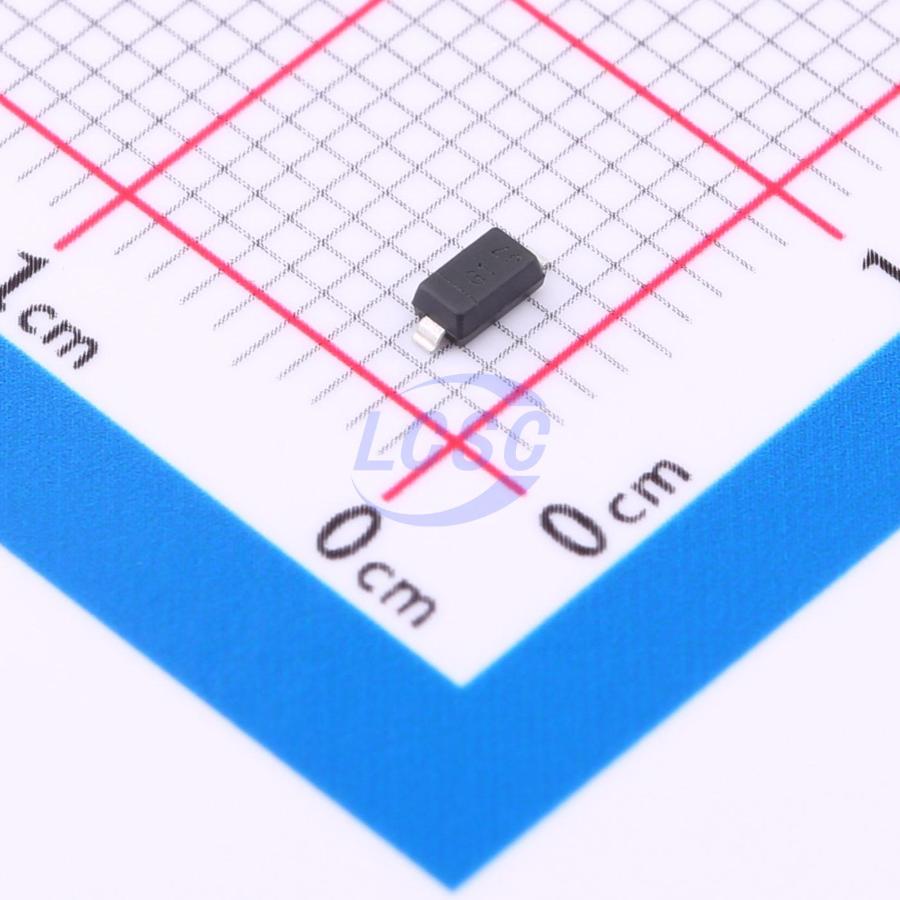

MMSZ5226BQ-7-F
1 Independent 3.14V~3.47V 3.3V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5226BQ-7-F
- Store part #
- C460240
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,410 in stock
#C460240
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.77 | ₹57.70 |
| 100+ | ₹4.62 | ₹462.00 |
| 300+ | ₹4.05 | ₹1,215.00 |
| 3,000+ | ₹3.61 | ₹10,830.00 |
| 6,000+ | ₹3.27 | ₹19,620.00 |
| 9,000+ | ₹3.10 | ₹27,900.00 |
10 × ₹5.77
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5226BQ-7-F
₹57.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 25uA@1V
- Impedance(Zzt)
- 28Ω
- Zener Voltage(Range)
- 3.14V~3.47V
- Zener Voltage(Nom)
- 3.3V
- Impedance(Zzk)
- 1.6kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Key features
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5226B-7-F#C155250DIODES · SOD-123 | DIODES | SOD-123 | 19,410 | ₹8.53 · 19,410 in stock | View |
 | MMSZ5226B#C21549JSCJ · SOD-123 | JSCJ | SOD-123 | 460 | ₹4.47 · 460 in stock | View |
 | MMSZ5226BT1G-CN#C42419980ChipNobo · SOD-123 | ChipNobo | SOD-123 | 250 | ₹1.79 · 250 in stock | View |
 | LMSZ5226BT1G#C131754LRC · SOD-123 | LRC | SOD-123 | 1,350 | ₹2.02 · 1,350 in stock | View |
 | SZMMSZ5226BT1G#C231291onsemi · SOD-123 | onsemi | SOD-123 | 7,275 | ₹14.30 · 7,275 in stock | View |
