DIODESDatasheet (PDF)

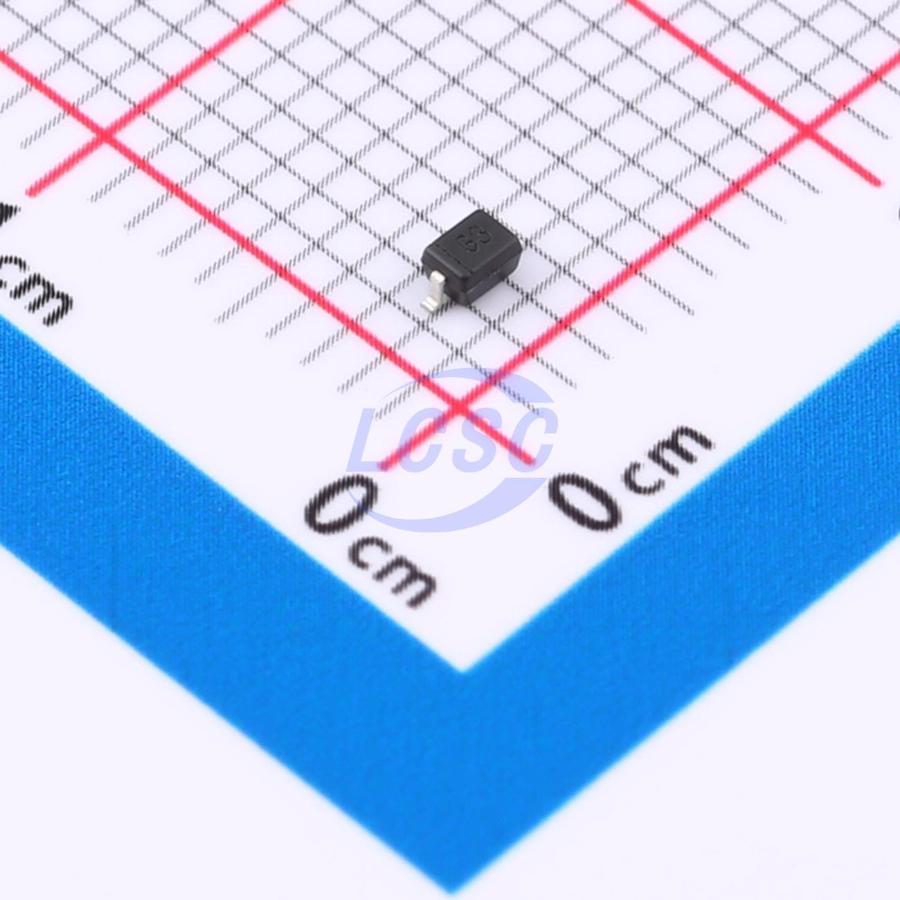

MMSZ5228BS-7-F
1 Independent 3.71V~4.1V 3.9V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5228BS-7-F
- Store part #
- C2895358
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,550 in stock
#C2895358
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.46 | ₹94.60 |
| 100+ | ₹7.57 | ₹757.00 |
| 300+ | ₹6.63 | ₹1,989.00 |
| 3,000+ | ₹5.91 | ₹17,730.00 |
| 6,000+ | ₹5.34 | ₹32,040.00 |
| 9,000+ | ₹5.07 | ₹45,630.00 |
10 × ₹9.46
₹94.60
excl. GST
₹111.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5228BS-7-F
₹94.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 10uA@1V
- Impedance(Zzt)
- 23Ω
- Zener Voltage(Range)
- 3.71V~4.1V
- Zener Voltage(Nom)
- 3.9V
- Impedance(Zzk)
- 1.9kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52-C3V9S_R1_00001#C391452PANJIT · SOD-323 | PANJIT | SOD-323 | 2,000 | ₹3.33 · 2,000 in stock | View |
 | LM3Z3V9T1G#C131810LRC · SOD-323 | LRC | SOD-323 | 20 | ₹2.96 · 20 in stock | View |
 | BZT52C3V9S#C5157530LGE · SOD-323 | LGE | SOD-323 | 1,650 | ₹1.79 · 1,650 in stock | View |
 | BZT52C3V9S#C5353058FOSAN · SOD-323 | FOSAN | SOD-323 | 3,400 | ₹1.57 · 3,400 in stock | View |
 | MM3Z3V9CW#C248772Tak Cheong · SOD-323 | Tak Cheong | SOD-323 | 50 | ₹2.50 · 50 in stock | View |
