DIODESDatasheet (PDF)

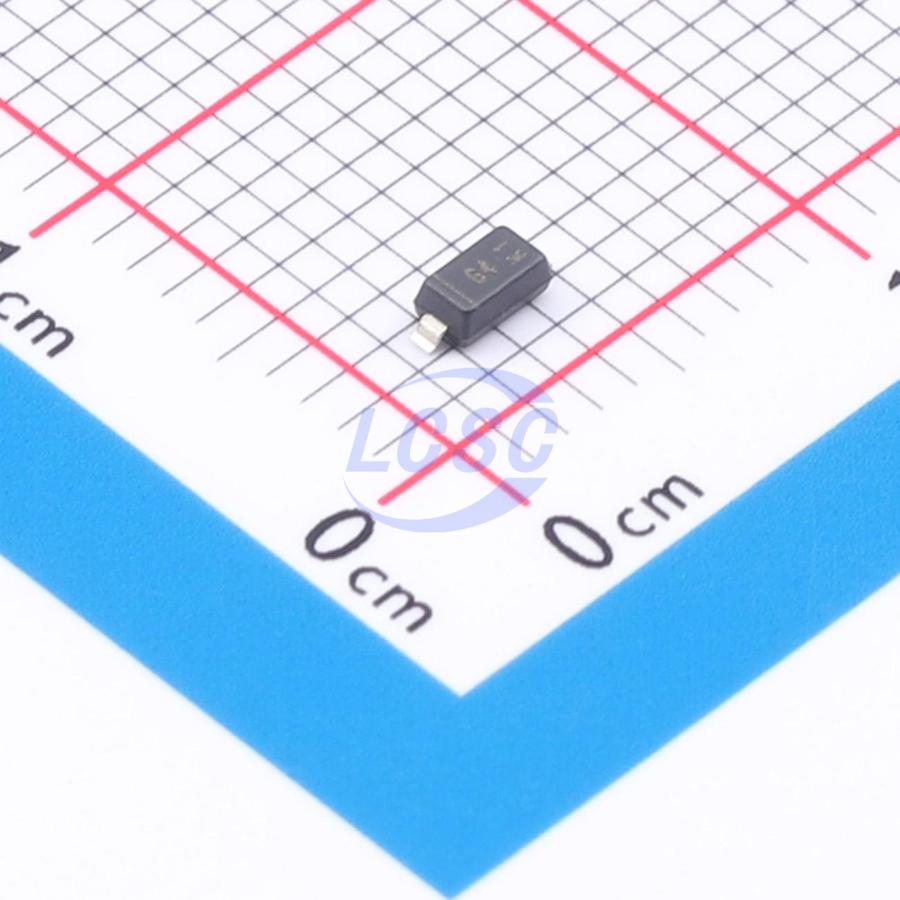

MMSZ5229BQ-7-F
1 Independent 4.09V~4.52V 4.3V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5229BQ-7-F
- Store part #
- C5774803
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5774803
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.98 | ₹44.90 |
| 50+ | ₹8.77 | ₹438.50 |
| 150+ | ₹8.64 | ₹1,296.00 |
| 500+ | ₹8.49 | ₹4,245.00 |
5 × ₹8.98
₹44.90
excl. GST
₹52.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5229BQ-7-F
₹44.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 22Ω
- Zener Voltage(Range)
- 4.09V~4.52V
- Zener Voltage(Nom)
- 4.3V
- Impedance(Zzk)
- 2kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
Key features
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5229B#C21552JSCJ · SOD-123 | JSCJ | SOD-123 | 1,880 | ₹3.12 · 1,880 in stock | View |
 | LMSZ5229BT1G#C131751LRC · SOD-123 | LRC | SOD-123 | 2,650 | ₹6.81 · 2,650 in stock | View |
 | MMSZ5229BQ#C20602064YANGJIE · SOD-123 | YANGJIE | SOD-123 | 1,200 | ₹4.71 · 1,200 in stock | View |
 | MMSZ5229BT1G#C242261onsemi · SOD-123 | onsemi | SOD-123 | 4,460 | ₹8.82 · 4,460 in stock | View |
 | MMSZ5229B_R1_00001#C2902539PANJIT · SOD-123 | PANJIT | SOD-123 | 540 | ₹3.39 · 540 in stock | View |
