VISHAYDatasheet (PDF)

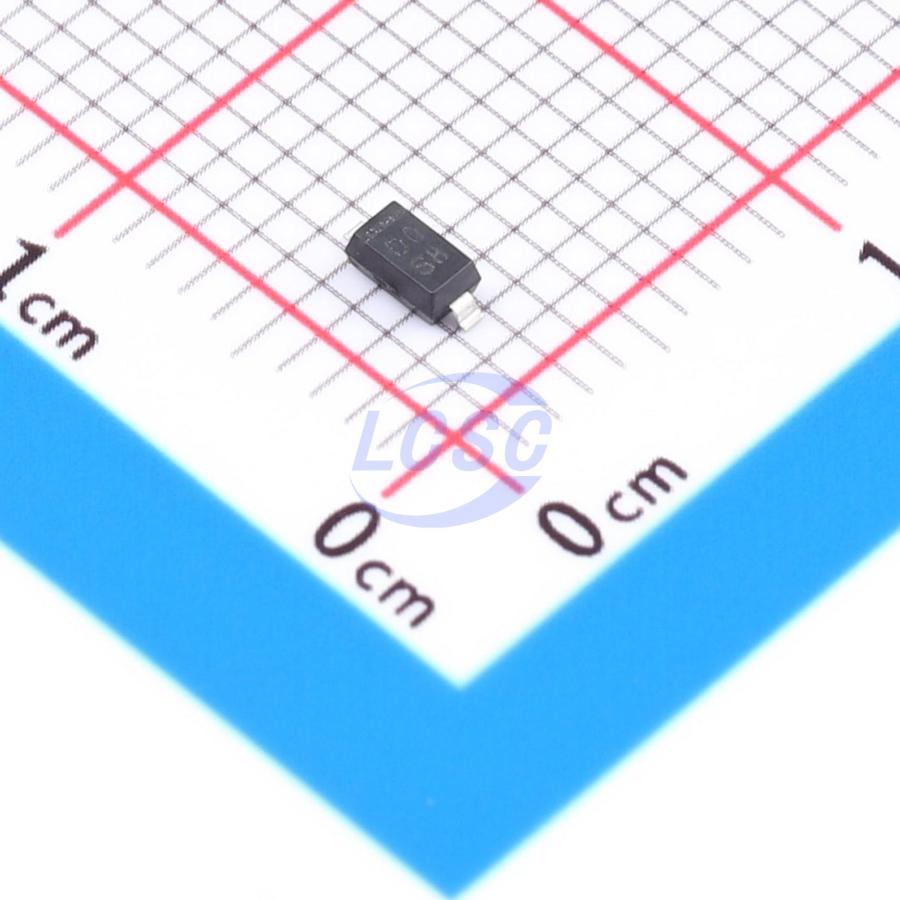

MMSZ5230B-HE3_A-08
1 Independent 4.7V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- MMSZ5230B-HE3_A-08
- Store part #
- C20561046
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,735 in stock
#C20561046
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.13 | ₹200.65 |
| 50+ | ₹31.94 | ₹1,597.00 |
| 150+ | ₹28.42 | ₹4,263.00 |
| 500+ | ₹24.04 | ₹12,020.00 |
| 3,000+ | ₹22.09 | ₹66,270.00 |
| 6,000+ | ₹20.92 | ₹1,25,520.00 |
5 × ₹40.13
₹200.65
excl. GST
₹236.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5230B-HE3_A-08
₹200.65 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 5uA@2V
- Impedance(Zzt)
- 19Ω
- Zener Voltage(Nom)
- 4.7V
- Impedance(Zzk)
- 1.9kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Key features
- Silicon planar Zener diode
- Standard Zener voltage tolerance: ±5% with "B" suffix (e.g., MMSZ5225B), ±2% tolerance with "C" suffix
- AEC-Q101 qualified
- ESD capability per AEC-Q101: Human Body Model >8 kV, Machine Model >800 V
- Base part number - E3: RoHS compliant, commercial grade
- Base part number - HE3_A: RoHS compliant, AEC-Q101 qualified
