onsemiDatasheet (PDF)

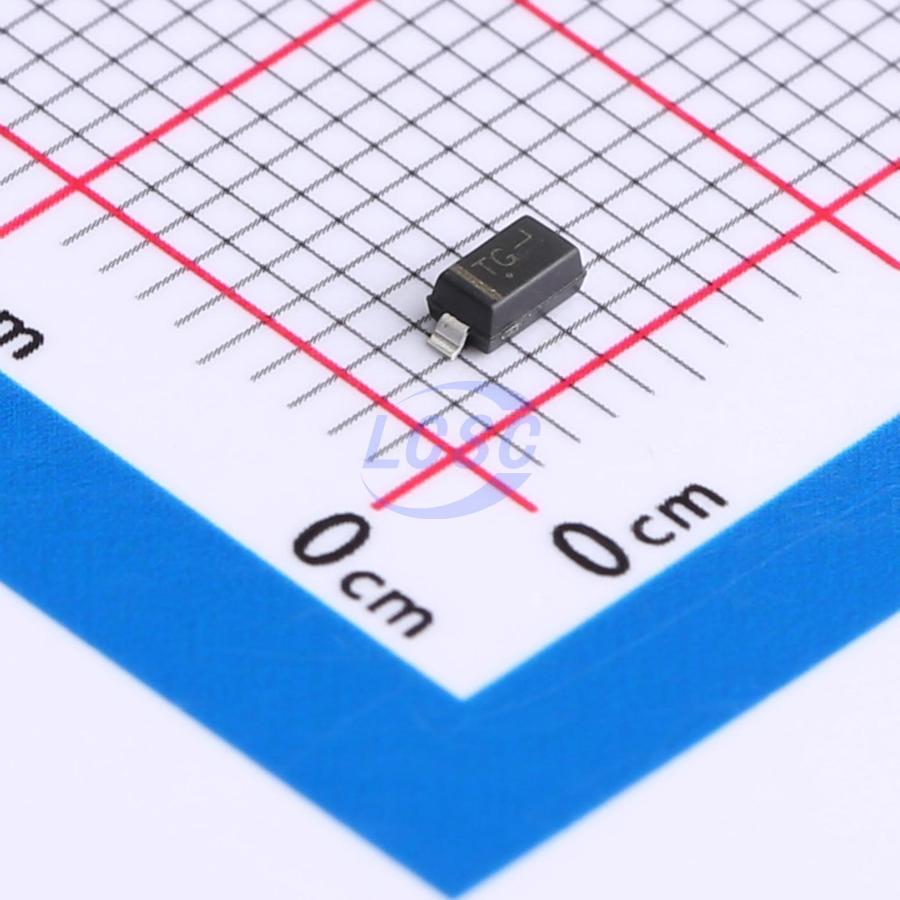

MMSZ5231CT1G
Zener Diode Independent 5.1V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 5.1V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ5231CT1G
- Store part #
- C891724
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C891724
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.83 | ₹109.15 |
| 50+ | ₹21.34 | ₹1,067.00 |
| 150+ | ₹21.02 | ₹3,153.00 |
| 500+ | ₹19.67 | ₹9,835.00 |
5 × ₹21.83
₹109.15
excl. GST
₹128.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5231CT1G
₹109.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 5uA@2V
- Impedance(Zzt)
- 17Ω
- Zener Voltage(Range)
- 4.998V~5.202V
- Zener Voltage(Nom)
- 5.1V
- Impedance(Zzk)
- 1.6kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD - 123 package. These devices provide a convenient alternative to the leadless 34 - package style. Zener voltage in this series are specified with device junction in thermal equilibrium.
Key features
- 500 mW Rating on FR - 4 or FR - 5 Board
- Wide Zener Reverse Voltage Range - 2.4 V to 110 V @ Thermal Equilibrium
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- General Purpose, Medium Current
- ESD Rating of Class 3 (>16 kV per Human Body Model)
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5231A_R1_00001#C268590PANJIT · SOD-123 | PANJIT | SOD-123 | 680 | ₹4.21 · 680 in stock | View |
 | MM1Z5V1BW#C2856892JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 1,700 | ₹2.50 · 1,700 in stock | View |
 | MM1Z5V1BW#C3019270Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 3,000 | ₹2.34 · 3,000 in stock | View |
 | MM1Z5V1B#C438305Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 2,650 | ₹2.50 · 2,650 in stock | View |
 | BZT52B5V1#C475656Shikues · SOD-123 | Shikues | SOD-123 | 3,000 | ₹2.88 · 3,000 in stock | View |
