DIODESDatasheet (PDF)

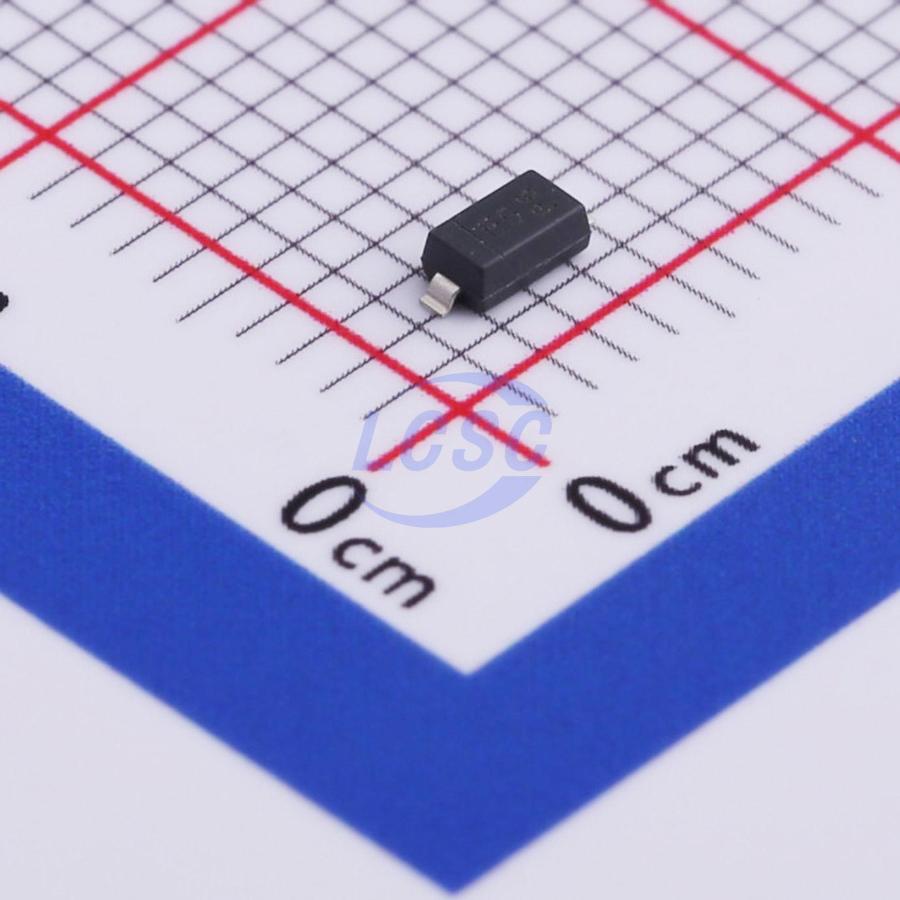

MMSZ5235B-7-F
Zener Diode Independent 6.8V 370mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 6.8V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5235B-7-F
- Store part #
- C500786
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,150 in stock
#C500786
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.41 | ₹54.10 |
| 100+ | ₹4.35 | ₹435.00 |
| 300+ | ₹3.82 | ₹1,146.00 |
| 3,000+ | ₹3.43 | ₹10,290.00 |
| 6,000+ | ₹3.11 | ₹18,660.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.41
₹54.10
excl. GST
₹63.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5235B-7-F
₹54.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 3uA@5V
- Impedance(Zzt)
- 5Ω
- Zener Voltage(Range)
- 6.46V~7.14V
- Zener Voltage(Nom)
- 6.8V
- Impedance(Zzk)
- 750Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
Key features
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5235B#C2124JSCJ · SOD-123 | JSCJ | SOD-123 | 400 | ₹3.37 · 400 in stock | View |
 | MMSZ5235B#C21714114CBI · SOD-123 | CBI | SOD-123 | 600 | ₹1.98 · 600 in stock | View |
 | AD-MMSZ5235B#C2975584JSCJ · SOD-123 | JSCJ | SOD-123 | 620 | ₹2.74 · 620 in stock | View |
 | LMSZ5235BT1G#C131748LRC · SOD-123 | LRC | SOD-123 | 3,100 | ₹3.49 · 3,100 in stock | View |
 | MMSZ5235B_R1_00001#C268596PANJIT · SOD-123 | PANJIT | SOD-123 | 2,420 | ₹4.66 · 2,420 in stock | View |
