JSCJDatasheet (PDF)

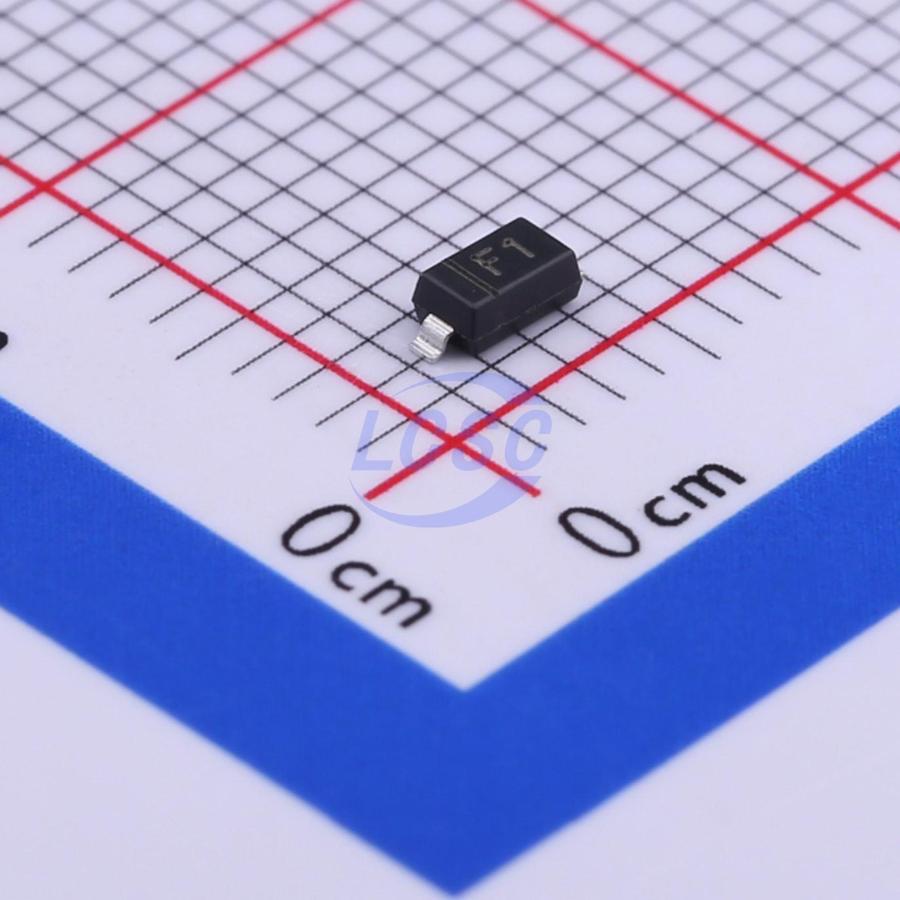

MMSZ5236B
Zener Diode Independent 7.5V 350mW Surface Mount SOD-123
SOD-123ROHS CompliantActive
DIODE ZENER 7.5V 350mW SOD-123
- Manufacturer
- JSCJ
- Manufacturer part #
- MMSZ5236B
- Store part #
- C21545
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,400 in stock
#C21545
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.51 | ₹90.20 |
| 200+ | ₹3.73 | ₹746.00 |
| 600+ | ₹3.29 | ₹1,974.00 |
| 3,000+ | ₹2.74 | ₹8,220.00 |
| 9,000+ | ₹2.51 | ₹22,590.00 |
| 21,000+ | ₹2.39 | ₹50,190.00 |
20 × ₹4.51
₹90.20
excl. GST
₹106.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5236B
₹90.20 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 3uA
- Impedance(Zzt)
- 6Ω
- Zener Voltage(Range)
- 7.13V~7.88V
- Zener Voltage(Nom)
- 7.5V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.033 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ4693#C21507JSCJ · SOD-123 | JSCJ | SOD-123 | 4,820 | ₹4.00 · 4,820 in stock | View |
 | BZT52B7V5#C2961204JSCJ · SOD-123 | JSCJ | SOD-123 | 1,340 | ₹3.39 · 1,340 in stock | View |
 | BZT52C7V5#C2121JSCJ · SOD-123 | JSCJ | SOD-123 | 5,500 | ₹3.51 · 5,500 in stock | View |
 | MMSZ5235B#C2124JSCJ · SOD-123 | JSCJ | SOD-123 | 400 | ₹3.37 · 400 in stock | View |
 | AD-MMSZ5235B#C2975584JSCJ · SOD-123 | JSCJ | SOD-123 | 620 | ₹2.74 · 620 in stock | View |
