DIODESDatasheet (PDF)

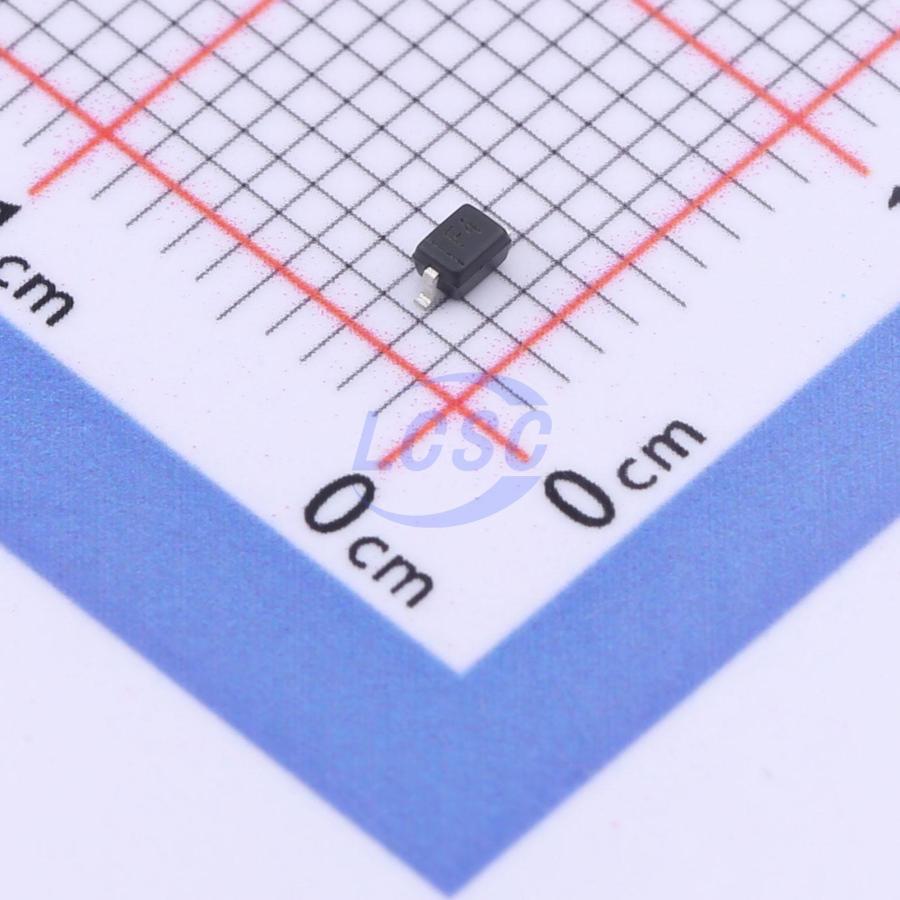

MMSZ5239BS-7-F
Zener Diode Independent 9.1V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 9.1V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5239BS-7-F
- Store part #
- C3032809
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C3032809
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.20 | ₹62.00 |
| 100+ | ₹4.97 | ₹497.00 |
| 300+ | ₹4.35 | ₹1,305.00 |
| 3,000+ | ₹3.89 | ₹11,670.00 |
| 6,000+ | ₹3.52 | ₹21,120.00 |
| 9,000+ | ₹3.33 | ₹29,970.00 |
10 × ₹6.20
₹62.00
excl. GST
₹73.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5239BS-7-F
₹62.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 3uA@7V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 8.65V~9.56V
- Zener Voltage(Nom)
- 9.1V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5239BS#C22395564R+O · SOD-323 | R+O | SOD-323 | 2,640 | ₹3.11 · 2,640 in stock | View |
 | MMSZ5239BS#C263323PANJIT · SOD-323 | PANJIT | SOD-323 | 860 | ₹3.15 · 860 in stock | View |
 | MMSZ5239BS_R1_00001#C2902545PANJIT · SOD-323 | PANJIT | SOD-323 | 4,900 | ₹3.23 · 4,900 in stock | View |
 | MMSZ5239BS#C2910094JSCJ · SOD-323 | JSCJ | SOD-323 | 3,000 | ₹3.72 · 3,000 in stock | View |
 | BZT52-C9V1S_R1_00001#C313474PANJIT · SOD-323 | PANJIT | SOD-323 | 4,780 | ₹3.68 · 4,780 in stock | View |
