TECH PUBLICDatasheet (PDF)

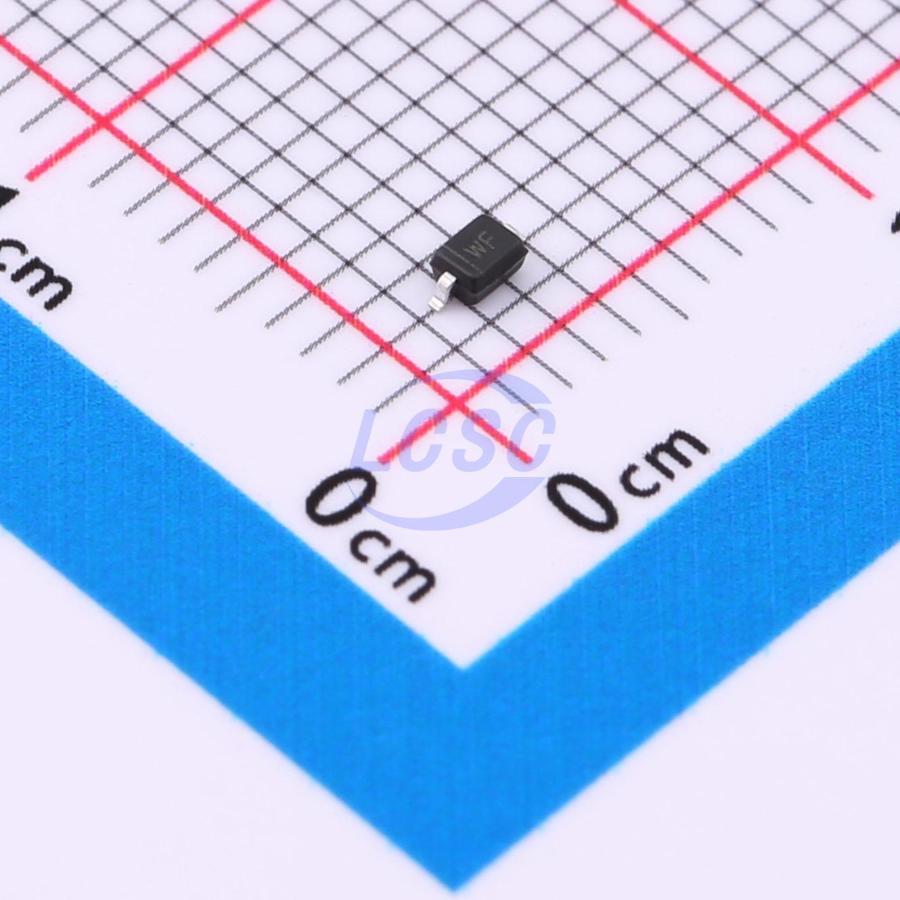

MMSZ5240BS
Zener Diode 10V 200mW Surface Mount SOD-323
SOD-323RoHSActive
DIODE ZENER 10V 200mW SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MMSZ5240BS
- Store part #
- C42370504
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C42370504
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.96 | ₹98.00 |
| 500+ | ₹1.55 | ₹775.00 |
| 1,500+ | ₹1.31 | ₹1,965.00 |
| 5,000+ | ₹1.18 | ₹5,900.00 |
| 25,000+ | ₹1.06 | ₹26,500.00 |
| 50,000+ | ₹0.9923 | ₹49,615.00 |
50 × ₹1.96
₹98.00
excl. GST
₹115.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5240BS
₹98.00 for 50 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 100nA@7V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 9.4V~10.6V
- Zener Voltage(Nom)
- 10V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.027 g
Overview
Applications
- General voltage regulation
- Mobile and handheld systems
Key features
- Low zener impedance
- 200mW power dissipation
- High stability and reliability
- Halogen-free and RoHS compliant
- SOD323 surface mount package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C10S#C42370476TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,000 | ₹2.01 · 2,000 in stock | View |
 | MM3Z10VT1G-TP#C42370498TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 3,000 | ₹1.11 · 3,000 in stock | View |
 | TPZ10VC-323#C42370597TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,800 | ₹2.43 · 2,800 in stock | View |
 | MM3Z10W#C42370499TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 3,000 | ₹1.10 · 3,000 in stock | View |
 | MM3Z9V1T1G-TP#C46641628TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 4,100 | ₹2.08 · 4,100 in stock | View |
