DIODESDatasheet (PDF)

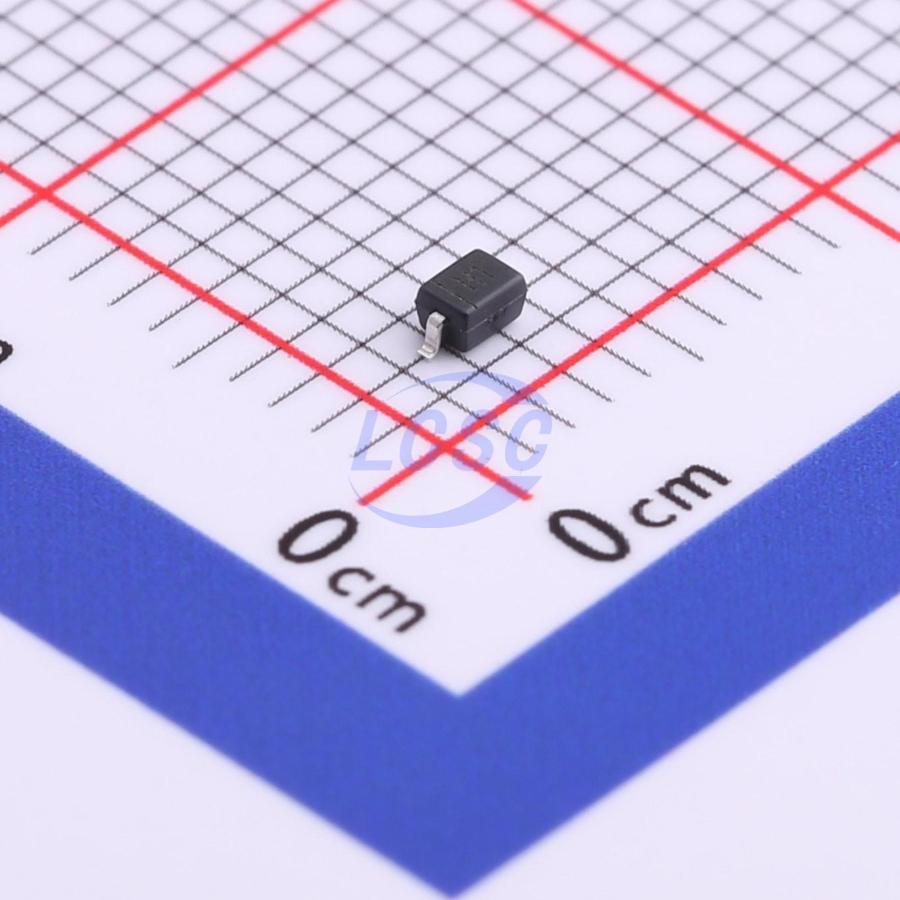

MMSZ5241BS-7-F
Zener Diode Independent 11V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 11V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5241BS-7-F
- Store part #
- C508232
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C508232
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.15 | ₹83.00 |
| 200+ | ₹3.28 | ₹656.00 |
| 600+ | ₹2.79 | ₹1,674.00 |
| 3,000+ | ₹2.50 | ₹7,500.00 |
| 9,000+ | ₹2.24 | ₹20,160.00 |
| 21,000+ | ₹2.10 | ₹44,100.00 |
20 × ₹4.15
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5241BS-7-F
₹83.00 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 2uA@8.4V
- Impedance(Zzt)
- 22Ω
- Zener Voltage(Range)
- 10.45V~11.55V
- Zener Voltage(Nom)
- 11V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.031 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5241BS_R1_00001#C2902541PANJIT · SOD-323 | PANJIT | SOD-323 | 4,480 | ₹3.81 · 4,480 in stock | View |
 | MMSZ5241BS#C5362069CBI · SOD-323 | CBI | SOD-323 | 2,560 | ₹2.43 · 2,560 in stock | View |
 | BZT52C11S#C968139YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 2,820 | ₹3.41 · 2,820 in stock | View |
 | BZT52C11SQ#C2857085JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,150 | ₹2.37 · 1,150 in stock | View |
 | BZT52-C11S_R1_00001#C2912870PANJIT · SOD-323 | PANJIT | SOD-323 | 360 | ₹3.61 · 360 in stock | View |
