DIODESDatasheet (PDF)

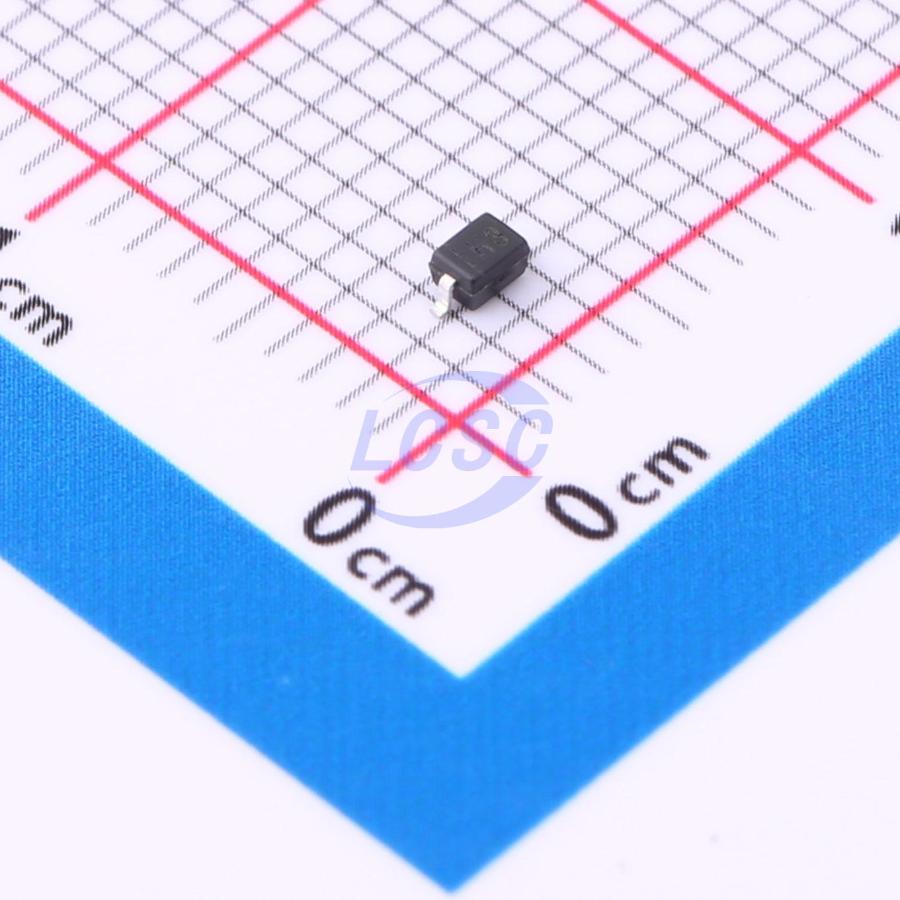

MMSZ5243BS-7-F
Zener Diode 13V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 13V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5243BS-7-F
- Store part #
- C5249130
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
360 in stock
#C5249130
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.80 | ₹56.00 |
| 200+ | ₹2.75 | ₹550.00 |
| 600+ | ₹2.71 | ₹1,626.00 |
| 3,000+ | ₹2.67 | ₹8,010.00 |
20 × ₹2.80
₹56.00
excl. GST
₹66.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5243BS-7-F
₹56.00 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 500nA@9.9V
- Impedance(Zzt)
- 13Ω
- Zener Voltage(Range)
- 12.35V~13.65V
- Zener Voltage(Nom)
- 13V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.029 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5243BS#C3031853JSCJ · SOD-323 | JSCJ | SOD-323 | 20 | ₹3.56 · 20 in stock | View |
 | TPZ13VC-323#C46641650TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,350 | ₹2.21 · 2,350 in stock | View |
 | MM3Z13VCW#C248784Tak Cheong · SOD-323 | Tak Cheong | SOD-323 | 50 | ₹2.70 · 50 in stock | View |
 | BZT52C13SQ#C2857087JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,550 | ₹2.33 · 2,550 in stock | View |
 | BZT52C13S#C5353071FOSAN · SOD-323 | FOSAN | SOD-323 | 3,650 | ₹1.59 · 3,650 in stock | View |
