DIODESDatasheet (PDF)

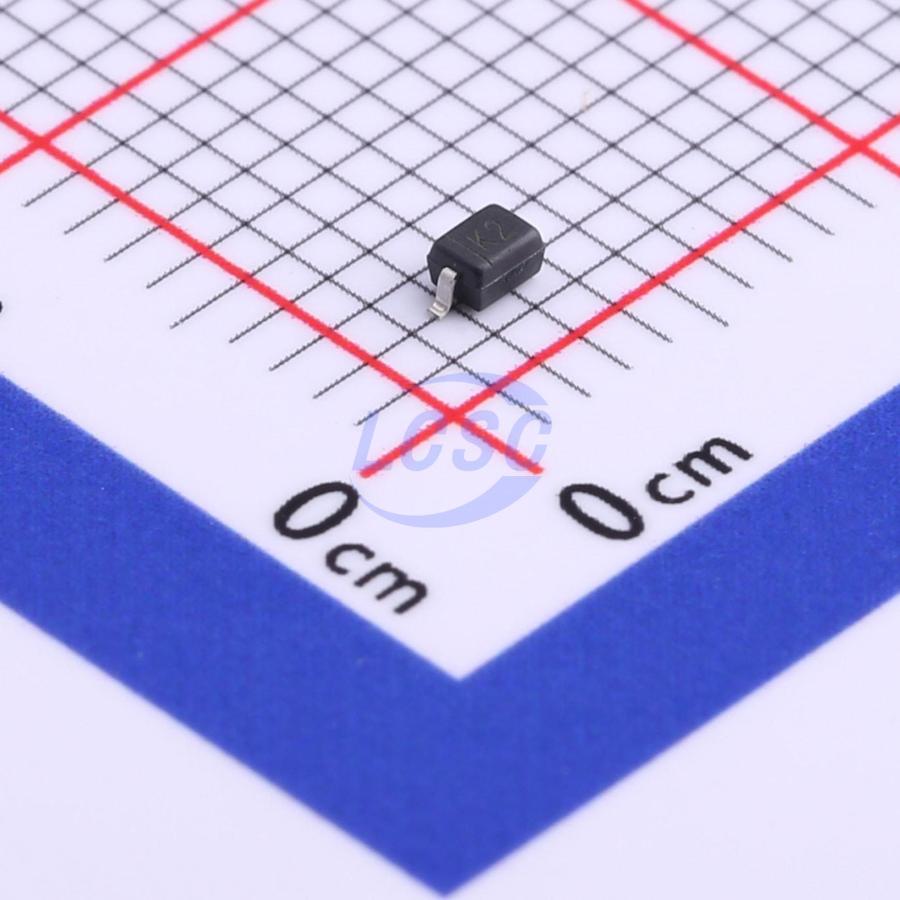

MMSZ5252BS-7-F
Zener Diode 24V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 24V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5252BS-7-F
- Store part #
- C674401
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,110 in stock
#C674401
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.99 | ₹69.90 |
| 100+ | ₹5.81 | ₹581.00 |
| 300+ | ₹5.23 | ₹1,569.00 |
| 3,000+ | ₹4.78 | ₹14,340.00 |
| 6,000+ | ₹4.43 | ₹26,580.00 |
| 9,000+ | ₹4.25 | ₹38,250.00 |
10 × ₹6.99
₹69.90
excl. GST
₹82.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5252BS-7-F
₹69.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 100nA@18V
- Impedance(Zzt)
- 33Ω
- Zener Voltage(Range)
- 22.8V~25.2V
- Zener Voltage(Nom)
- 24V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AD-MMSZ5252BS#C2975764JSCJ · SOD-323 | JSCJ | SOD-323 | 780 | ₹2.83 · 780 in stock | View |
 | MMSZ5252BS#C51315469CBI · SOD-323 | CBI | SOD-323 | 2,600 | ₹1.97 · 2,600 in stock | View |
 | BZT52_C24S_R1_00001#C313136PANJIT · SOD-323 | PANJIT | SOD-323 | 90 | ₹4.62 · 90 in stock | View |
 | BZT52C24S#C7427970NH · SOD-323 | NH | SOD-323 | 2,650 | ₹2.02 · 2,650 in stock | View |
 | BZT52C24S#C5157523LGE · SOD-323 | LGE | SOD-323 | 2,300 | ₹2.09 · 2,300 in stock | View |
