DIODESDatasheet (PDF)

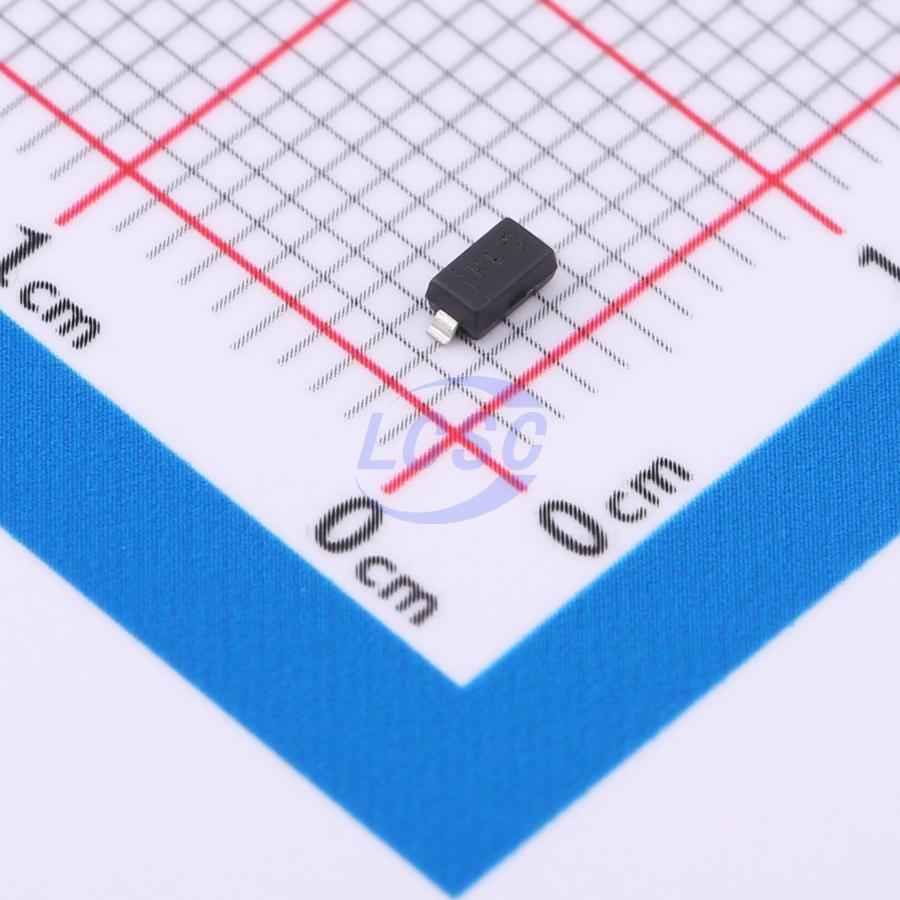

MMSZ5254BQ-7-F
1 Independent 25.65V~28.35V 27V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
DIODE ZENER 27V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5254BQ-7-F
- Store part #
- C6909633
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,550 in stock
#C6909633
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.97 | ₹59.70 |
| 100+ | ₹4.78 | ₹478.00 |
| 300+ | ₹4.18 | ₹1,254.00 |
| 3,000+ | ₹3.73 | ₹11,190.00 |
| 6,000+ | ₹3.37 | ₹20,220.00 |
| 9,000+ | ₹3.19 | ₹28,710.00 |
10 × ₹5.97
₹59.70
excl. GST
₹70.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5254BQ-7-F
₹59.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 100nA@21V
- Impedance(Zzt)
- 41Ω
- Zener Voltage(Range)
- 25.65V~28.35V
- Zener Voltage(Nom)
- 27V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.019 g
Overview
Key features
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5254B#C21538JSCJ · SOD-123 | JSCJ | SOD-123 | 1,960 | ₹3.60 · 1,960 in stock | View |
 | MMSZ5254B#C5362066CBI · SOD-123 | CBI | SOD-123 | 1,900 | ₹2.24 · 1,900 in stock | View |
 | AD-MMSZ5254B#C2975677JSCJ · SOD-123 | JSCJ | SOD-123 | 880 | ₹2.74 · 880 in stock | View |
 | MMSZ5254B_R1_00001#C268624PANJIT · SOD-123 | PANJIT | SOD-123 | 4,500 | ₹5.16 · 4,500 in stock | View |
 | MMSZ5254BT1G-TP#C46472955TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 1,150 | ₹2.22 · 1,150 in stock | View |
