DIODESDatasheet (PDF)

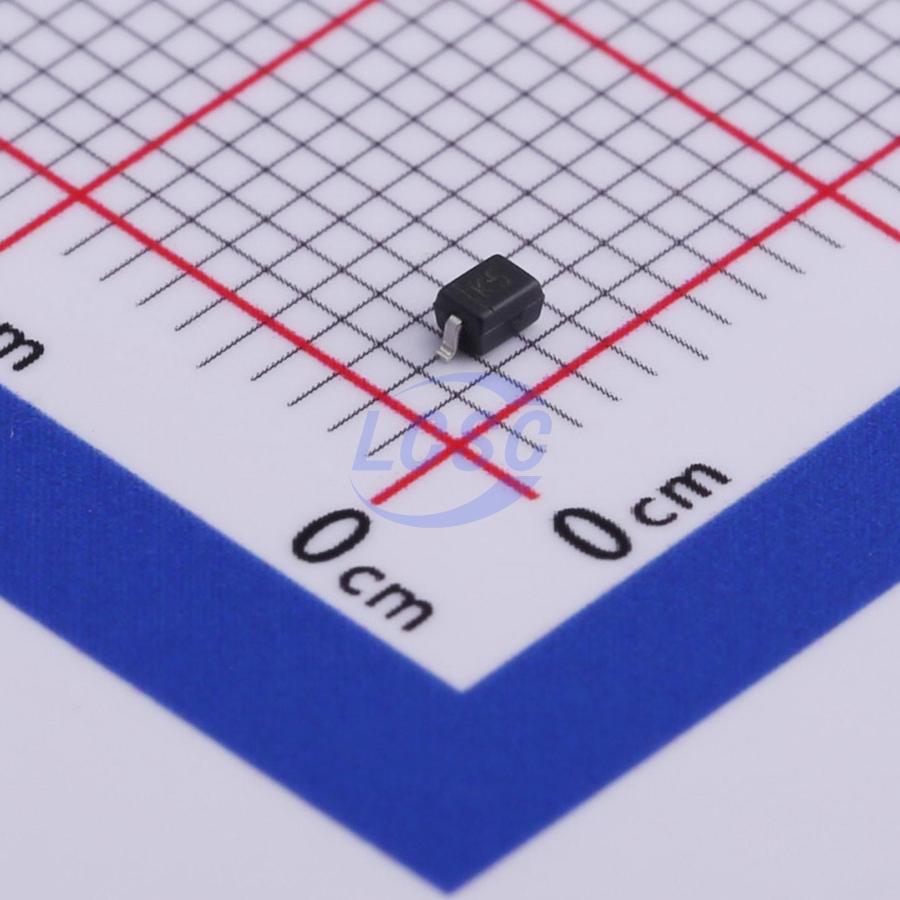

MMSZ5255BS-7-F
Zener Diode Independent 28V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 28V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5255BS-7-F
- Store part #
- C460921
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C460921
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.24 | ₹62.40 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.38 | ₹1,314.00 |
| 3,000+ | ₹3.90 | ₹11,700.00 |
| 6,000+ | ₹3.53 | ₹21,180.00 |
| 9,000+ | ₹3.35 | ₹30,150.00 |
10 × ₹6.24
₹62.40
excl. GST
₹73.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5255BS-7-F
₹62.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 100nA@21V
- Impedance(Zzt)
- 44Ω
- Zener Voltage(Range)
- 26.6V~29.4V
- Zener Voltage(Nom)
- 28V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5255BS#C2910092JSCJ · SOD-323 | JSCJ | SOD-323 | 2,160 | ₹3.37 · 2,160 in stock | View |
 | MMSZ5254BS-7-F#C5249133DIODES · SOD-323 | DIODES | SOD-323 | 5 | ₹28.22 · 5 in stock | View |
 | AD-MMSZ5254BS#C2975766JSCJ · SOD-323 | JSCJ | SOD-323 | 2,600 | ₹4.18 · 2,600 in stock | View |
 | MMSZ5254BS#C191372JSCJ · SOD-323 | JSCJ | SOD-323 | 320 | ₹3.25 · 320 in stock | View |
 | BZT52C27S#C47120477BLUE ROCKET · SOD-323 | BLUE ROCKET | SOD-323 | 2,900 | ₹2.37 · 2,900 in stock | View |
