DIODESDatasheet (PDF)

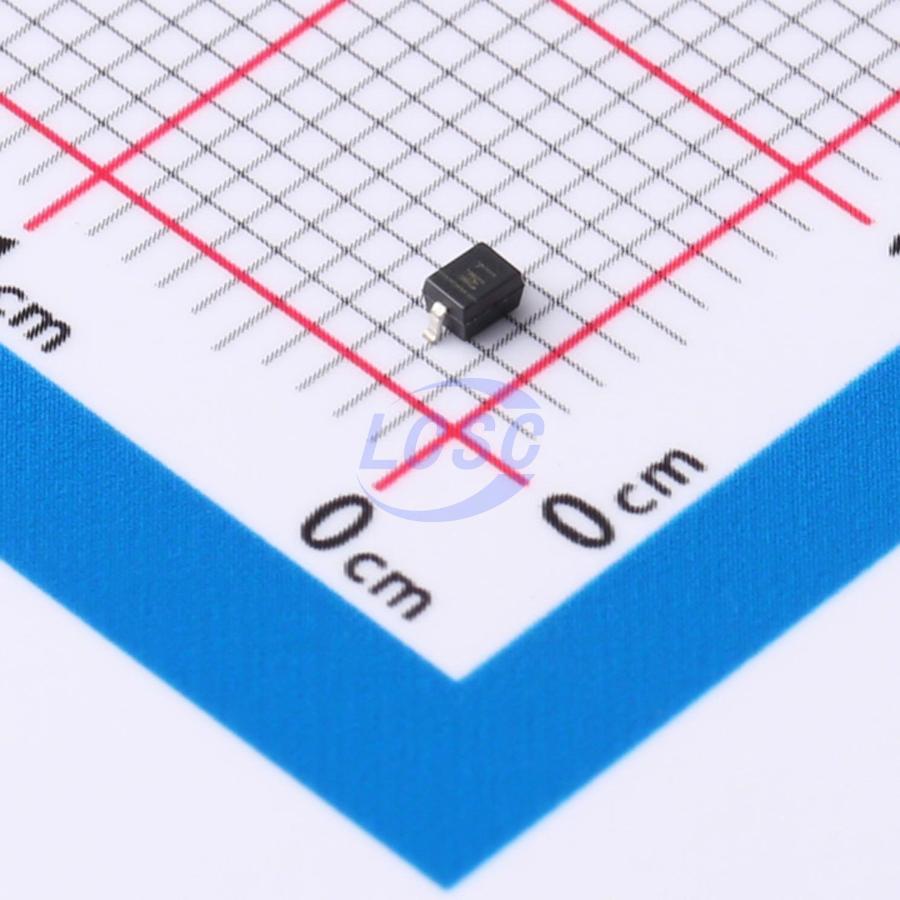

MMSZ5256BS-7-F
1 Independent 28.5V~31.5V 30V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5256BS-7-F
- Store part #
- C5249134
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C5249134
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.86 | ₹88.60 |
| 100+ | ₹7.09 | ₹709.00 |
| 300+ | ₹6.20 | ₹1,860.00 |
| 3,000+ | ₹5.54 | ₹16,620.00 |
| 6,000+ | ₹5.01 | ₹30,060.00 |
| 9,000+ | ₹4.75 | ₹42,750.00 |
10 × ₹8.86
₹88.60
excl. GST
₹104.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5256BS-7-F
₹88.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 100nA@23V
- Impedance(Zzt)
- 49Ω
- Zener Voltage(Range)
- 28.5V~31.5V
- Zener Voltage(Nom)
- 30V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.013 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- General Purpose
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5256BS#C5277980MSKSEMI · SOD-323 | MSKSEMI | SOD-323 | 1,180 | ₹4.29 · 1,180 in stock | View |
 | MMSZ5256BS#C41410800R+O · SOD-323 | R+O | SOD-323 | 6,320 | ₹3.19 · 6,320 in stock | View |
 | MMSZ5256BS#C3031852JSCJ · SOD-323 | JSCJ | SOD-323 | 1,300 | ₹3.10 · 1,300 in stock | View |
 | BZT52-C30S-AU#C461726PANJIT · SOD-323 | PANJIT | SOD-323 | 60 | ₹4.50 · 60 in stock | View |
 | BZT52C30S#C7427974NH · SOD-323 | NH | SOD-323 | 2,550 | ₹2.02 · 2,550 in stock | View |
