VISHAYDatasheet (PDF)

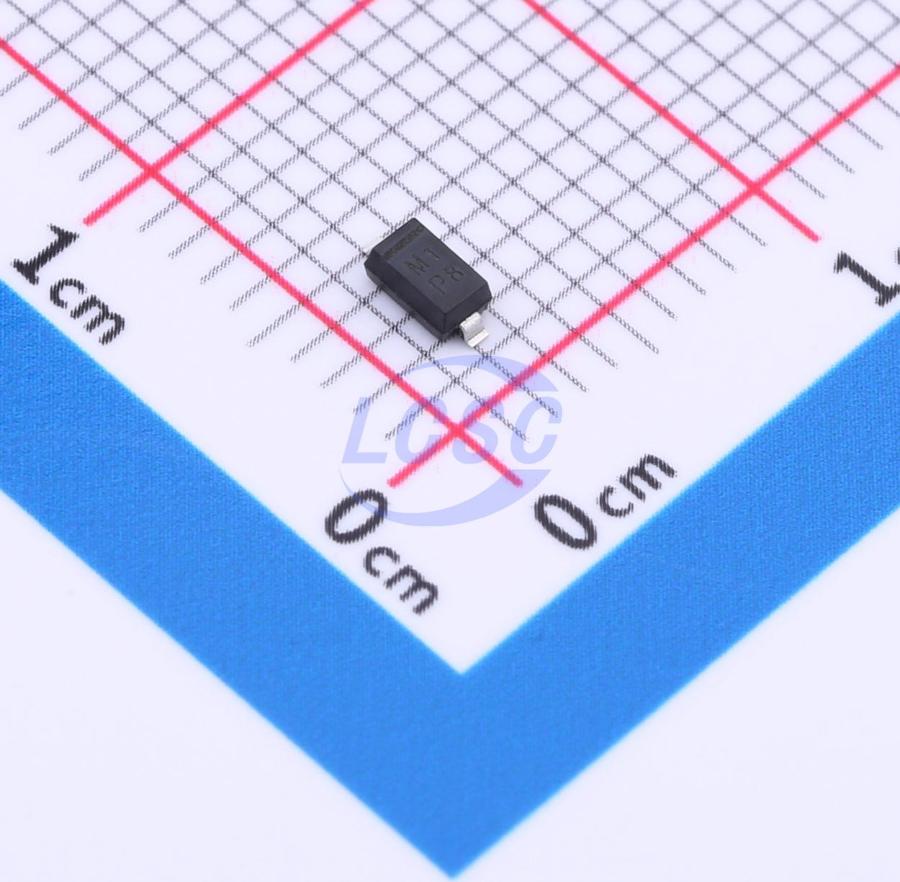

MMSZ5256C-E3-08
Zener Diode Independent 30V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 30V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- MMSZ5256C-E3-08
- Store part #
- C3734722
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,295 in stock
#C3734722
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.13 | ₹90.65 |
| 50+ | ₹14.50 | ₹725.00 |
| 150+ | ₹12.69 | ₹1,903.50 |
| 500+ | ₹11.34 | ₹5,670.00 |
| 3,000+ | ₹10.24 | ₹30,720.00 |
| 6,000+ | ₹9.70 | ₹58,200.00 |
5 × ₹18.13
₹90.65
excl. GST
₹106.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5256C-E3-08
₹90.65 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@23V
- Impedance(Zzt)
- 49Ω
- Zener Voltage(Nom)
- 30V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Key features
- Silicon planar Zener diodes Standard Zener voltage tolerance is ± 5% with a "B" suffix (e.g.: MMSZ52259), suffix "C" is ± 2% tolerance
- AEC - Q101 qualified available ESD capability according to AEC - Q101: Human body model >8kV Machine model >800V
- Base P/N - E3 - RoHS - compliant, commercial grade Base P/N - HE3_A - RoHS - compliant, AEC - Q101 qualified
