MMSZ5258CT1G

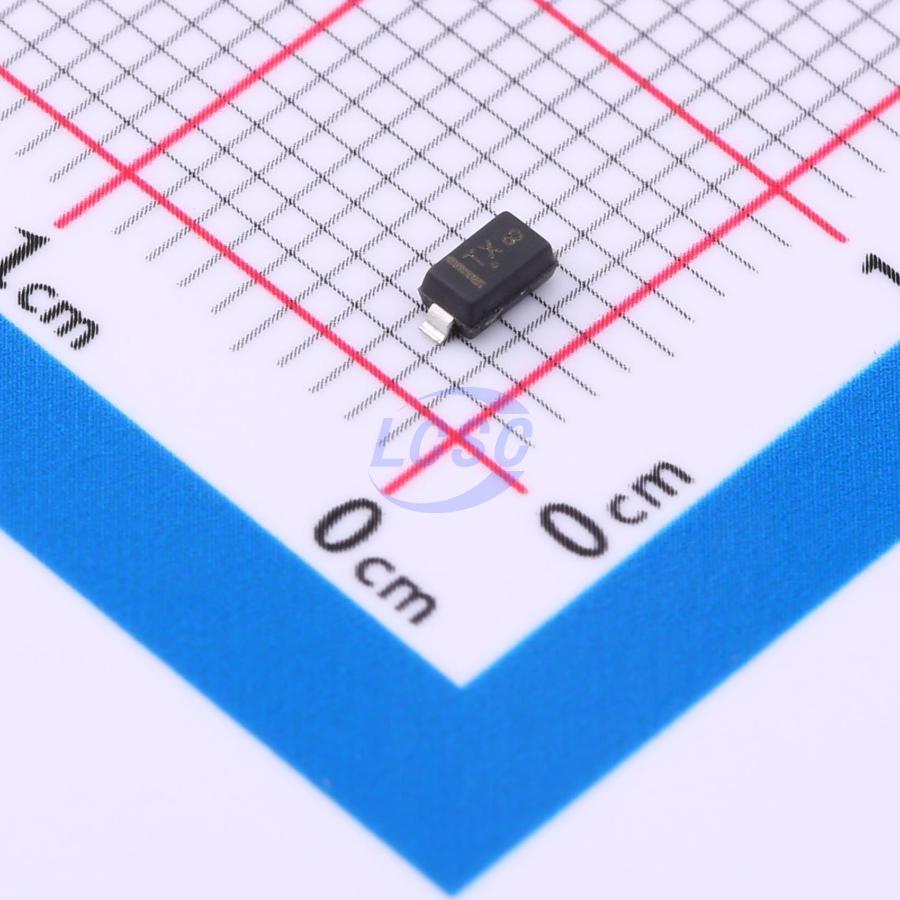

Zener Diode Independent 36V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 36V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ5258CT1G
- Store part #
- C891737
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
225 in stock
#C891737
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.90 | ₹159.50 |
| 50+ | ₹25.38 | ₹1,269.00 |
| 150+ | ₹22.58 | ₹3,387.00 |
| 500+ | ₹19.10 | ₹9,550.00 |
| 3,000+ | ₹17.56 | ₹52,680.00 |
| 6,000+ | ₹16.63 | ₹99,780.00 |
5 × ₹31.90
₹159.50
excl. GST
₹188.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5258CT1G
₹159.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@27V
- Impedance(Zzt)
- 70Ω
- Zener Voltage(Range)
- 35.28V~36.72V
- Zener Voltage(Nom)
- 36V
- Impedance(Zzk)
- 700Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD - 123 package. These devices provide a convenient alternative to the leadless 34 - package style. Zener voltage in this series are specified with device junction in thermal equilibrium.
Key features
- 500 mW Rating on FR - 4 or FR - 5 Board
- Wide Zener Reverse Voltage Range - 2.4 V to 110 V @ Thermal Equilibrium
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- General Purpose, Medium Current
- ESD Rating of Class 3 (>16 kV per Human Body Model)
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
- These are Pb - Free Devices
