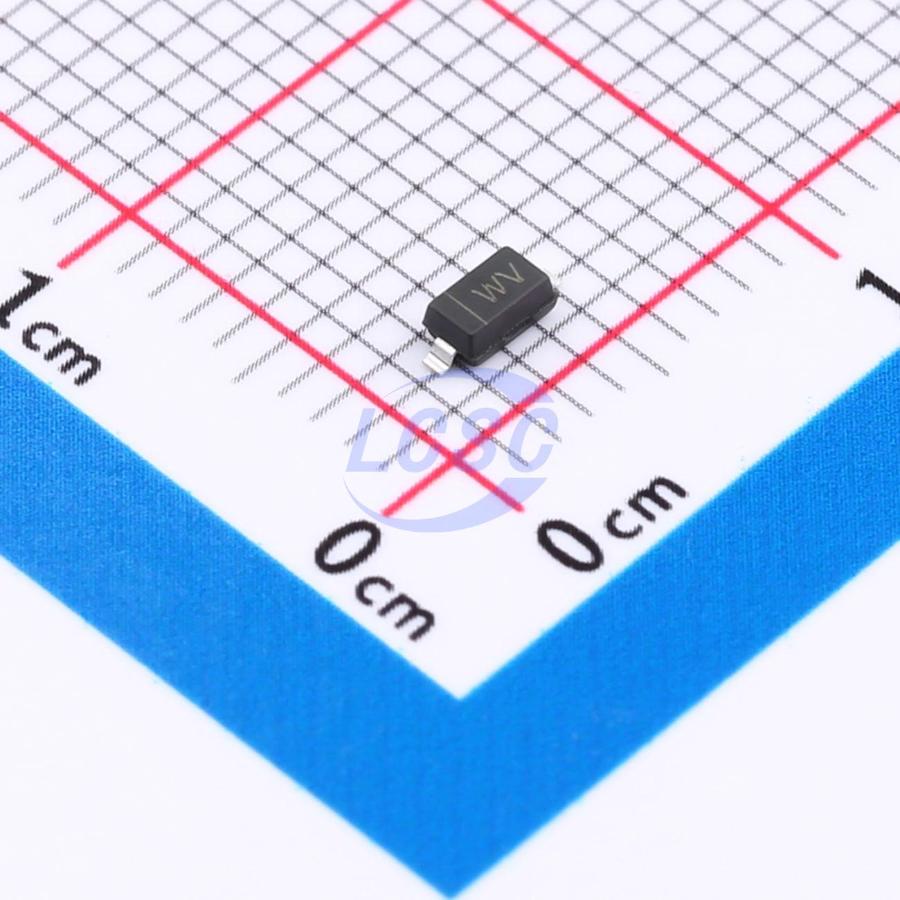

MMSZ5261BT1G-TP
Zener Diode 47V 500mW Surface Mount SOD-123
SOD-123RoHSActive
DIODE ZENER 47V 500mW SOD-123
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MMSZ5261BT1G-TP
- Store part #
- C46472957
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,400 in stock
#C46472957
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.18 | ₹109.00 |
| 500+ | ₹1.71 | ₹855.00 |
| 3,000+ | ₹1.44 | ₹4,320.00 |
| 6,000+ | ₹1.27 | ₹7,620.00 |
| 24,000+ | ₹1.14 | ₹27,360.00 |
| 51,000+ | ₹1.06 | ₹54,060.00 |
50 × ₹2.18
₹109.00
excl. GST
₹128.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5261BT1G-TP
₹109.00 for 50 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@36V
- Impedance(Zzt)
- 105Ω
- Zener Voltage(Range)
- 44.65V~49.35V
- Zener Voltage(Nom)
- 47V
- Impedance(Zzk)
- 1kΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.034 g
Overview
Applications
- General voltage regulation
- Mobile and handheld systems
- Home appliances
- Industrial automation
- Communications
Key features
- Low Zener impedance
- 500mW power dissipation
- High stability and reliability
- Halogen-free and RoHS compliant
- SOD123 SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ47T1G-TP#C46473001TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,650 | ₹2.26 · 2,650 in stock | View |
 | TPZ47VC-123#C46472906TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,450 | ₹2.67 · 2,450 in stock | View |
 | BZT52C47#C46472930TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,200 | ₹2.18 · 2,200 in stock | View |
| MMSZ5262BT1G-TP#C46472958TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | On request | ₹2.63 · 0 in stock | View | |
| TPZ51VC-123#C46472907TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | On request | ₹3.10 · 0 in stock | View | |
