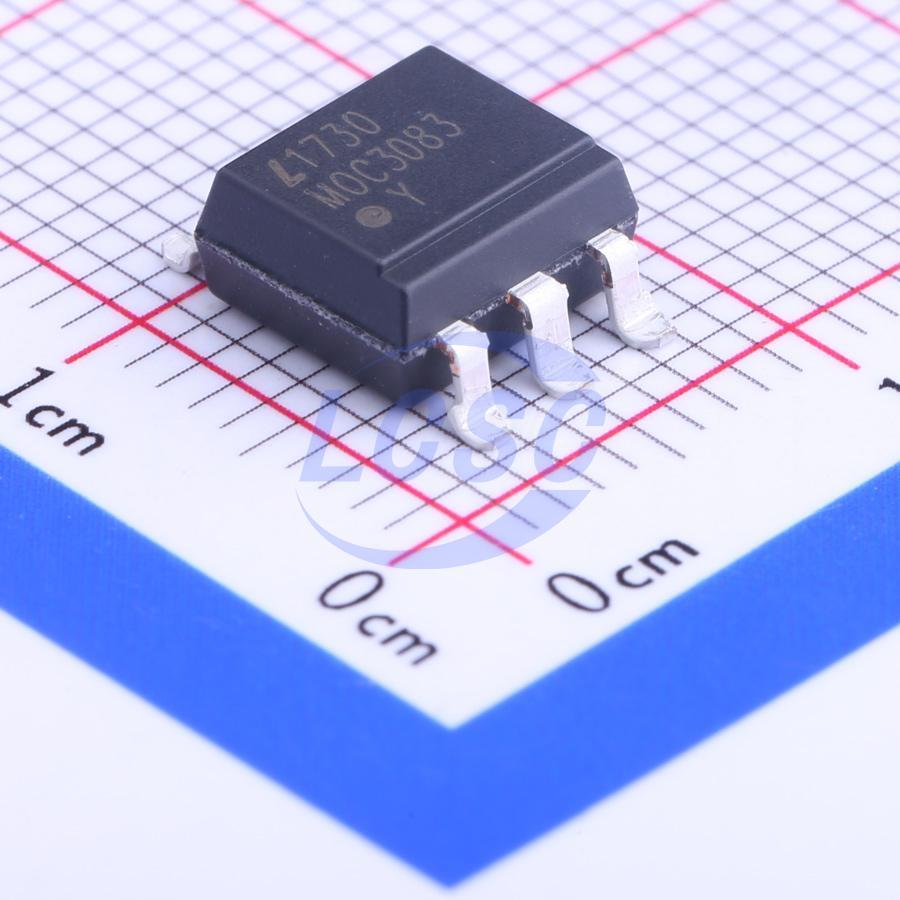

MOC3083S-TA1
1000V/us 100mA 800V 20mA 1.4V SMD-6P Triac, SCR Output Optoisolators RoHS
PopularSMD-6PROHS3 CompliantActive
Photocoupler
- Manufacturer
- LITEON
- Manufacturer part #
- MOC3083S-TA1
- Store part #
- C115474
- Package / case
- SMD-6P
- Category
- Triac, SCR Output Optoisolators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53,965 in stock
#C115474
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.90 | ₹194.50 |
| 50+ | ₹30.96 | ₹1,548.00 |
| 150+ | ₹27.56 | ₹4,134.00 |
| 1,000+ | ₹22.01 | ₹22,010.00 |
| 2,000+ | ₹20.12 | ₹40,240.00 |
| 5,000+ | ₹19.00 | ₹95,000.00 |
5 × ₹38.90
₹194.50
excl. GST
₹229.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MOC3083S-TA1
₹194.50 for 5 + GST
Specifications
- Number of Channels
- 1
- Power Dissipation
- 250mW
- Static dv/dt
- 1000V/us
- Output Current(It(rms))
- 100mA
- Load Voltage
- 800V
- Features
- Zero-crossing trigger
- Holding Current (Ih)
- 0.4mA
- Isolation Voltage(Vrms)
- 5kV
- Operating Temperature
- -40℃~+110℃
- Forward Current
- 20mA
- Current - Surge(Itsm)
- 1A
- Output Type
- TRIAC
- Voltage - Forward(Vf)
- 1.4V
- Number of terminals
- 6
- Zero Crossing Circuit
- Yes
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.408 g
Overview
Applications
- AC Motor Drives
- AC Motor Starters
- E.M. Contactors
- Lighting Controls
- Solenoid/Valve Controls
- Solid State Relays
- Static Power Switches
- Temperature Controls
Key features
- Isolation voltage between input and output Viso: 5,000Vrms
- 6pin DIP zero-cross optoisolators triac driver output
- High repetitive peak off-state voltage VDRM: Min. 800V
- High critical rate of rise of off-state voltage (dV/dt: MIN. 1000V/μs)
- Dual-in-line package: MOC3081 / MOC3082 / MOC3083
- Wide lead spacing package: MOC3081M / MOC3082M / MOC3083M
- Surface mounting package: MOC3081S / MOC3082S / MOC3083S
- Tape and reel packaging: MOC3081S-TA1 / MOC3082S-TA1 / MOC3083S-TA1
- Safety approval
- UL 1577
- cUL CA5A
- VDE DIN EN60747-5-5 (VDE 0884-5)
- RoHS Compliance
- All materials be used in device are followed EU RoHS directive (No.2002/95/EC).
- MSL class1
