VISHAYDatasheet (PDF)

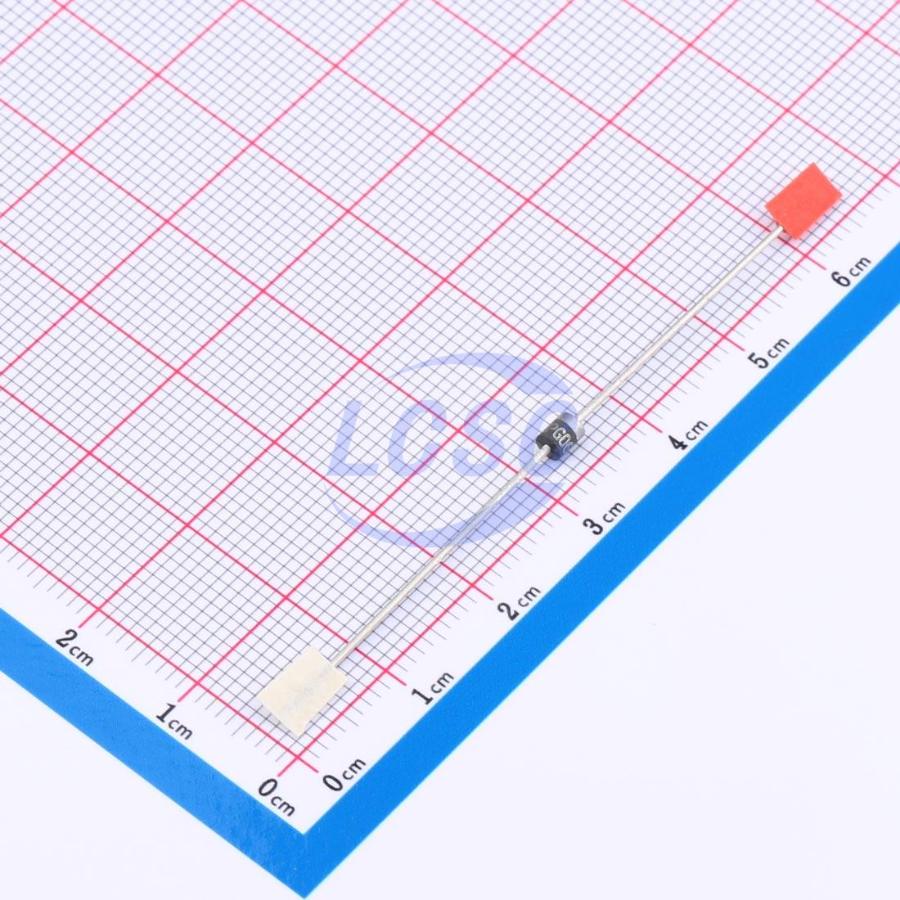

MPG06GHE3_A/73
Diode 400V 1A Through Hole MPG06
MPG06ROHS3 CompliantActive
DIODE STANDARD 400V 1A MPG06
- Manufacturer
- VISHAY
- Manufacturer part #
- MPG06GHE3_A/73
- Store part #
- C5377598
- Package / case
- MPG06
- Category
- Single Diodes
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,495 in stock
#C5377598
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.36 | ₹146.80 |
| 50+ | ₹25.43 | ₹1,271.50 |
| 150+ | ₹23.75 | ₹3,562.50 |
| 500+ | ₹21.66 | ₹10,830.00 |
| 3,000+ | ₹20.73 | ₹62,190.00 |
| 6,000+ | ₹20.16 | ₹1,20,960.00 |
5 × ₹29.36
₹146.80
excl. GST
₹173.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per box
MPG06GHE3_A/73
₹146.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Voltage - Forward(Vf@If)
- 1.1V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 40A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 3,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.281 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application.
Key features
- Glass passivated chip junction
- Low forward voltage drop
- Low leakage current, typical IR less than 0.1 μA
- High forward surge capability
- Solder dip 275 ℃ max. 10 s, per JESD 22 - B106
- AEC - Q101 qualified
