TDKDatasheet (PDF)

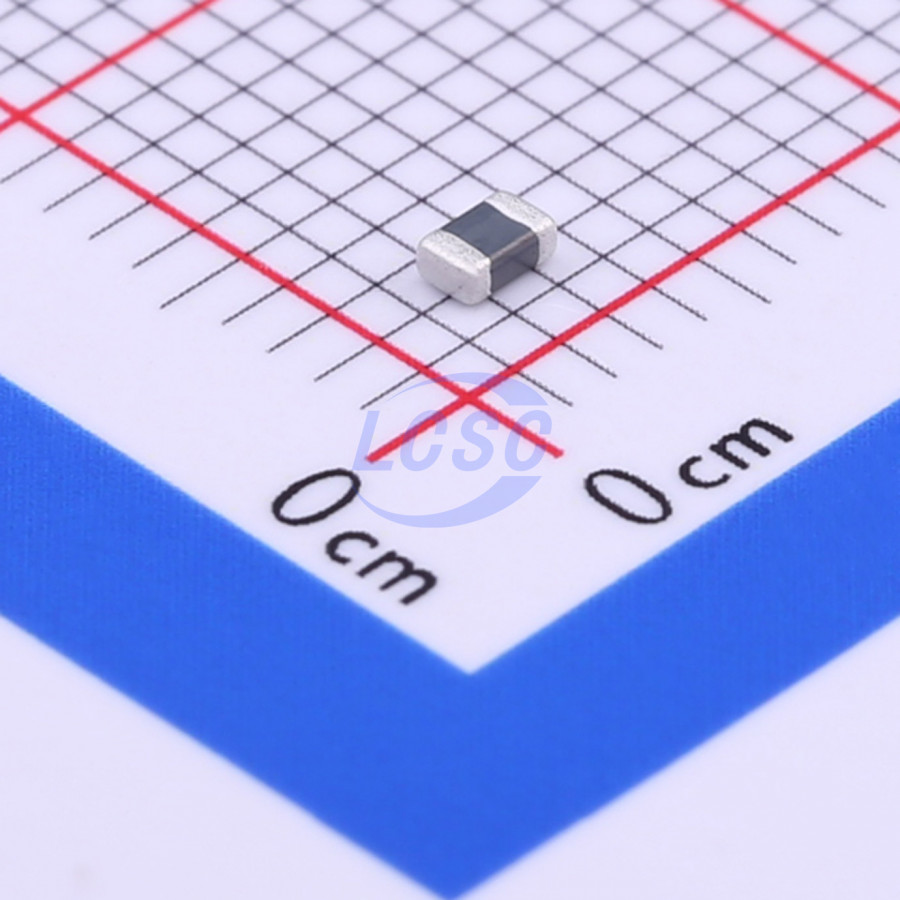

MPZ2012S101AT000
100Ω@100MHz 1 Line Ferrite Bead 0805 4A 20mΩ
Popular0805ROHS3 CompliantActive
FERRITE BEAD 100Ω 0805 1LN
- Manufacturer
- TDK
- Manufacturer part #
- MPZ2012S101AT000
- Store part #
- C15957
- Package / case
- 0805
- Category
- Ferrite Beads and Chips
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,11,260 in stock
#C15957
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.63 | ₹36.30 |
| 100+ | ₹2.94 | ₹294.00 |
| 300+ | ₹2.57 | ₹771.00 |
| 1,000+ | ₹2.34 | ₹2,340.00 |
| 4,000+ | ₹2.14 | ₹8,560.00 |
| 8,000+ | ₹2.04 | ₹16,320.00 |
10 × ₹3.63
₹36.30
excl. GST
₹42.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MPZ2012S101AT000
₹36.30 for 10 + GST
Specifications
- DC Resistance(DCR)
- 20mΩ
- Operating Temperature
- -55℃~+125℃
- Number of Lines
- 1
- Tolerance
- ±25%
- Current Rating
- 4A
- Impedance @ Frequency
- 100Ω@100MHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
Applications
- Noise removal for mobile devices such as smartphones and tablet terminals, and various modules.
- Noise removal for PCs and recorders, household appliances such as STBs, smart grids, and industrial equipment.
Key features
- Noise reduction solution for power line.
- Compared to the MMZ series, he low direct current resistance for compatibility with large currents, optimal for low power consumption.
- Performs well even in signal lines where low direct current resistance is required.
- Operating temperature range: -55 to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MPZ2012S101ATD25#C307776TDK · 0805 | TDK | 0805 | 70,310 | ₹4.97 · 70,310 in stock | View |
 | UPB201209T-101Y-N#C285591Chilisin · 0805 | Chilisin | 0805 | 3,960 | ₹4.74 · 3,960 in stock | View |
 | CBM201209U101T#C394432FH · 0805 | FH | 0805 | 7,400 | ₹2.46 · 7,400 in stock | View |
 | UPB201209T-121Y-N#C280699Chilisin · 0805 | Chilisin | 0805 | 2,980 | ₹4.70 · 2,980 in stock | View |
 | XRCB2012U101-4R0TF#C41384127XR · 0805 | XR | 0805 | 4,000 | ₹2.47 · 4,000 in stock | View |
