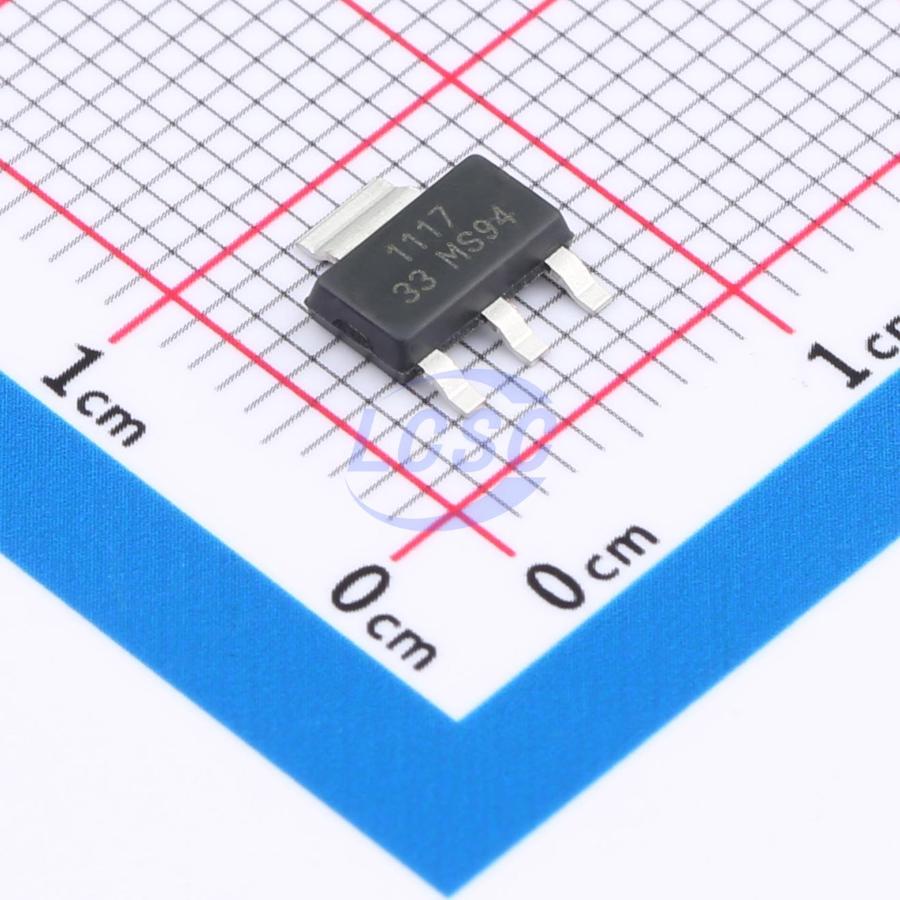

MS1117-3.3V
Linear Voltage Regulator IC Fixed 1A SOT-223
SOT-223ROHS CompliantActive
Low Dropout (LDO) Three-Terminal Voltage Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MS1117-3.3V
- Store part #
- C47020980
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,690 in stock
#C47020980
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.50 | ₹75.00 |
| 100+ | ₹5.94 | ₹594.00 |
| 300+ | ₹5.16 | ₹1,548.00 |
| 2,500+ | ₹4.58 | ₹11,450.00 |
| 5,000+ | ₹4.11 | ₹20,550.00 |
| 10,000+ | ₹3.88 | ₹38,800.00 |
10 × ₹7.50
₹75.00
excl. GST
₹88.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MS1117-3.3V
₹75.00 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.236 g
Overview
The MS1117-xxx series are low-dropout linear regulators with a 1.3V dropout voltage at 1A load current. Standby current is extremely low, with a typical value of 2mA. In addition to fixed output voltage versions (1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), the MS1117-xxx also offers an adjustable output version that provides 1.25V to 12V output voltage using only two external resistors. The series features thermal shutdown to ensure stability of the IC and power system, and employs trimming technology to guarantee output voltage accuracy within 2%. Other accuracy grades (e.g., 1%) are available upon request. The MS1117-xxx is offered in SOT-223, TO-252, and SOT89 power packages.
Applications
- Computer motherboard and graphics card power management
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
- Switching power supply secondary-stage voltage regulation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1117S-3.3(MS)#C20538886MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 5,820 | ₹15.07 · 5,820 in stock | View |
 | AZ1117H-3.3TRE1-MS#C22462599MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 3,605 | ₹11.83 · 3,605 in stock | View |
 | AMS1117-3.3V#C5120765MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 2,94,100 | ₹7.00 · 2,94,100 in stock | View |
 | LD1117S33TR(MS)#C20538890MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 1,300 | ₹14.74 · 1,300 in stock | View |
 | LD1117-3.3(MS)#C20538888MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 790 | ₹6.60 · 790 in stock | View |
