MSKSEMIDatasheet (PDF)

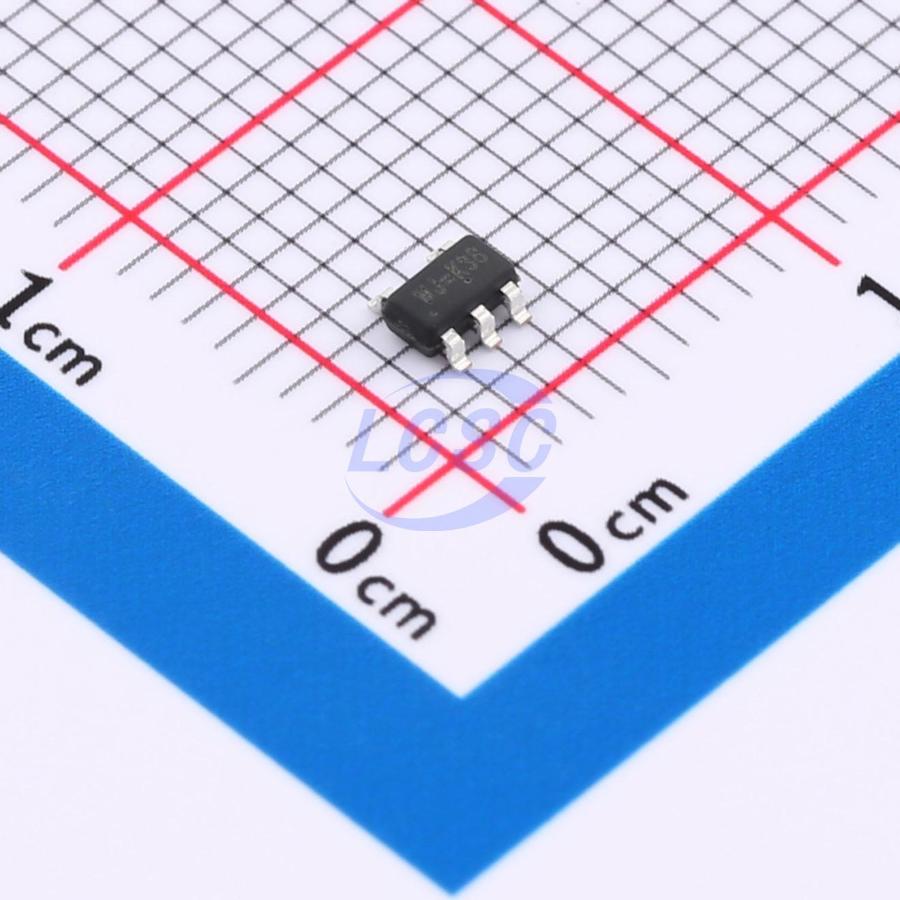

MS5108E23E-33
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5RoHSActive
CMOS step-down voltage regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MS5108E23E-33
- Store part #
- C30197551
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,410 in stock
#C30197551
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.72 | ₹97.20 |
| 100+ | ₹7.69 | ₹769.00 |
| 300+ | ₹6.67 | ₹2,001.00 |
| 1,000+ | ₹5.91 | ₹5,910.00 |
| 5,000+ | ₹5.08 | ₹25,400.00 |
| 10,000+ | ₹4.78 | ₹47,800.00 |
10 × ₹9.72
₹97.20
excl. GST
₹114.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS5108E23E-33
₹97.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The MS5108E23E-XX series are high ripple rejection, low quiescent current, low dropout CMOS step-down voltage regulators with overcurrent and short-circuit protection. These devices feature very low quiescent current (80 μA Typ.) and are capable of supplying 500 mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and low quiescent current, these devices are particularly suited for battery-powered products where extended battery life is desired, such as computers, consumer products, and industrial equipment.
Applications
- CDMA/GSM mobile phones
- PDAs/MP3
- WLAN and Bluetooth devices
- Cordless telephones
- Battery-powered systems
Key features
- Output range: 1.2V - 3.3V, 500mA output current
- High PSRR: 75dB @ 1kHz
- Ultra-low quiescent current: 80uA (typical)
- Less than 1μA in shutdown mode
- Operating temperature range: -40°C to +85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT9013-33GB-MS#C7434207MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 1,36,020 | ₹7.79 · 1,36,020 in stock | View |
 | SPX3819M5-L-3-3(MS)#C20538874MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 7,030 | ₹15.02 · 7,030 in stock | View |
 | AP2204K-3.3TRG1(MS)#C20627184MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,710 | ₹12.67 · 2,710 in stock | View |
 | SPX5205M5-L-3-3/TR(MS)#C20627206MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,265 | ₹16.84 · 2,265 in stock | View |
 | MIC5219-3.3YM5-MS#C30197485MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,820 | ₹26.50 · 2,820 in stock | View |
