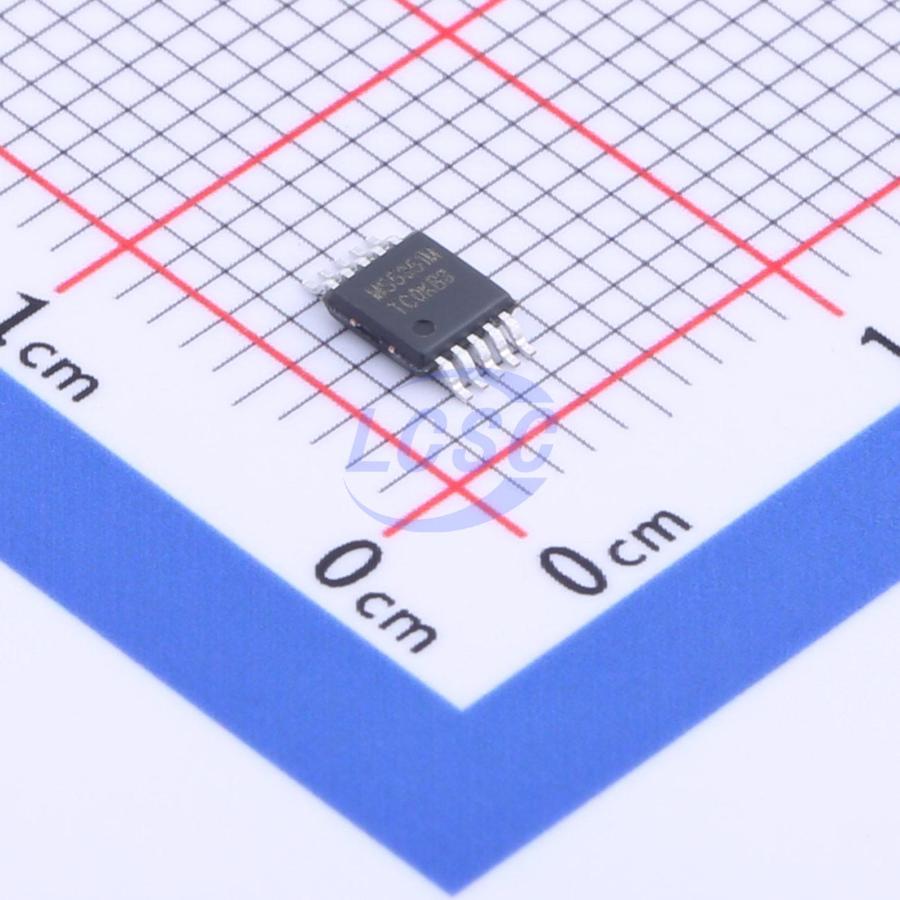

MS5351M
2.7V~3.3V 200MHz I2C HCSL 3 MSOP-10 Clock Generators, PLLs, Frequency Synthesizers RoHS
MSOP-10ROHS CompliantActive
Universal Frequency Synthesizer
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS5351M
- Store part #
- C1509083
- Package / case
- MSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,535 in stock
#C1509083
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.55 | ₹120.55 |
| 10+ | ₹99.91 | ₹999.10 |
| 30+ | ₹89.70 | ₹2,691.00 |
| 100+ | ₹79.29 | ₹7,929.00 |
| 500+ | ₹62.13 | ₹31,065.00 |
| 1,000+ | ₹58.86 | ₹58,860.00 |
1 × ₹120.55
₹120.55
excl. GST
₹142.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS5351M
₹120.55 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Clock/Oscillator
- External
- Voltage - Supply
- 2.7V~3.3V
- Output Frequency(Max)
- 200MHz
- Phase Offset
- Support
- Period Jitter, Peak-to-Peak
- 60ps;60ps
- Interface
- I2C
- Output Level
- HCSL
- Number of Outputs
- 3
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
MS5351/MS5351M is a general-purpose frequency synthesizer IC configured via I2C, capable of generating any clock output from 2.5kHz to 200MHz. It can replace crystals, crystal oscillators, PLLs, and output buffers.
Applications
- HDTV, set-top boxes
- Printers, scanners, projectors
- Handheld devices
- Networking/communications
- Servers
- Quartz crystal/oscillator/PLL replacement
Key features
- 3-channel output capable
- 0 ppm clock output frequency error from 2.5kHz to 200MHz
- High resolution, low output jitter
- Compatible with 25MHz or 27MHz quartz crystal
- Adjustable output clock phase
- Adjustable output delay
- Controllable output clock rise/fall time
- Glitch-free frequency switching
- Independent power supply pins
- Internal core supply VDD: 3.0V
- Output stage supply VDDO: 1.8V or 2.5V or 3.3V
- Internal high PSRR
- Compatible with HCSL and PCIE Gen 1
