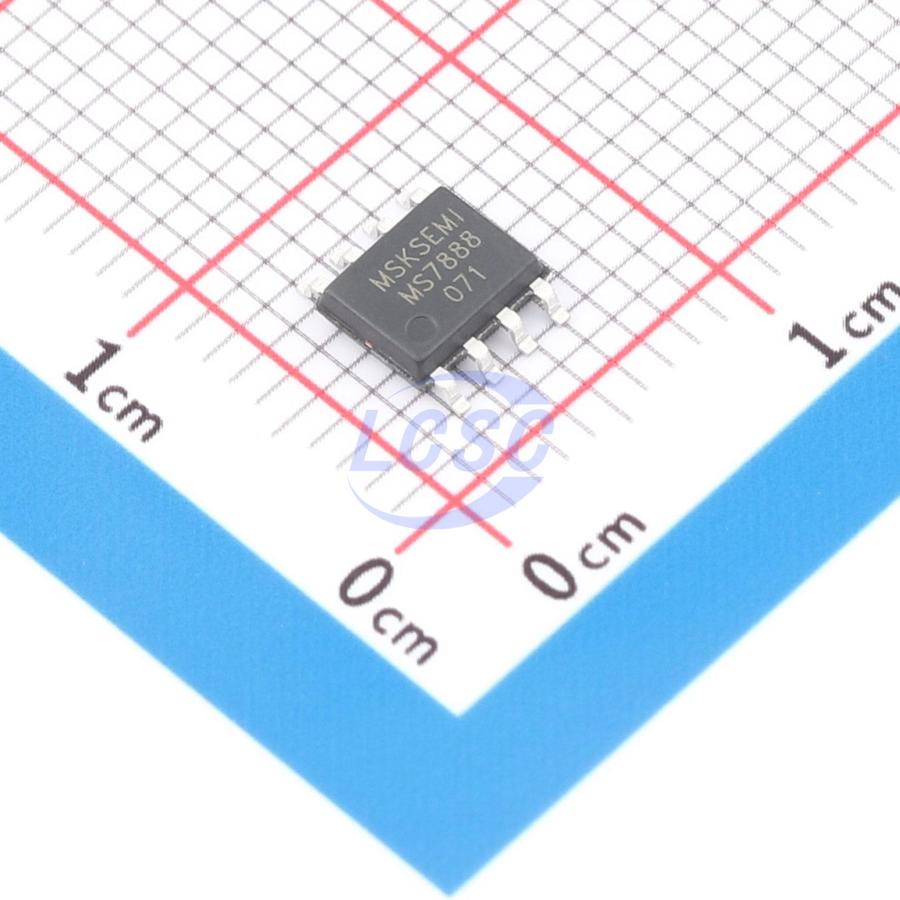

MSKSEMIDatasheet (PDF)
MS7888
3V~18V SOP-8 Motor Drivers, Controllers
SOP-8RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MS7888
- Store part #
- C50385416
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,981 in stock
#C50385416
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.53 | ₹73.53 |
| 10+ | ₹59.39 | ₹593.90 |
| 30+ | ₹52.43 | ₹1,572.90 |
| 100+ | ₹45.25 | ₹4,525.00 |
| 500+ | ₹41.12 | ₹20,560.00 |
| 1,000+ | ₹38.95 | ₹38,950.00 |
1 × ₹73.53
₹73.53
excl. GST
₹86.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MS7888
₹73.53 for 1 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 3V~18V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 1mA
- Output Current
- 5A
- RDS(on)
- 58mΩ;71mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.156 g
Overview
MS7888 is a DC bidirectional motor driver IC suitable for toy motor drive, automatic valve motor drive, electromagnetic door lock drive, and similar applications. The device features excellent noise immunity, ultra-low standby current, and low output on-resistance. Internally integrated diodes provide freewheeling protection against reverse kickback current from inductive loads. The device is available in an SOP-8 package, is RoHS compliant, and features a 100% lead-free lead frame.
Applications
- Electronic locks
- Toys
- Wireless charging
- Robotics
Key features
- Single-channel brushed DC motor driver
- Ultra-low standby current, less than 1uA
- Low RDS(ON) resistance
- Maximum continuous output current 5.0A
- Operating voltage range: 3.0V ~ 18V
- Emergency stop function
- Over-temperature protection
- Overcurrent limiting and short-circuit protection
- Package: SOP-8
