Hangzhou Ruimeng TechDatasheet (PDF)

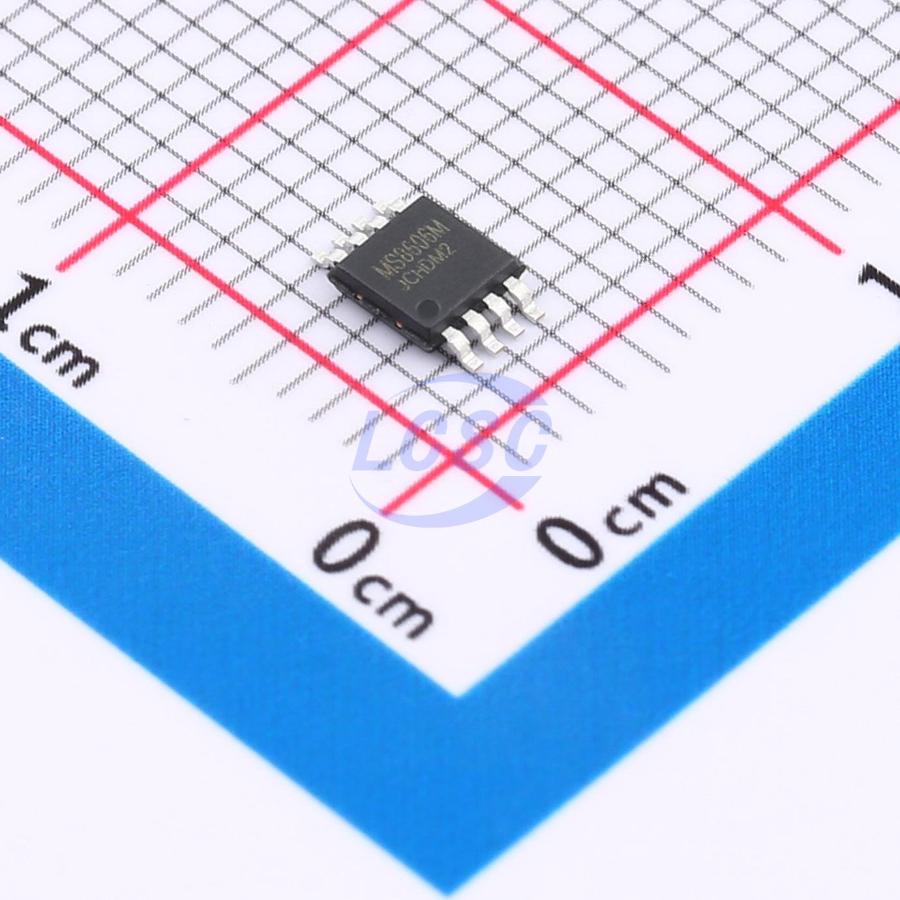

MS8606M
MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS CompliantActive
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS8606M
- Store part #
- C5363948
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,362 in stock
#C5363948
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.30 | ₹135.30 |
| 10+ | ₹111.89 | ₹1,118.90 |
| 30+ | ₹99.09 | ₹2,972.70 |
| 100+ | ₹84.57 | ₹8,457.00 |
| 500+ | ₹78.06 | ₹39,030.00 |
| 1,000+ | ₹75.24 | ₹75,240.00 |
1 × ₹135.30
₹135.30
excl. GST
₹159.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS8606M
₹135.30 for 1 + GST
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.056 g
Overview
MS8605 and MS8606 are single-channel and dual-channel rail-to-rail input/output single-supply op-amps. They feature low offset voltage, low input voltage and current noise, and wide signal bandwidth. The combination of low offset, low noise, low input bias current, and wide bandwidth makes the MS860X op-amps suitable for a wide range of applications. Their excellent performance enables use in filters, integrators, photoelectric amplifiers, and high-impedance sensors; audio and AC applications benefit from their wide bandwidth and low distortion characteristics. The MS860X operates over a temperature range of -40°C ~ 125°C.
Applications
- Photoelectric amplification
- Multi-stage filter
- Sensor
- Audio
- Barcode scanner
Key features
- Low offset voltage: 65μV typical, 300μV maximum
- Low input bias current
- Single supply: 2.7V ~ 5.5V
- Low noise: 8nV/√Hz
- High open-loop gain: 120dB
- Wide bandwidth: 10MHz
- Unity-gain stable
