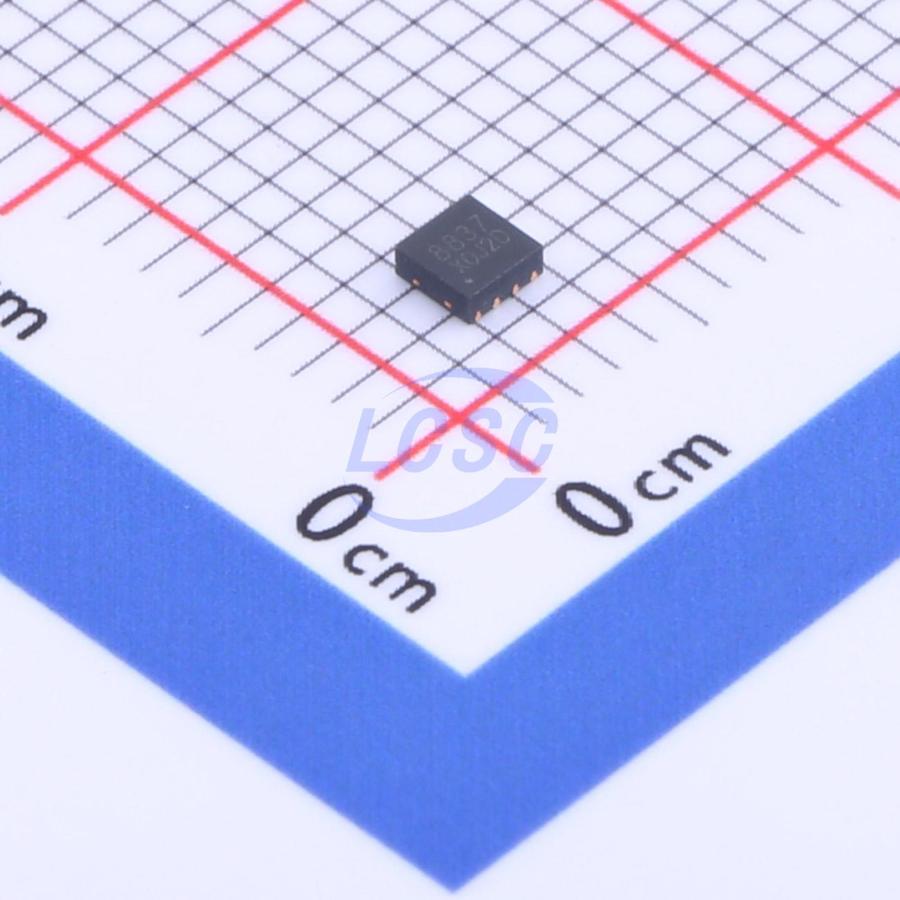

MS8837
2V~7V TDFN-8L-EP(2x2) Motor Drivers, Controllers RoHS
- Manufacturer
- Hangzhou Ruimeng Tech
- Manufacturer part #
- MS8837
- Store part #
- C1509051
- Package / case
- TDFN-8L-EP(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,475 in stock
#C1509051
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.43 | ₹192.15 |
| 50+ | ₹30.77 | ₹1,538.50 |
| 150+ | ₹27.49 | ₹4,123.50 |
| 500+ | ₹23.39 | ₹11,695.00 |
| 3,000+ | ₹19.25 | ₹57,750.00 |
| 6,000+ | ₹18.15 | ₹1,08,900.00 |
5 × ₹38.43
₹192.15
excl. GST
₹226.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MS8837
₹192.15 for 5 + GST
Specifications
- Features
- Active braking function
- Technology
- Yes
- Voltage - Supply
- 2V~7V
- Operating Temperature
- -40℃~+85℃
- Output Current
- 1A
- Peak Current
- 1.2A
- RDS(on)
- 520mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The MS8837 is a DC motor driver IC that provides an integrated motor drive solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The output driver stage consists of N-channel DMOS transistors with a built-in charge pump to generate the required gate voltage. The MS8837 delivers output current up to 1A, operating with a motor supply voltage of 1.8~12V and a logic supply voltage of 2V~7V. The MS8837 features a PWM (IN/IN) input interface compatible with industry-standard devices, along with protection functions including undervoltage protection and over-temperature protection.
Applications
- Camera digital single-lens reflex (DSLR) lenses
- Consumer products
- Toy robotics
- Medical devices
Key features
- H-bridge motor driver
- Drives DC motors or other loads
- Low on-resistance (HS+LS) 520mΩ
- 1A drive current
- Independent power supplies
- Motor VM: 1.8~12V
- Logic VCC: 2~7V
- Interface type
- PWM (IN1/IN2) input mode
- Over-temperature and under-voltage protection
- Low-current sleep mode
