VISHAYDatasheet (PDF)

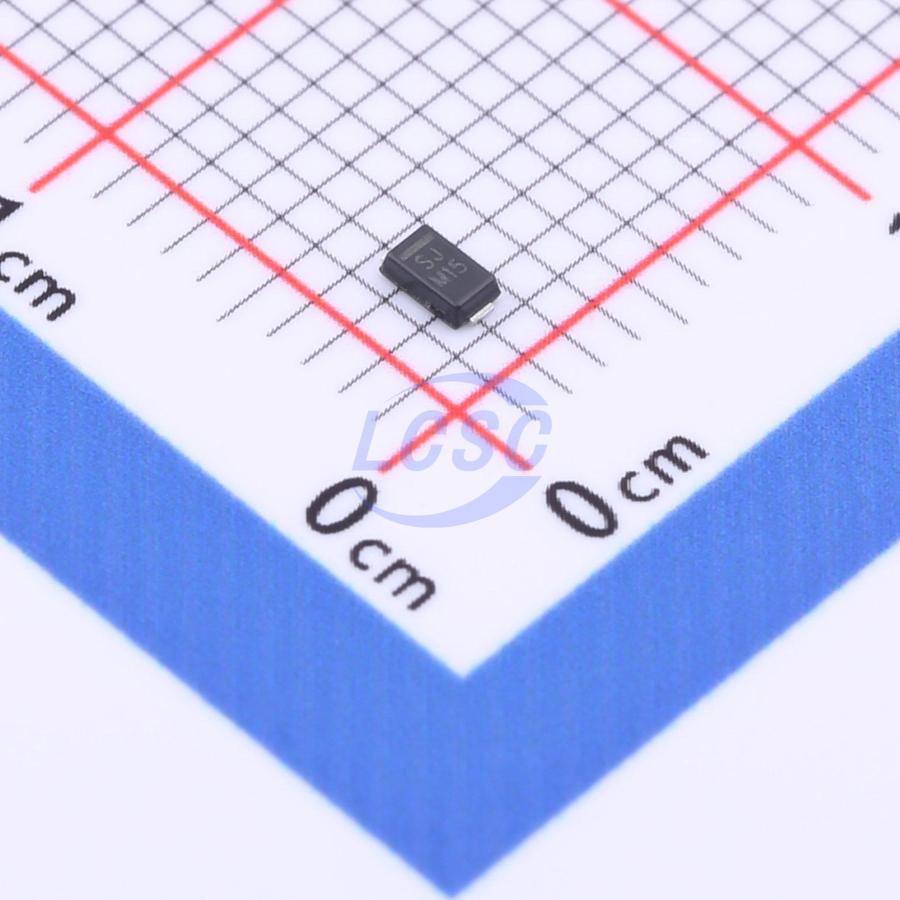

MSE1PJHM3/89A
nan
DO-219ADROHS3 CompliantActive
600VWM DO-219AD
- Manufacturer
- VISHAY
- Manufacturer part #
- MSE1PJHM3/89A
- Store part #
- C968651
- Package / case
- DO-219AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,725 in stock
#C968651
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.23 | ₹66.15 |
| 50+ | ₹10.60 | ₹530.00 |
| 150+ | ₹9.29 | ₹1,393.50 |
| 500+ | ₹8.31 | ₹4,155.00 |
| 2,500+ | ₹7.51 | ₹18,775.00 |
| 4,500+ | ₹7.12 | ₹32,040.00 |
5 × ₹13.23
₹66.15
excl. GST
₹78.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
MSE1PJHM3/89A
₹66.15 for 5 + GST
Specifications
- level of protection
- IEC 61000-4-2
- Junction Capacitance
- 5pF
- Operating Temperature
- -55℃~+175℃
- Number of Channels
- 1
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- type
- ESD
- Reverse Stand-Off Voltage (Vrwm)
- 600V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
Applications
- General purpose, polarity protection, and rail-to-rail protection in both consumer and automotive applications.
Key features
- Very low profile - typical height of 0.65 mm
- Ideal for automated placement
- Oxide planar chip junction
- Low forward voltage drop, low leakage current
- ESD capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/N HM3
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
