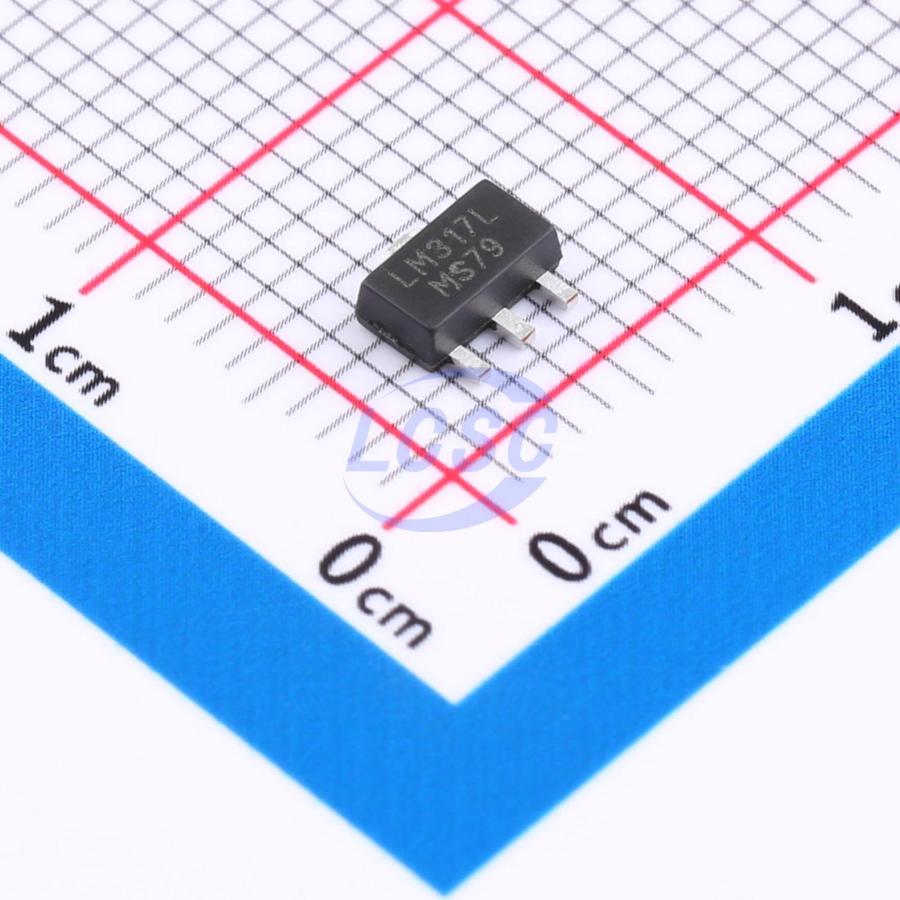

MSLM317LIPK
1.2V~37V Positive Adjustable SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
IC REG LINEAR 1.2V~37V SOT-89
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSLM317LIPK
- Store part #
- C49208512
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
940 in stock
#C49208512
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.14 | ₹190.70 |
| 50+ | ₹29.95 | ₹1,497.50 |
| 150+ | ₹26.43 | ₹3,964.50 |
| 1,000+ | ₹22.05 | ₹22,050.00 |
| 2,000+ | ₹20.11 | ₹40,220.00 |
| 5,000+ | ₹18.95 | ₹94,750.00 |
5 × ₹38.14
₹190.70
excl. GST
₹225.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MSLM317LIPK
₹190.70 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Output Configuration
- Positive
- Output Current
- 200mA
- Output Type
- Adjustable
- Features
- Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.164 g
Overview
MSLM317LIxx is a three-terminal adjustable positive voltage regulator capable of supplying over 100mA of current across an output voltage range of 1.2V to 37V. This voltage regulator is extremely easy to use, requiring only two external resistors to set the output voltage.
Key features
- Output current exceeding 100mA
- Output adjustable from 1.2V to 37V
- Internal thermal overload protection
- Internal short-circuit current limiting
- Output transistor safe operating area compensation
- Floating operation for high-voltage applications
