MSTDatasheet (PDF)

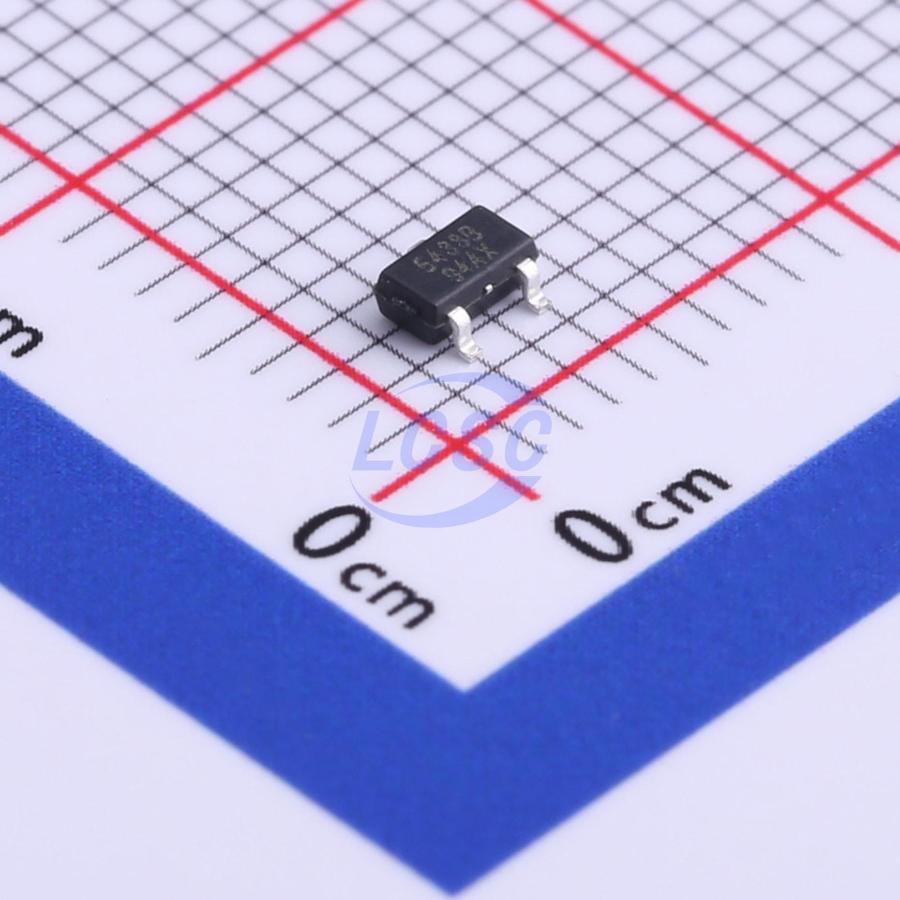

MST5433BTE
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23RoHSActive
45V/300mA/2.1μA IQ/Fast Transient Low Dropout (LDO) Linear Voltage Regulator
- Manufacturer
- MST
- Manufacturer part #
- MST5433BTE
- Store part #
- C525414
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,345 in stock
#C525414
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.06 | ₹80.30 |
| 50+ | ₹12.73 | ₹636.50 |
| 150+ | ₹11.05 | ₹1,657.50 |
| 500+ | ₹9.80 | ₹4,900.00 |
| 3,000+ | ₹8.68 | ₹26,040.00 |
| 6,000+ | ₹8.18 | ₹49,080.00 |
5 × ₹16.06
₹80.30
excl. GST
₹94.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MST5433BTE
₹80.30 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.1uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 45V
- Features
- Enable control;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The MST54XXB series is a high input voltage (45V), low quiescent current (2.1uA), low-dropout linear regulator (LDO) able to provide 300mA load current. The MST54XXB family LDO offers EN pin to enable and disable the LDO output, EN pin can take 45V input voltage. The LDO features very fast response against line voltage transient and load current transient, and ensures no overshoot voltage during the LDO start up and short circuit recovery. The device features integrated short-circuit and thermal shutdown protection. The device is available with fixed output voltages of 1.8V, 3.0V, 3.3V and 5.0V, and available in SOT23 and SOT89 packages.
Applications
- Battery-powered equipment
- Smoke detector and sensor
- Micro controller Applications
- Home Appliance
Key features
- Low Quiescent Current：2.1uA
- High Input Voltage Rating：Up to 55V
- High Output Current：350mA
- High PSRR：85dB at 1Khz
- Low Dropout Voltage： 35mV@10mA 350mV@100mA
- Fixed Output Voltages： 1.8V, 3.0V, 3.3V and 5.0V
- High-accuracy Output Voltage: ±2%
- Fast Transient Response
- Integrated Short-Circuit Protection
- Enable pin is available
- Integrated Thermal Protection
