VBsemi ElecDatasheet (PDF)

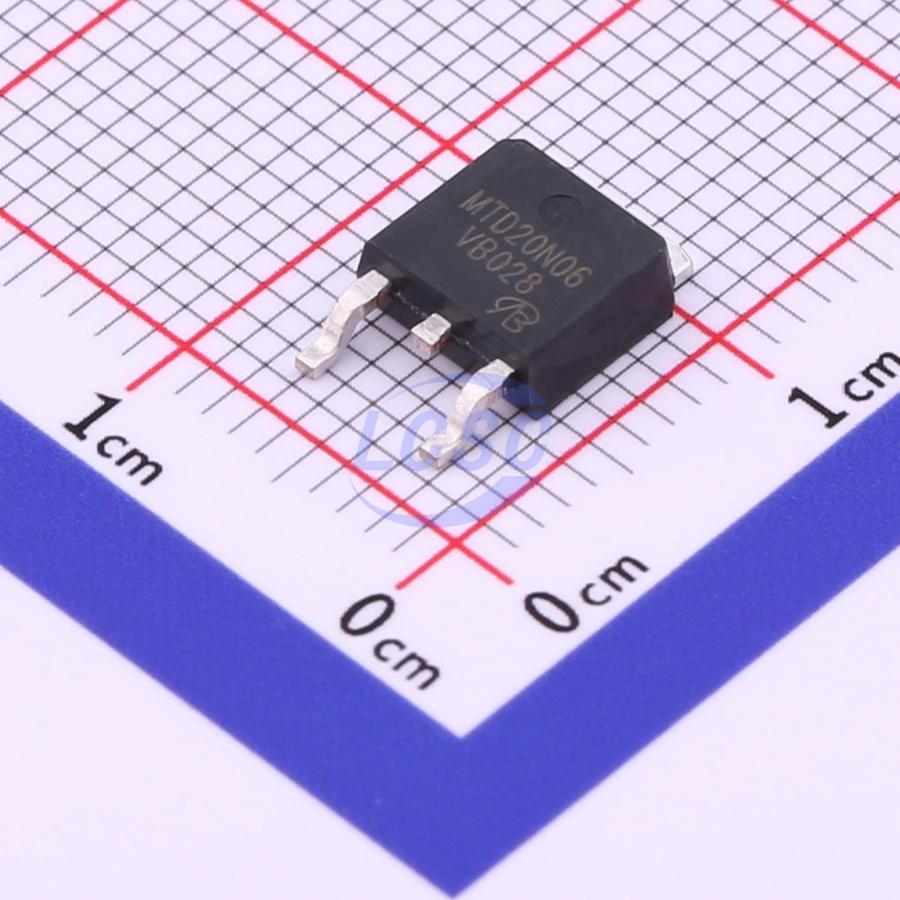

MTD20N06HDLT4G-VB
60V 45A 3W 1 N-channel TO-252 Single FETs, MOSFETs
TO-252RoHSActive
MOSFET N-CH 60V 45A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- MTD20N06HDLT4G-VB
- Store part #
- C725115
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C725115
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.02 | ₹68.02 |
| 10+ | ₹53.46 | ₹534.60 |
| 30+ | ₹47.16 | ₹1,414.80 |
| 100+ | ₹39.33 | ₹3,933.00 |
| 500+ | ₹35.87 | ₹17,935.00 |
| 1,000+ | ₹33.68 | ₹33,680.00 |
1 × ₹68.02
₹68.02
excl. GST
₹80.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MTD20N06HDLT4G-VB
₹68.02 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 60pF
- Number
- 1 N-channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.388 g
Overview
Key features
- Trench power MOSFET
- Supports junction temperature up to 175°C
- RoHS compliant
- Drain connected to heatsink
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMD20N06L-VB#C709941VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 3 | ₹70.81 · 3 in stock | View |
 | AM30N06-39D-T1-PF-VB#C7463649VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 300 | ₹71.01 · 300 in stock | View |
 | IPD15N06S2L-64-VB#C7494455VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 31 | ₹71.01 · 31 in stock | View |
 | 30N06 TO252-VB#C879188VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 18 | ₹63.87 · 18 in stock | View |
 | 30N06G-TN3-T-VB#C20417482VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹68.28 · 50 in stock | View |
