onsemiDatasheet (PDF)

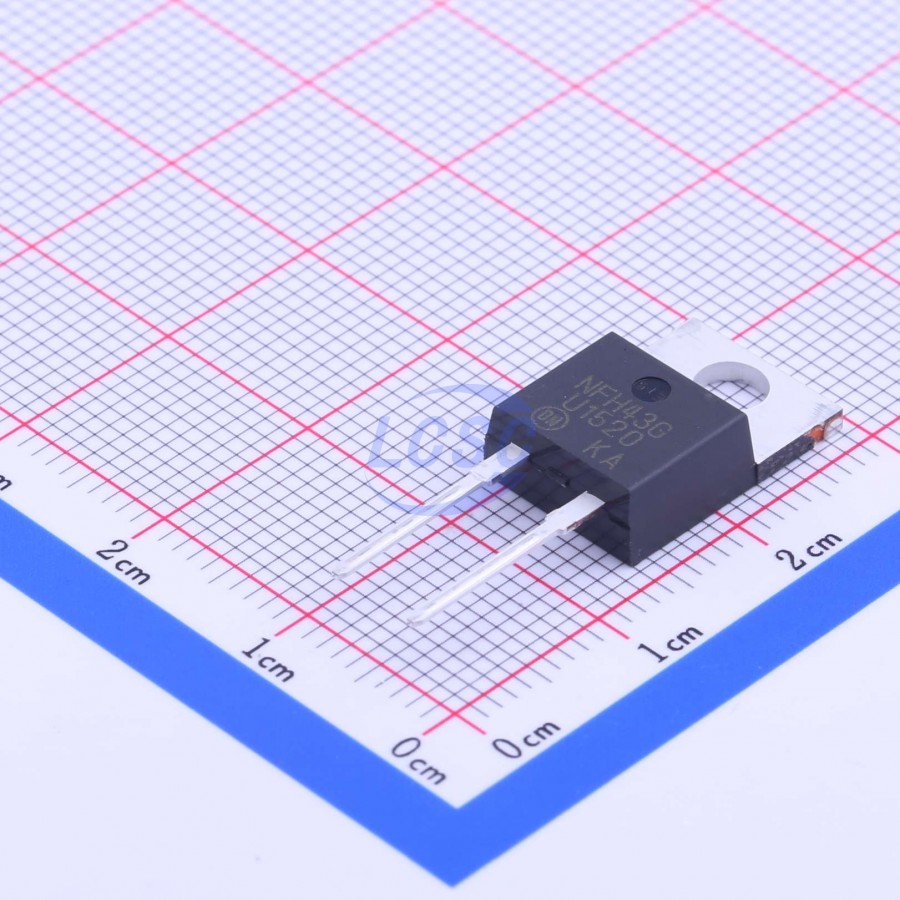

MUR1520G
35ns 1 Independent 200V 1.05V@15A 15A ITO-220AC Single Diodes RoHS
ITO-220ACROHS3 CompliantActive
Diode 200V 15A ITO-220AC
- Manufacturer
- onsemi
- Manufacturer part #
- MUR1520G
- Store part #
- C150062
- Package / case
- ITO-220AC
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,463 in stock
#C150062
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.14 | ₹129.14 |
| 10+ | ₹103.79 | ₹1,037.90 |
| 50+ | ₹91.01 | ₹4,550.50 |
| 100+ | ₹78.44 | ₹7,844.00 |
| 500+ | ₹70.86 | ₹35,430.00 |
| 1,000+ | ₹66.96 | ₹66,960.00 |
1 × ₹129.14
₹129.14
excl. GST
₹152.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MUR1520G
₹129.14 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.05V@15A
- Reverse Leakage Current (Ir)
- 10uA@200V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 15A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.04 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MUR1660FAC#C7436461YFW · TO-220FAC-2 | YFW | TO-220FAC-2 | 46 | ₹46.37 · 46 in stock | View |
 | MURF1560#C53055316R+O · ITO-220AC | R+O | ITO-220AC | 317 | ₹62.67 · 317 in stock | View |
 | MURF2020#C22369129Wild Goose · TO-220F-2L | Wild Goose | TO-220F-2L | 440 | ₹51.70 · 440 in stock | View |
 | MUR1560F#C5370515LGE · ITO-220AC | LGE | ITO-220AC | 5,130 | ₹54.08 · 5,130 in stock | View |
 | MURF2040#C22369130Wild Goose · TO-220F-2L | Wild Goose | TO-220F-2L | 144 | ₹57.50 · 144 in stock | View |
