onsemiDatasheet (PDF)

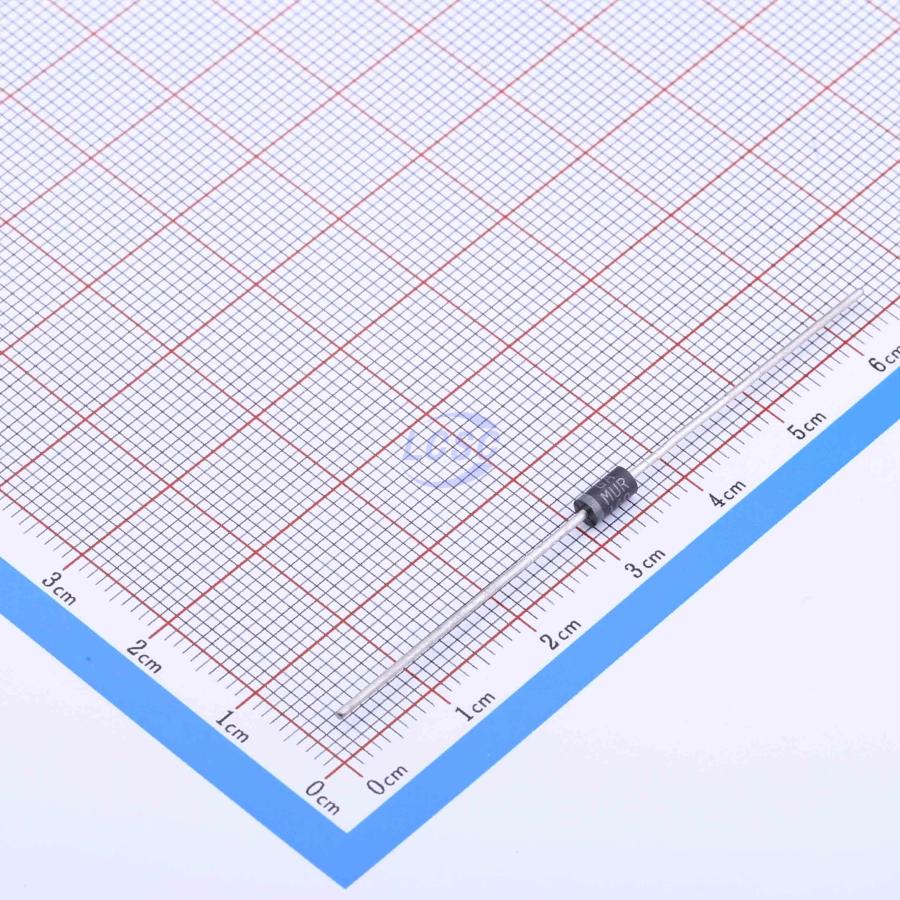

MUR160G
75ns 1 Independent 600V 1.25V@1A 1A DO-41 Single Diodes RoHS
DO-41ROHS3 CompliantActive
Diode 600V 1A DO-41
- Manufacturer
- onsemi
- Manufacturer part #
- MUR160G
- Store part #
- C85419
- Package / case
- DO-41
- Category
- Single Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
244 in stock
#C85419
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.59 | ₹54.59 |
| 10+ | ₹42.84 | ₹428.40 |
| 30+ | ₹37.84 | ₹1,135.20 |
| 100+ | ₹31.75 | ₹3,175.00 |
| 500+ | ₹28.92 | ₹14,460.00 |
| 1,000+ | ₹25.44 | ₹25,440.00 |
1 × ₹54.59
₹54.59
excl. GST
₹64.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
MUR160G
₹54.59 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 75ns
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.25V@1A
- Reverse Leakage Current (Ir)
- 5uA@600V
- Non-Repetitive Peak Forward Surge Current
- 35A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.349 g
Overview
The MUR120 series of SWITCHMODE power rectifiers are designed for use in switching power supplies, inverters and as free wheeling diodes.
Applications
- switching power supplies
- inverters
- free wheeling diodes
Key features
- Ultrafast 25, 50 and 75 Nanosecond Recovery Times
- 175℃ Operating Junction Temperature
- Low Forward Voltage
- Low Leakage Current
- High Temperature Glass Passivated Junction
- Reverse Voltage to 600 V
- Shipped in Plastic Bags; 1,000 per Bag
- Available Tape and Reel; 5,000 per Reel, by adding a “RL’’ Suffix to the Part Number
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MUR160RLG#C16588onsemi · DO-41 | onsemi | DO-41 | 16,270 | ₹24.98 · 16,270 in stock | View |
 | MUR260RLG#C16590onsemi · DO-41 | onsemi | DO-41 | 15,350 | ₹33.84 · 15,350 in stock | View |
 | HER108#C2898500YFW · DO-41 | YFW | DO-41 | 60 | ₹4.05 · 60 in stock | View |
 | UF4007 TB#C45662257YFW · DO-41 | YFW | DO-41 | 4,860 | ₹3.55 · 4,860 in stock | View |
 | MUR160#C2940198LGE · DO-41 | LGE | DO-41 | 1,965 | ₹7.00 · 1,965 in stock | View |
