onsemiDatasheet (PDF)

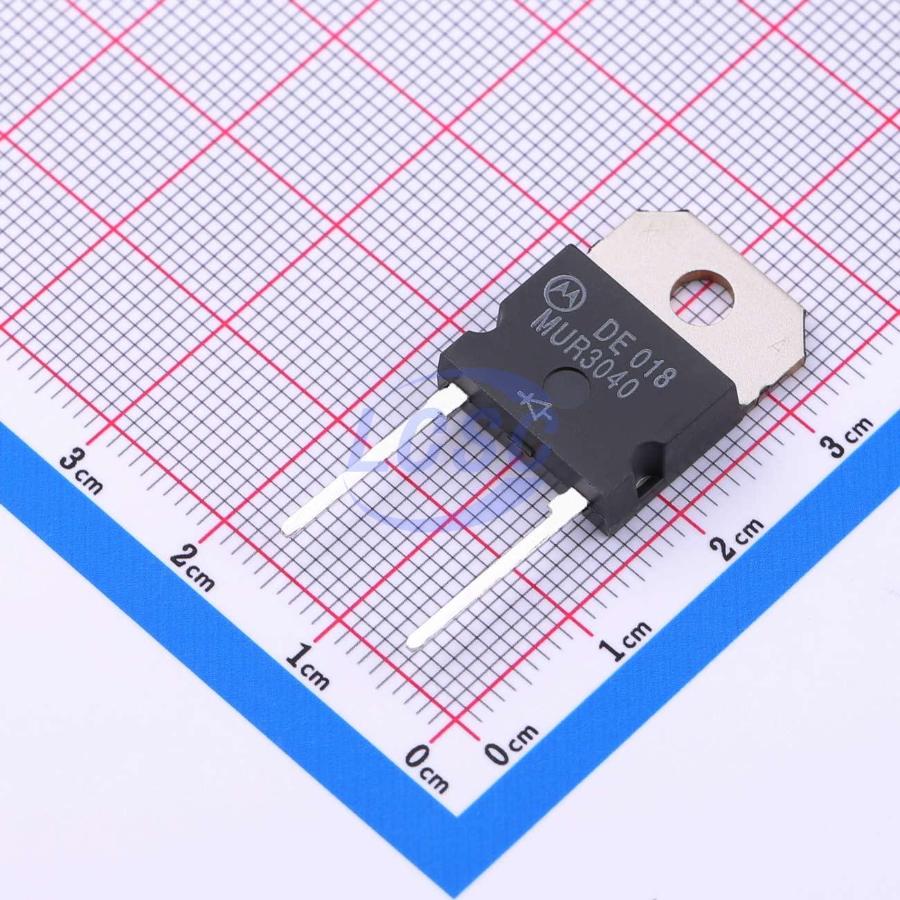

MUR3040
Diode 400V 30A Through Hole TO-218
TO-218Discontinued
DIODE GP 400V 30A TO-218
- Manufacturer
- onsemi
- Manufacturer part #
- MUR3040
- Store part #
- C19161982
- Package / case
- TO-218
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
390 in stock
#C19161982
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹650.04 | ₹650.04 |
| 10+ | ₹550.82 | ₹5,508.20 |
| 30+ | ₹491.85 | ₹14,755.50 |
| 90+ | ₹432.28 | ₹38,905.20 |
| 510+ | ₹404.84 | ₹2,06,468.40 |
| 990+ | ₹392.43 | ₹3,88,505.70 |
1 × ₹650.04
₹650.04
excl. GST
₹767.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
MUR3040
₹650.04 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 100ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - Forward(Vf@If)
- 1.5V@30A
- Reverse Leakage Current (Ir)
- 35uA
- Non-Repetitive Peak Forward Surge Current
- 300A
- Current - Rectified
- 30A
Packaging & compliance
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
designed for use in switching power supplies, inverters and as free wheeling diodes, these state–of–the–art devices have the following features
Applications
- switching power supplies
- inverters
- free wheeling diodes
Key features
- Ultrafast 100 Nanosecond Recovery Time
- 175℃ Operating Junction Temperature
- High Voltage Capability to 400 Volts
- Low Forward Voltage Drop
- High Temperature Glass Passivated Junction
