MSKSEMIDatasheet (PDF)

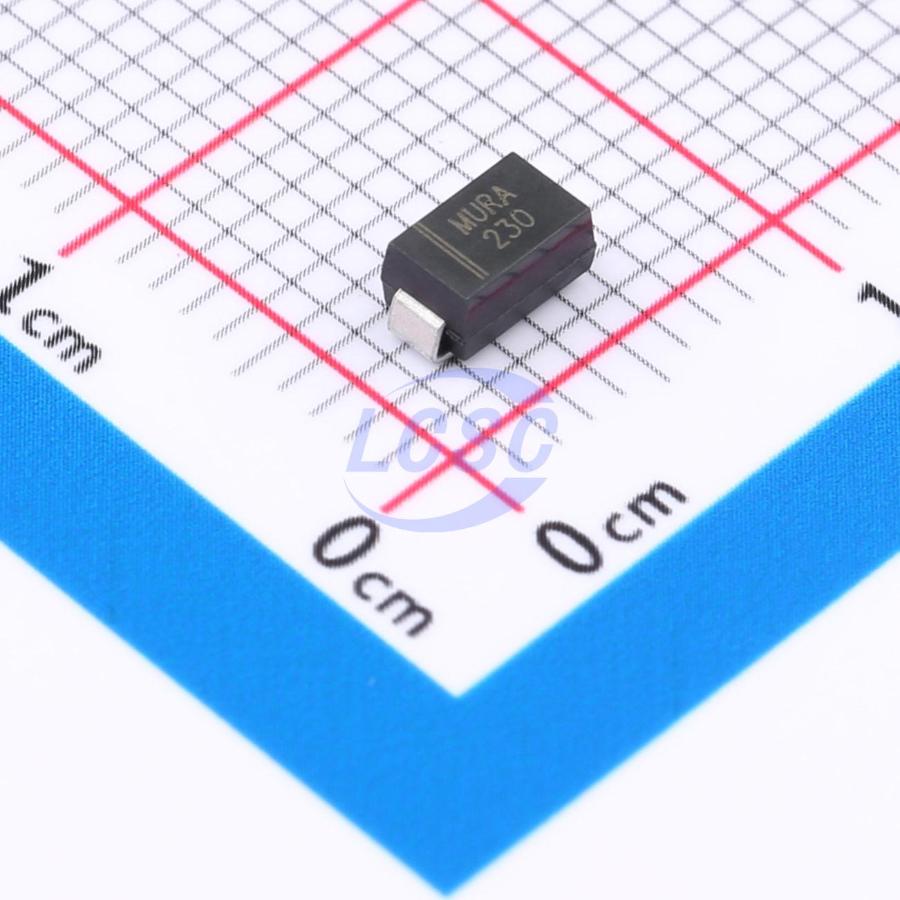

MURA230T3G-MS
35ns 200V 1 Independent 950mV@2A 2A SMA Single Diodes
SMARoHSActive
Diode 200V 2A SMA
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MURA230T3G-MS
- Store part #
- C19272825
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,790 in stock
#C19272825
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.25 | ₹102.50 |
| 100+ | ₹8.18 | ₹818.00 |
| 300+ | ₹7.13 | ₹2,139.00 |
| 2,000+ | ₹5.99 | ₹11,980.00 |
| 4,000+ | ₹5.37 | ₹21,480.00 |
| 10,000+ | ₹5.05 | ₹50,500.00 |
10 × ₹10.25
₹102.50
excl. GST
₹120.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MURA230T3G-MS
₹102.50 for 10 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 950mV@2A
- Reverse Leakage Current (Ir)
- 5uA@300V
- Non-Repetitive Peak Forward Surge Current
- 35A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
Key features
- Glass passivated chip construction
- Ideal for automatic assembly
- Low forward voltage drop, high efficiency
- Low power dissipation
- Ultra-fast recovery time
- Plastic case material flammability rating UL 94V-0
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MURA220T3G-MS#C19272824MSKSEMI · SMA | MSKSEMI | SMA | 3,340 | ₹9.58 · 3,340 in stock | View |
 | MURA260T3G-MS#C19272827MSKSEMI · SMA | MSKSEMI | SMA | 2,980 | ₹5.00 · 2,980 in stock | View |
 | ES2G#C5140014MSKSEMI · SMA | MSKSEMI | SMA | 1,950 | ₹2.92 · 1,950 in stock | View |
 | RS2M#C5140012MSKSEMI · SMA | MSKSEMI | SMA | 3,300 | ₹2.57 · 3,300 in stock | View |
 | MURA240T3G-MS#C19272826MSKSEMI · SMA | MSKSEMI | SMA | On request | ₹13.30 · 0 in stock | View |
