onsemiDatasheet (PDF)

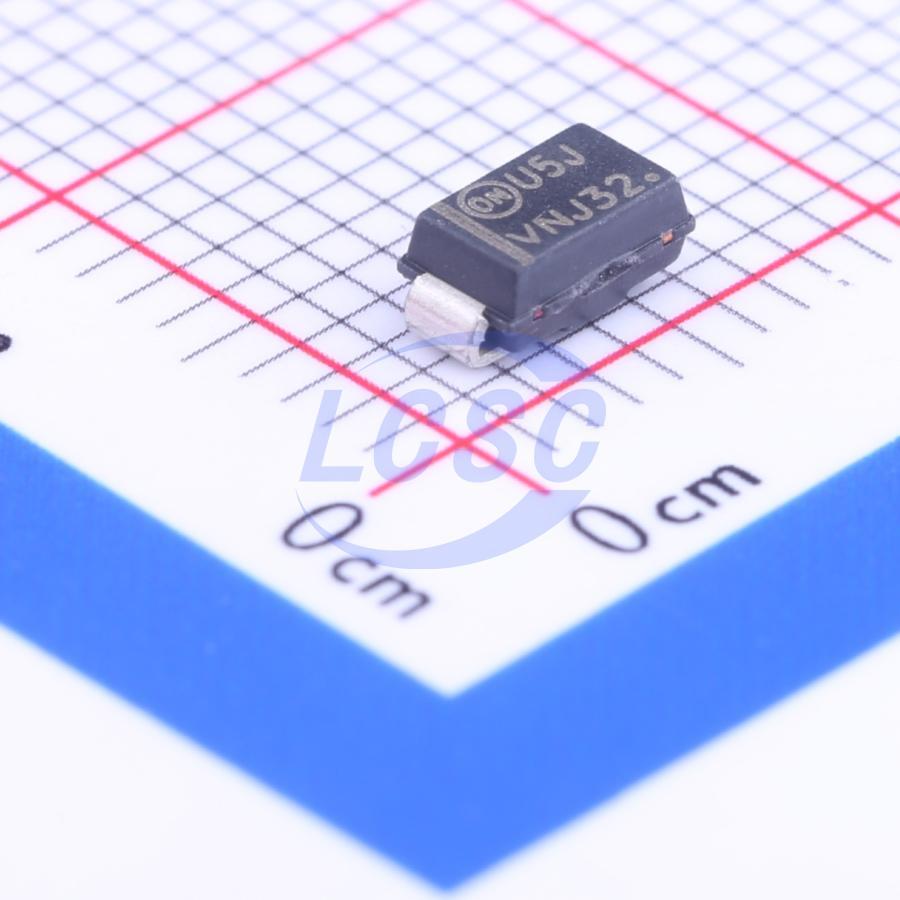

MURA260T3G
Diode 600V 2A Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE STANDARD 600V 2A SMA(DO-214AC)
- Manufacturer
- onsemi
- Manufacturer part #
- MURA260T3G
- Store part #
- C111835
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,645 in stock
#C111835
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.58 | ₹82.90 |
| 50+ | ₹13.03 | ₹651.50 |
| 150+ | ₹10.74 | ₹1,611.00 |
| 500+ | ₹9.42 | ₹4,710.00 |
| 2,500+ | ₹8.36 | ₹20,900.00 |
| 5,000+ | ₹7.82 | ₹39,100.00 |
5 × ₹16.58
₹82.90
excl. GST
₹97.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
MURA260T3G
₹82.90 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.45V@2A
- Reverse Leakage Current (Ir)
- 5uA@600V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.129 g
Overview
Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system.
Key features
- Small Compact Surface Mountable Package with J−Bend Leads
- Rectangular Package for Automated Handling
- High Temperature Glass Passivated Junction
- Low Forward Voltage Drop (1.2 V Max @ 2.0 A, T_J = 150℃)
- SURA8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ES2J#C20612277BORN · SMA | BORN | SMA | 4,500 | ₹2.20 · 4,500 in stock | View |
| S2M(SMA)#C41374263BORN · DO-214AC | BORN | DO-214AC | 5,000 | ₹2.02 · 5,000 in stock | View | |
 | EMA520#C5339844YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | 8,090 | ₹8.03 · 8,090 in stock | View |
 | US2MA#C42369119YONGYUTAI · SMA | YONGYUTAI | SMA | 1,950 | ₹1.92 · 1,950 in stock | View |
 | GS2JAQ#C2942570YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | 3,740 | ₹8.77 · 3,740 in stock | View |
