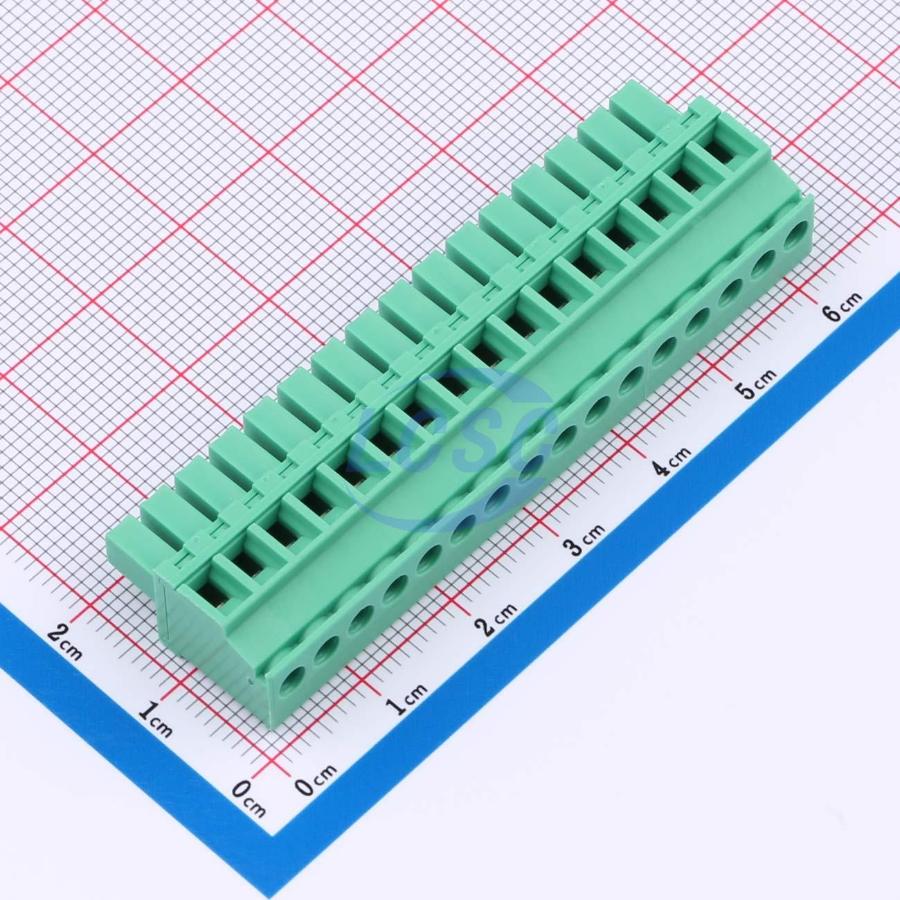

MX15EDGKB-3.81-16P-GN01-Cu-Y-A

0.2~1.5 16~28 1x16P 16P -40℃~+105℃ 16 1 8A 3.81mm Male Plug Green Free-hanging Without fixing device Through Hole,P=3.81mm Headers, Plugs and Sockets RoHS

Through Hole,P=3.81mmROHS CompliantActive

Manufacturer: MAX
Manufacturer part #: MX15EDGKB-3.81-16P-GN01-Cu-Y-A
Store part #: C19184580
Package / case: Through Hole,P=3.81mm
Category: Headers, Plugs and Sockets
Packaging: Bag-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

70 in stock

#C19184580

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹203.38	₹203.38
10+	₹168.17	₹1,681.70
30+	₹148.82	₹4,464.60
80+	₹127.05	₹10,164.00
480+	₹117.27	₹56,289.60
960+	₹113.00	₹1,08,480.00

Quantity (min 1)

1 × ₹203.38

₹203.38

excl. GST

₹239.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 80 per bag

MX15EDGKB-3.81-16P-GN01-Cu-Y-A

₹203.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2: 0.2~1.5
Wire Gauge - AWG: 16~28
Number of Positions or Pins: 1x16P
Number of Pins: 16P
Operating Temperature: -40℃~+105℃
Number of PINs Per Row: 16
Number of Rows: 1
Current Rating: 8A
Connection Type: Screw Connection (M2)
Voltage Rating: 300V
Pitch: 3.81mm
Connector Type: Male Plug
Color: Green
Mounting Type: Free-hanging
Termination Style: Without fixing device

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Bag-packed
Standard pack: 80 / Bag
Sold per: Piece
Minimum order: 1
Unit weight: 12.763 g
