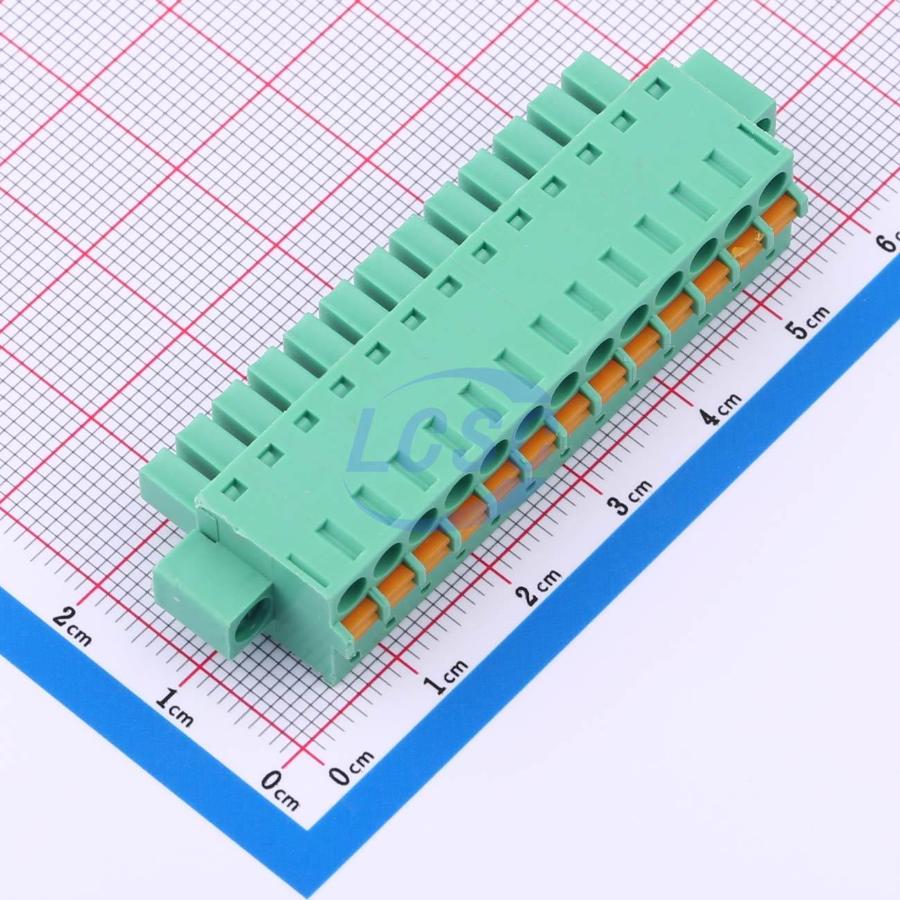

MX15EDGKDM-3.81-13P-GN01-Cu-A MAX
MAX

MX15EDGKDM-3.81-13P-GN01-Cu-A

13 Position Male Plug 3.81mm Pitch

P=3.81mmROHS CompliantActive

TERM BLOCK PLUG 13POS 3.81mm

Manufacturer
MAX
Manufacturer part #
MX15EDGKDM-3.81-13P-GN01-Cu-A
Store part #
C20616816
Package / case
P=3.81mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

69 in stock

#C20616816

Stock & price checked 11 days ago

QuantityUnit pricePack price
1+₹304.04₹304.04
10+₹258.61₹2,586.10
30+₹230.19₹6,905.70
70+₹201.12₹14,078.40
420+₹187.99₹78,955.80
1,050+₹182.16₹1,91,268.00

1 × ₹304.04

₹304.04

excl. GST

₹358.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 70 per bag

MX15EDGKDM-3.81-13P-GN01-Cu-A

₹304.04 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - AWG
16~28
Number of Positions or Pins
1x13P
Number of Pins
13P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
13
Number of Rows
1
Current Rating
8A
Outlet Direction (Vertical Basis)
Top Entry
Connection Type
Spring Connection
Voltage Rating
300V
Pitch
3.81mm
Connector Type
Male Plug
Color
Green
Mounting Type
Free-hanging
Termination Style
Screw

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
70 / Bag
Sold per
Piece
Minimum order
1
Unit weight
12.357 g
