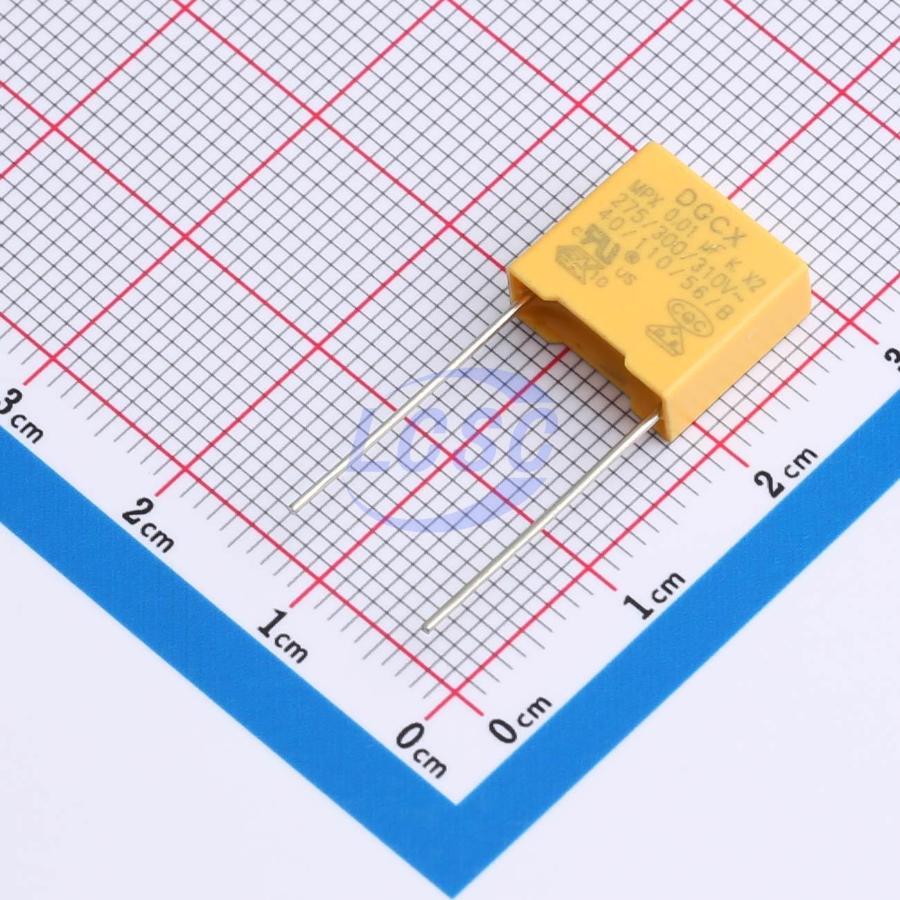

MX2103KQ3C20YB2000R
10nF ±10% 310V Safety Capacitor Through Hole,P=10mm
CAP SAFETY 10nF ±10% 310V TH
- Manufacturer
- DGCX
- Manufacturer part #
- MX2103KQ3C20YB2000R
- Store part #
- C42381295
- Package / case
- Through Hole,P=10mm
- Category
- Ceramic Capacitors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C42381295
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.99 | ₹99.80 |
| 200+ | ₹3.94 | ₹788.00 |
| 1,000+ | ₹3.43 | ₹3,430.00 |
| 2,000+ | ₹3.03 | ₹6,060.00 |
| 10,000+ | ₹2.71 | ₹27,100.00 |
| 20,000+ | ₹2.55 | ₹51,000.00 |
20 × ₹4.99
₹99.80
excl. GST
₹117.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
MX2103KQ3C20YB2000R
₹99.80 for 20 + GST
Specifications
- Capacitance
- 10nF
- Tolerance
- ±10%
- Operating Temperature
- -40℃~+110℃
- Ratings
- X2
- Voltage(AC)
- 310V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.89 g
Overview
The MPX series capacitors feature a metallized polypropylene film non-inductive winding construction, with tin-plated copper-clad steel leads soldered to the metallized (flame-sprayed) terminals of the capacitor element. The capacitor body is encapsulated in a UL94V-0 flame-retardant plastic case with flame-retardant epoxy resin. MPX series capacitors are widely used in interference suppression and across-the-line capacitor circuits, and are suitable for applications where capacitor failure does not result in electric shock hazard.
Applications
- Interference Suppressors and Crossover Capacitor Loops
Key features
- Metallized polypropylene film, non-inductive construction with excellent self-healing properties.
- High voltage surge withstanding capability.
- Flame-retardant plastic case and flame-retardant epoxy resin encapsulation.
