MAXDatasheet (PDF)

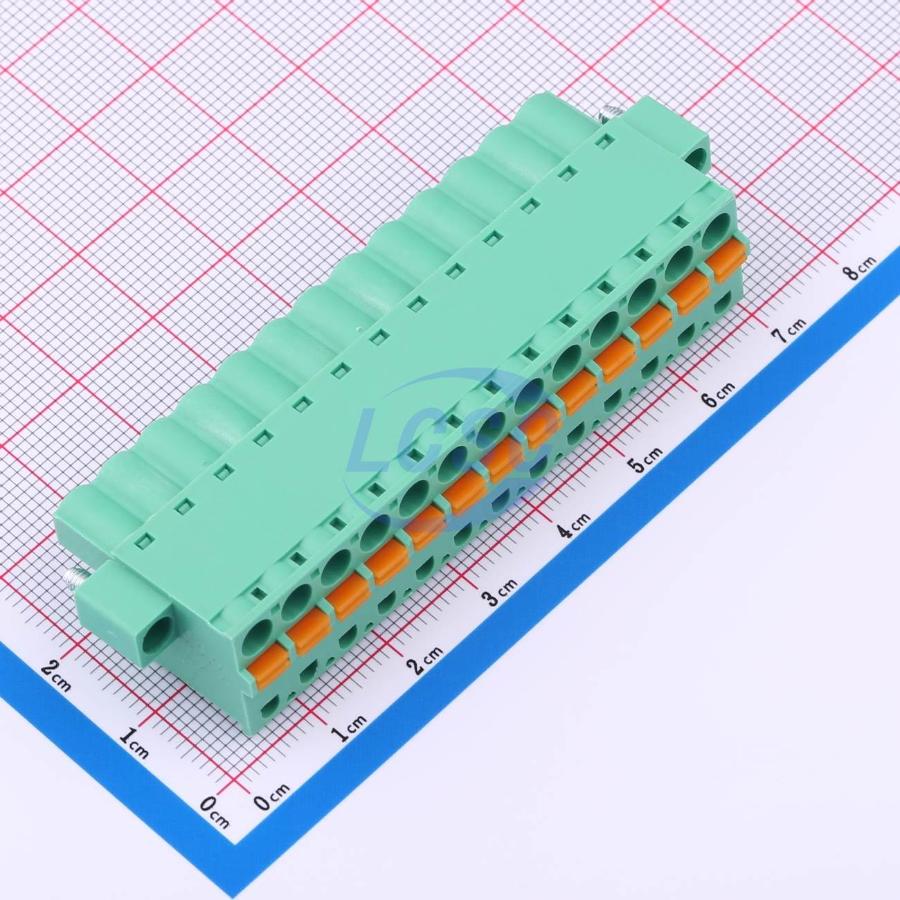

MX2EDGKDM-5.08-13P-GN01-Cu-A
13 Position 5.08mm Pitch
P=5.08mmROHS CompliantActive
13POS 5.08mm
- Manufacturer
- MAX
- Manufacturer part #
- MX2EDGKDM-5.08-13P-GN01-Cu-A
- Store part #
- C20616830
- Package / case
- P=5.08mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C20616830
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹364.76 | ₹364.76 |
| 10+ | ₹310.28 | ₹3,102.80 |
| 50+ | ₹276.27 | ₹13,813.50 |
| 100+ | ₹241.38 | ₹24,138.00 |
| 500+ | ₹225.45 | ₹1,12,725.00 |
| 1,000+ | ₹218.77 | ₹2,18,770.00 |
1 × ₹364.76
₹364.76
excl. GST
₹430.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per bag
MX2EDGKDM-5.08-13P-GN01-Cu-A
₹364.76 for 1 + GST
Specifications
- Wire Gauge - mm2
- 0.2~2.5
- Wire Gauge - AWG
- 12~24
- Number of Positions or Pins
- 1x13P
- Number of Pins
- 13P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 13
- Number of Rows
- 1
- Current Rating
- 10A
- Outlet Direction (Vertical Basis)
- Top Entry
- Connection Type
- Spring Connection
- Voltage Rating
- 300V
- Pitch
- 5.08mm
- Connector Type
- Male Plug
- Color
- Green
- Mounting Type
- Free-hanging
- Termination Style
- Screw
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 50 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 22.88 g
Overview
Key features
- IEC standard
- Wire range: 0.2 ~ 2.5mm²
- Housing: PA66 (UL94V-0)
- Cover: PA66 (UL94V-0)
- Button: POM
- Conductor: copper alloy (nickel-plated)
- Spring: stainless steel
- Screw: steel (M5, zinc-plated)
- Pitch: 5.08mm, poles: 2-24P
- Strip length: 9-10mm
- Operating temperature: -40℃
- RoHS compliant
