MAXDatasheet (PDF)

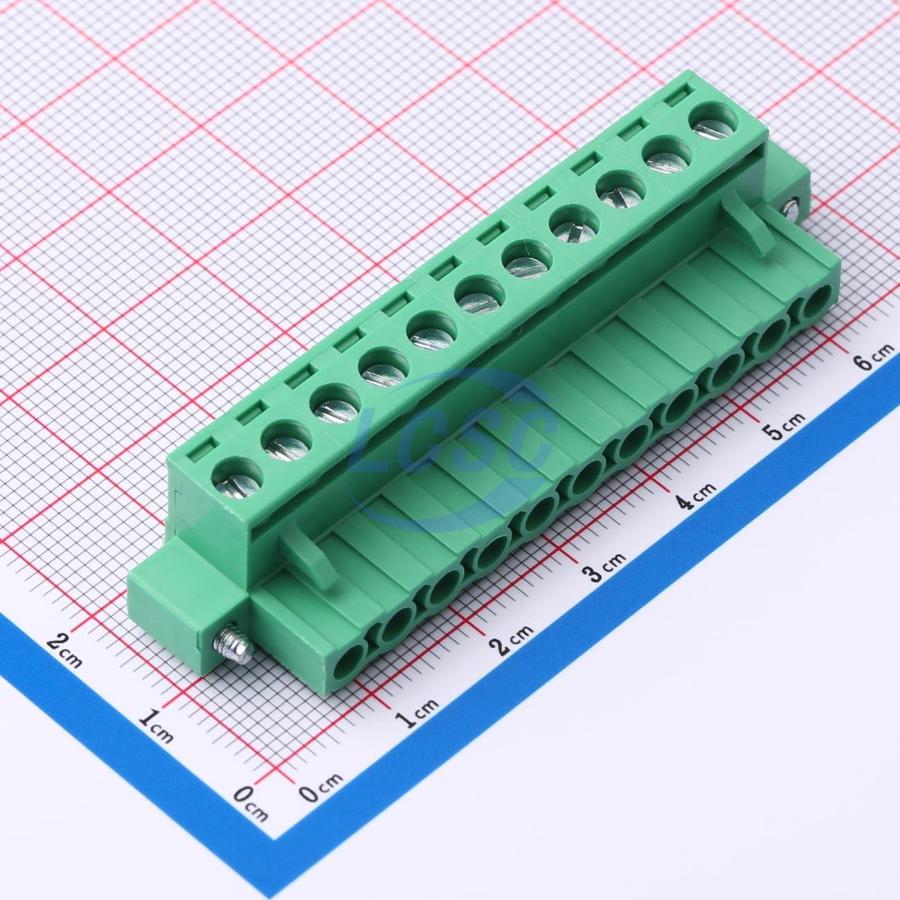

MX2EDGKM-5.08-11P-GN01-Cu-Y-A
11 Position 5.08mm Pitch
P=5.08mmROHS CompliantActive
11POS 5.08mm
- Manufacturer
- MAX
- Manufacturer part #
- MX2EDGKM-5.08-11P-GN01-Cu-Y-A
- Store part #
- C5187964
- Package / case
- P=5.08mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
144 in stock
#C5187964
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.59 | ₹105.59 |
| 10+ | ₹85.64 | ₹856.40 |
| 50+ | ₹75.54 | ₹3,777.00 |
| 100+ | ₹65.67 | ₹6,567.00 |
| 500+ | ₹59.67 | ₹29,835.00 |
| 1,000+ | ₹56.66 | ₹56,660.00 |
1 × ₹105.59
₹105.59
excl. GST
₹124.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per bag
MX2EDGKM-5.08-11P-GN01-Cu-Y-A
₹105.59 for 1 + GST
Specifications
- Wire Gauge - mm2
- 2.5
- Wire Gauge - AWG
- 12~24
- Number of Positions or Pins
- 1x11P
- Number of Pins
- 11P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 11
- Number of Rows
- 1
- Current Rating
- 15A
- Outlet Direction (Vertical Basis)
- Horizontal Termination
- Connection Type
- Screw Connection (M2.5)
- Voltage Rating
- 300V
- Pitch
- 5.08mm
- Color
- Green
- Connector Type
- Male Plug
- Mounting Type
- Free-hanging
- Termination Style
- Screw
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 50 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 16.74 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MX2EDGKAM-5.08-11P-GN01-Cu-Y-A#C19184592MAX · Through Hole,P=5.08mm | MAX | Through Hole,P=5.08mm | 200 | ₹181.78 · 200 in stock | View |
 | MX2EDGKBM-5.08-11P-GN01-Cu-Y-A#C19184656MAX · Through Hole,P=5.08mm | MAX | Through Hole,P=5.08mm | 275 | ₹144.71 · 275 in stock | View |
 | MX2EDGKDM-5.08-11P-GN01-Cu-A#C20616828MAX · P=5.08mm | MAX | P=5.08mm | 58 | ₹311.61 · 58 in stock | View |
