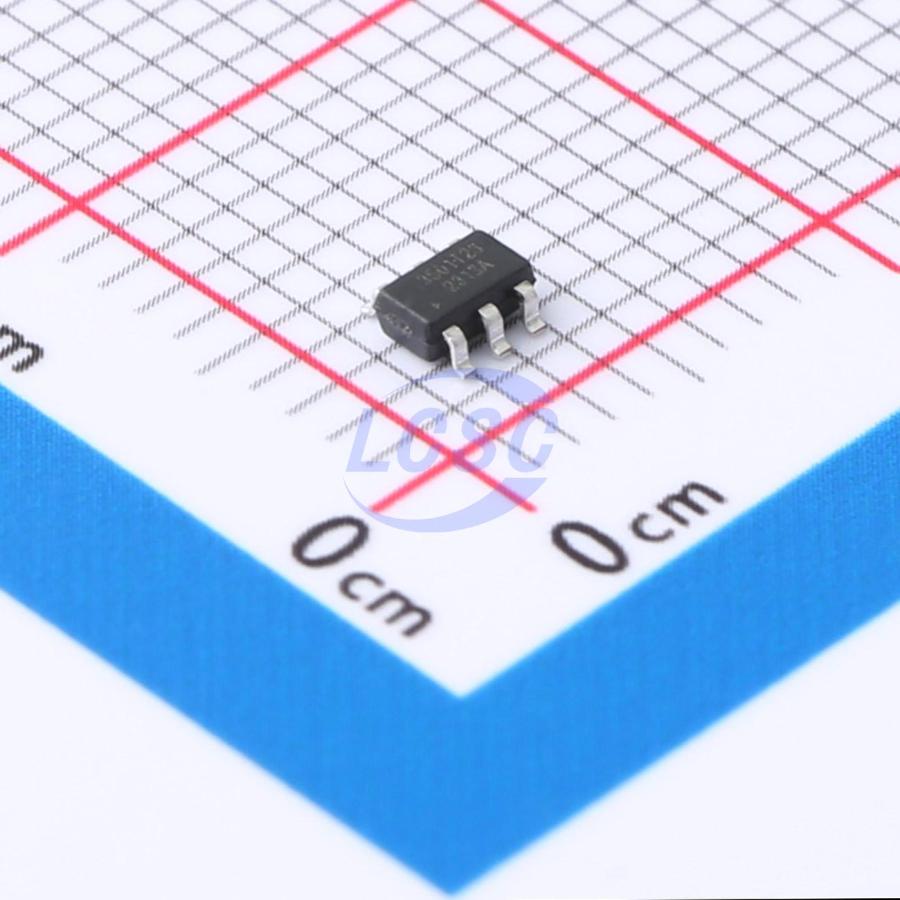

MX3501T23
Rail-to-Rail Input, Rail-to-Rail Output 1mV 2pA 1 SOT23-6L Linear Comparators RoHS
4.5ns, Rail to Rail, High Speed Comparator
- Manufacturer
- Wuxi Maxinmicro
- Manufacturer part #
- MX3501T23
- Store part #
- C5359092
- Package / case
- SOT23-6L
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,690 in stock
#C5359092
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.27 | ₹131.35 |
| 50+ | ₹20.81 | ₹1,040.50 |
| 150+ | ₹18.47 | ₹2,770.50 |
| 500+ | ₹15.55 | ₹7,775.00 |
| 3,000+ | ₹14.25 | ₹42,750.00 |
| 6,000+ | ₹13.45 | ₹80,700.00 |
5 × ₹26.27
₹131.35
excl. GST
₹154.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MX3501T23
₹131.35 for 5 + GST
Specifications
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 3.2mA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 4.5ns
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1.35V~2.75V;-2.75V~-1.35V
- Input Hysteresis Voltage (Vhys)
- 6mV
- Common Mode Rejection Ratio(CMRR)
- 57dB
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 2pA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Input Offset Current(Ios)
- 2pA
- Response Time (tr)
- 1.5ns
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
MX3501T23 is a push-pull output comparator featuring a fast 4.5ns propagation delay and an operating voltage range of 1.8V to 5.5V. Its input common-mode range extends beyond the supply rails, making it ideal for low-voltage applications. The rail-to-rail output directly drives CMOS or TTL logic. The miniature package offers a solution for portable and space-constrained applications. This single-channel device is available in a SOT23-6 package.
Applications
- Test Equipment
- Wireless Base Stations
- Threshold Detectors
- Zero-Crossing Detectors
- Window Comparators
Key features
- High-speed: 4.5ns
- Rail-to-rail input/output
- Supply voltage: 1.8V to 5.5V
- Push-pull CMOS output stage
- Shutdown function
- Low supply current: 3.2mA
- 6-pin SOT23 package
