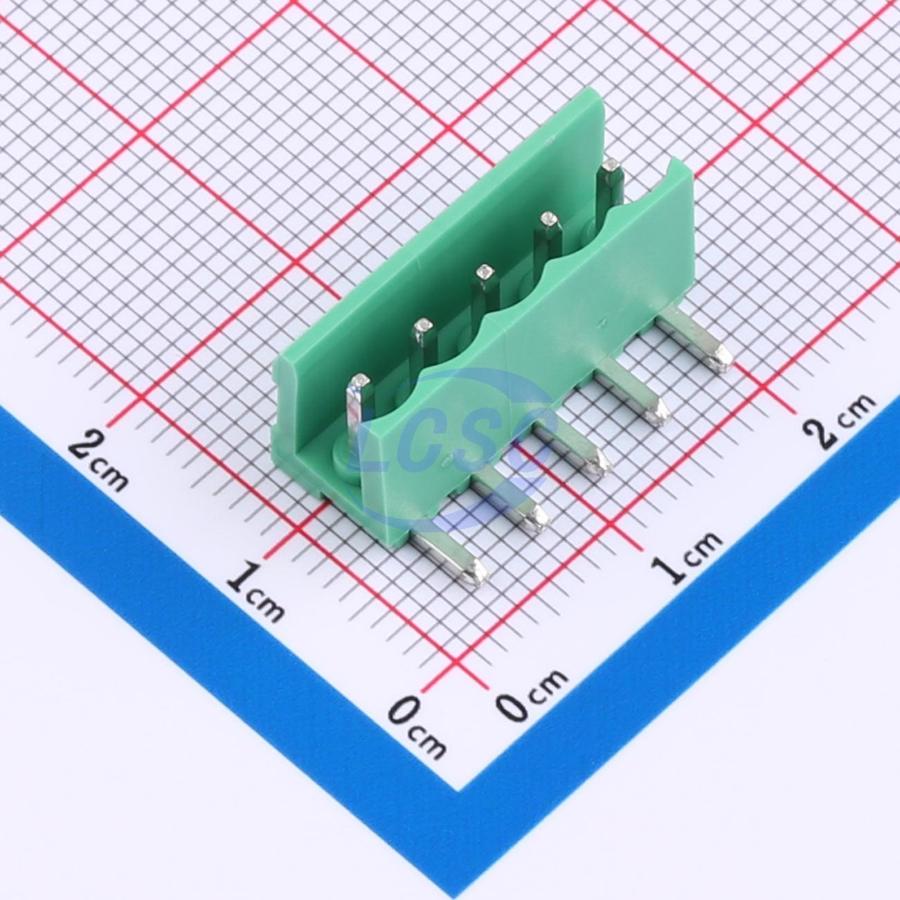

MXHT396R-3.96-05P-GN01-Cu-A
5 Position Board Side/Socket - Open 3.96mm Pitch Right-Angle Pin
Through Hole,Right Angle,P=3.96mmROHS CompliantActive
TERM BLOCK HDR 5POS 3.96mm
- Manufacturer
- MAX
- Manufacturer part #
- MXHT396R-3.96-05P-GN01-Cu-A
- Store part #
- C48688323
- Package / case
- Through Hole,Right Angle,P=3.96mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
245 in stock
#C48688323
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.54 | ₹62.70 |
| 50+ | ₹9.99 | ₹499.50 |
| 150+ | ₹8.71 | ₹1,306.50 |
| 500+ | ₹7.74 | ₹3,870.00 |
| 2,500+ | ₹6.97 | ₹17,425.00 |
| 5,000+ | ₹6.59 | ₹32,950.00 |
5 × ₹12.54
₹62.70
excl. GST
₹73.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per bag
MXHT396R-3.96-05P-GN01-Cu-A
₹62.70 for 5 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x5P
- Number of Pins
- 5P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.96mm
- Color
- Green
- Connector Type
- Board Side/Socket - Open
- Number of PINs Per Row
- 5
- Termination Style
- Without fixing device
- Number of Rows
- 1
- Mounting Type
- Right-Angle
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 500 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.377 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MXHT396R-3.96-05P-OE01-Cu-A#C48688290MAX · Through Hole,Right Angle,P=3.96mm | MAX | Through Hole,Right Angle,P=3.96mm | 220 | ₹11.89 · 220 in stock | View |
