MAXDatasheet (PDF)

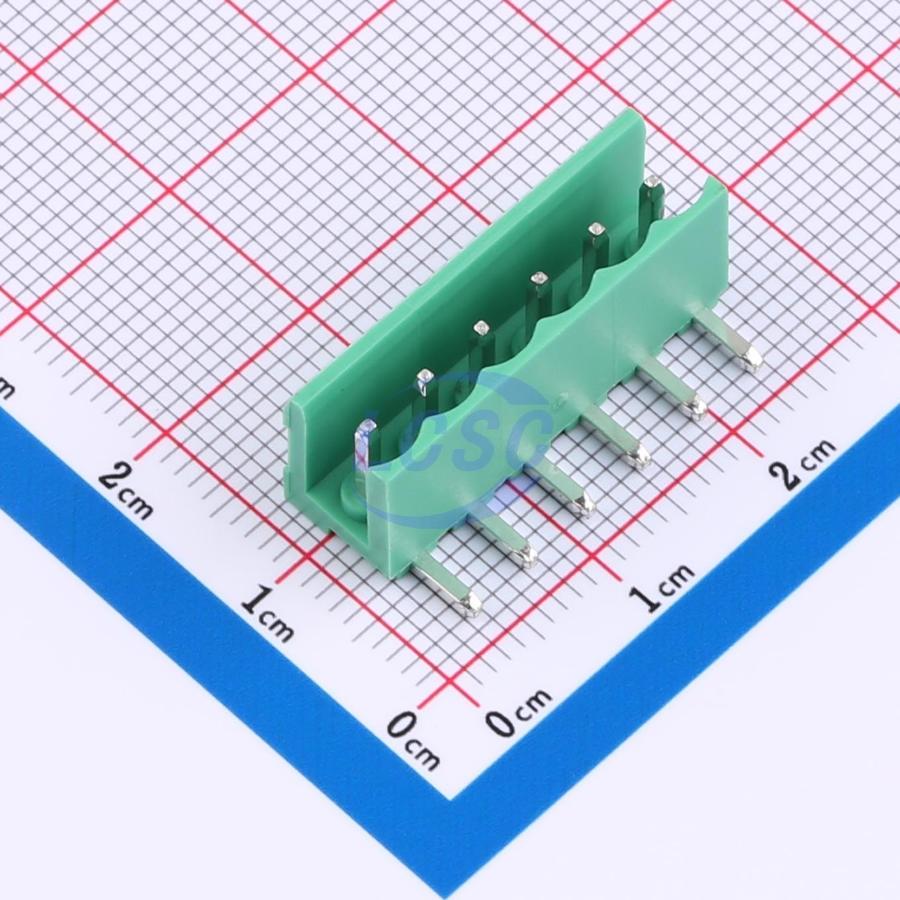

MXHT396R-3.96-06P-GN01-Cu-A
6 Position Board Side/Socket - Open 3.96mm Pitch Right-Angle Pin
Through Hole,Right Angle,P=3.96mmROHS CompliantActive
TERM BLOCK HDR 6POS 3.96mm
- Manufacturer
- MAX
- Manufacturer part #
- MXHT396R-3.96-06P-GN01-Cu-A
- Store part #
- C48688324
- Package / case
- Through Hole,Right Angle,P=3.96mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C48688324
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.99 | ₹74.95 |
| 50+ | ₹11.89 | ₹594.50 |
| 150+ | ₹10.36 | ₹1,554.00 |
| 400+ | ₹9.19 | ₹3,676.00 |
| 2,400+ | ₹8.27 | ₹19,848.00 |
| 4,800+ | ₹7.81 | ₹37,488.00 |
5 × ₹14.99
₹74.95
excl. GST
₹88.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 400 per bag
MXHT396R-3.96-06P-GN01-Cu-A
₹74.95 for 5 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x6P
- Number of Pins
- 6P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.96mm
- Color
- Green
- Connector Type
- Board Side/Socket - Open
- Number of PINs Per Row
- 6
- Termination Style
- Without fixing device
- Number of Rows
- 1
- Mounting Type
- Right-Angle
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 400 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.657 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MXHT396R-3.96-06P-OE01-Cu-A#C48688291MAX · Through Hole,Right Angle,P=3.96mm | MAX | Through Hole,Right Angle,P=3.96mm | 280 | ₹14.72 · 280 in stock | View |
