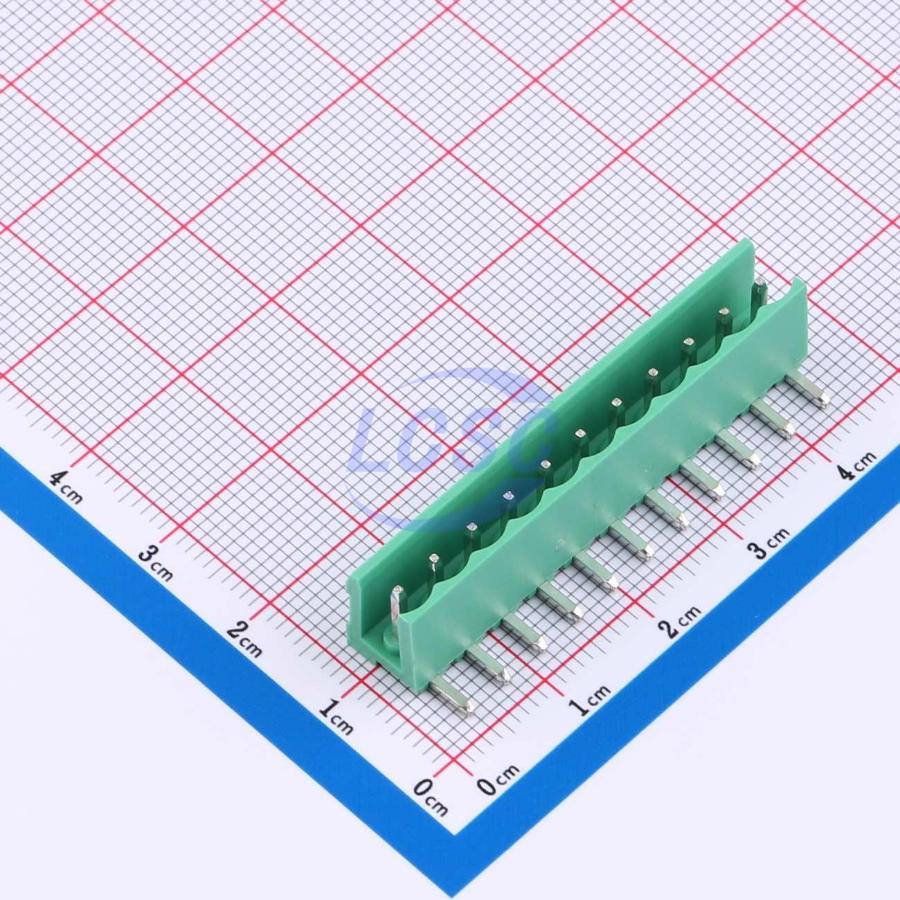

MXHT396R-3.96-11P-GN01-Cu-A
11 Position Board Side/Socket - Open 3.96mm Pitch Right-Angle Pin
Through Hole,Right Angle,P=3.96mmROHS CompliantActive
TERM BLOCK HDR 11POS 3.96mm
- Manufacturer
- MAX
- Manufacturer part #
- MXHT396R-3.96-11P-GN01-Cu-A
- Store part #
- C48688329
- Package / case
- Through Hole,Right Angle,P=3.96mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
195 in stock
#C48688329
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.29 | ₹131.45 |
| 50+ | ₹20.48 | ₹1,024.00 |
| 200+ | ₹17.99 | ₹3,598.00 |
| 400+ | ₹14.90 | ₹5,960.00 |
| 2,400+ | ₹13.51 | ₹32,424.00 |
| 5,000+ | ₹12.67 | ₹63,350.00 |
5 × ₹26.29
₹131.45
excl. GST
₹155.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 200 per bag
MXHT396R-3.96-11P-GN01-Cu-A
₹131.45 for 5 + GST
Specifications
- Current Rating
- 8A
- Number of Positions or Pins
- 1x11P
- Number of Pins
- 11P
- Voltage Rating
- 300V
- Operating Temperature
- -40℃~+105℃
- Pitch
- 3.96mm
- Color
- Green
- Connector Type
- Board Side/Socket - Open
- Number of PINs Per Row
- 11
- Termination Style
- Without fixing device
- Number of Rows
- 1
- Mounting Type
- Right-Angle
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 200 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 3.027 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MXHT396R-3.96-11P-OE01-Cu-A#C48688296MAX · Through Hole,Right Angle,P=3.96mm | MAX | Through Hole,Right Angle,P=3.96mm | 80 | ₹27.13 · 80 in stock | View |
