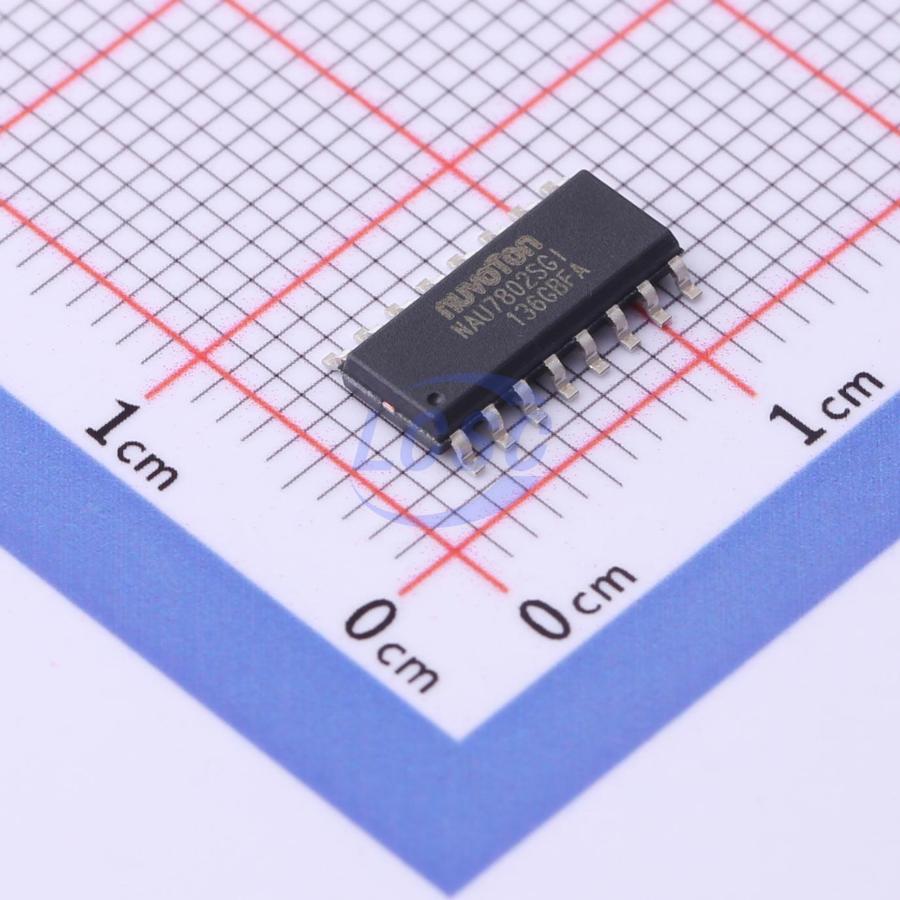

NAU7802SGI

The Nuvoton NAU7802 is a precision low-power 24-bit analog-to-digital converter (ADC), with an onboard low-noise programmable gain amplifier (PGA), onboard RC or Crystal oscillator, and a precision 24-bit sigma-delta (Σ·Δ) analog to digital converter (ADC). The NAU7802 device is capable of up to 23-bit ENOB (Effective Number Of Bits) performance. This device provides a complete front-end solution for bridge/sensor measurement such as in weigh scales, strain gauges, and many other high resolution, low sample rate applications. The many built-in features enable high performance applications with very low external parts count. Additionally, both operating current and standby current are very low, and many power management features are included. These enable powering only those elements of the chip that are needed, and also, to operate at greatly reduced power if the full 23-bit ENOB performance is not required. The Programmable Gain Amplifier (PGA) provides selectable gains from 1 to 128. The A/D conversion is performed with a Sigma-Delta modulator and programmable FIR filter that provides a simultaneous 50Hz and 60Hz notch filter to effectively improve interference immunity. Also, this device provides a standard 2-wire interface compatible with I2C protocol for simple and straightforward connection to and interoperation with a wide range of possible host processors.

Applications

• Weigh scales
• Strain Gauge
• Industrial process control
• Liquid/gas flow control
• Pressure sensors
• Voltage monitors

Key features

• Supply power: 2.7V~5.5V
• On-chip VDDA regulator for internal analog circuit or external load cell
• Programmable VDDA: Off, 2.4V to 4.5V with eight options
• Minimum 10mA output drive capability at 3.0V output voltage
• 23 bits effective precision analog-to-digital converter
• Simultaneous 50Hz and 60Hz rejection (reaching －90dB)
