onsemiDatasheet (PDF)

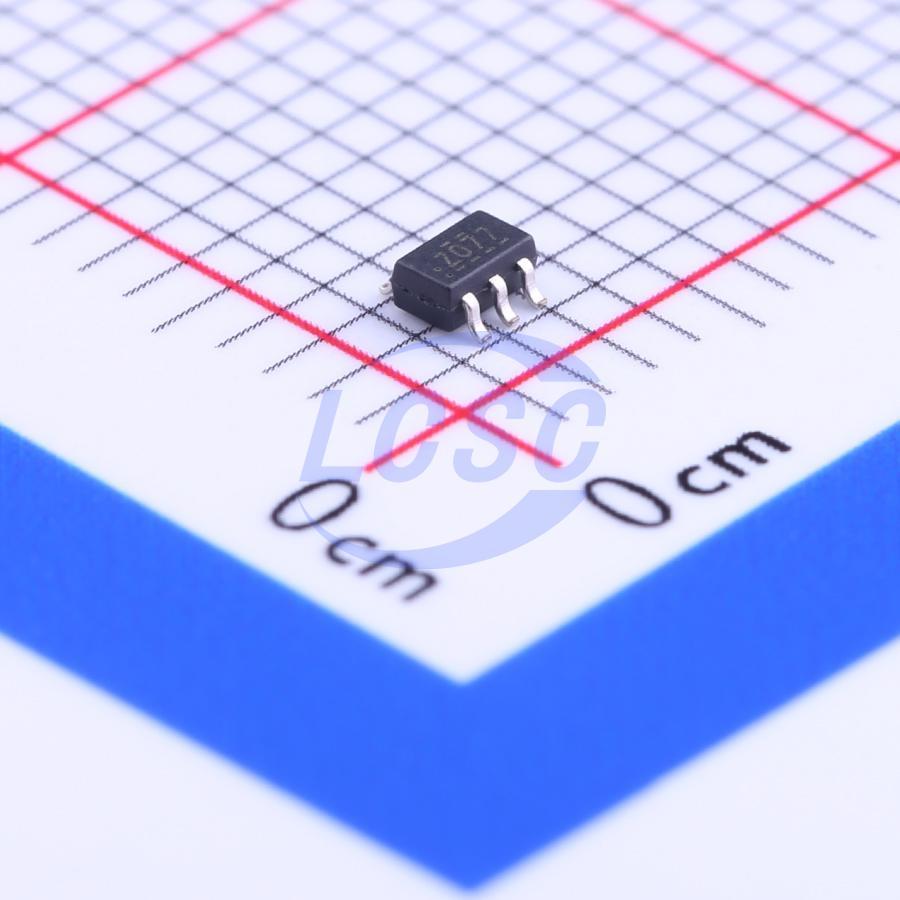

NC7WZ07P6X
1.65V~5.5V 1 2 2.3ns@5V,50pF SOT-363-6 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-363-6ROHS3 CompliantActive
TinyLogic UHS Dual Buffer (Open-Drain Outputs)
- Manufacturer
- onsemi
- Manufacturer part #
- NC7WZ07P6X
- Store part #
- C95342
- Package / case
- SOT-363-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,110 in stock
#C95342
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.41 | ₹84.10 |
| 100+ | ₹6.77 | ₹677.00 |
| 300+ | ₹5.97 | ₹1,791.00 |
| 3,000+ | ₹5.34 | ₹16,020.00 |
| 6,000+ | ₹4.86 | ₹29,160.00 |
| 9,000+ | ₹4.62 | ₹41,580.00 |
10 × ₹8.41
₹84.10
excl. GST
₹99.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7WZ07P6X
₹84.10 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Series
- TinyLogic UHS
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 2.3ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The NC7WZ07 is a dual buffer with open-drain outputs from Ultra-High Speed (UHS) series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive, while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over a very broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V range. The inputs and outputs are high impedance when VCC is 0 V. Inputs tolerate voltages up to 7 V independent of VCC operating voltage.
Key features
- Ultra-High Speed: tPZL 2.3 ns (Typical)
- High IOL Output Drive: ±24 mA at 3 V VCC
- Broad VCC Operating Range: 1.65 V to 5.50 V
- Power Down High Impedance Inputs/Outputs
- Over-Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
- Proprietary Noise/EMI Reduction Circuitry
- Ultra-Small MicroPak Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC7PZ07FU,LJ(CT#C2675578TOSHIBA · SOT-363 | TOSHIBA | SOT-363 | 55 | ₹16.06 · 55 in stock | View |
 | NC7WZ07P6X-L22347#C5207807onsemi · SC-70-6 | onsemi | SC-70-6 | 4,820 | ₹20.07 · 4,820 in stock | View |
| SN74LVC2G07DCKT#C2860156TI · SC-70-6 | TI | SC-70-6 | 25 | ₹13.97 · 25 in stock | View | |
 | SN74LVC2G07DCKR#C7849TI · SC-70-6 | TI | SC-70-6 | 43,570 | ₹18.13 · 43,570 in stock | View |
 | 74LVC2G07GW,125#C24478Nexperia · SOT-363-6 | Nexperia | SOT-363-6 | 2,540 | ₹20.81 · 2,540 in stock | View |
