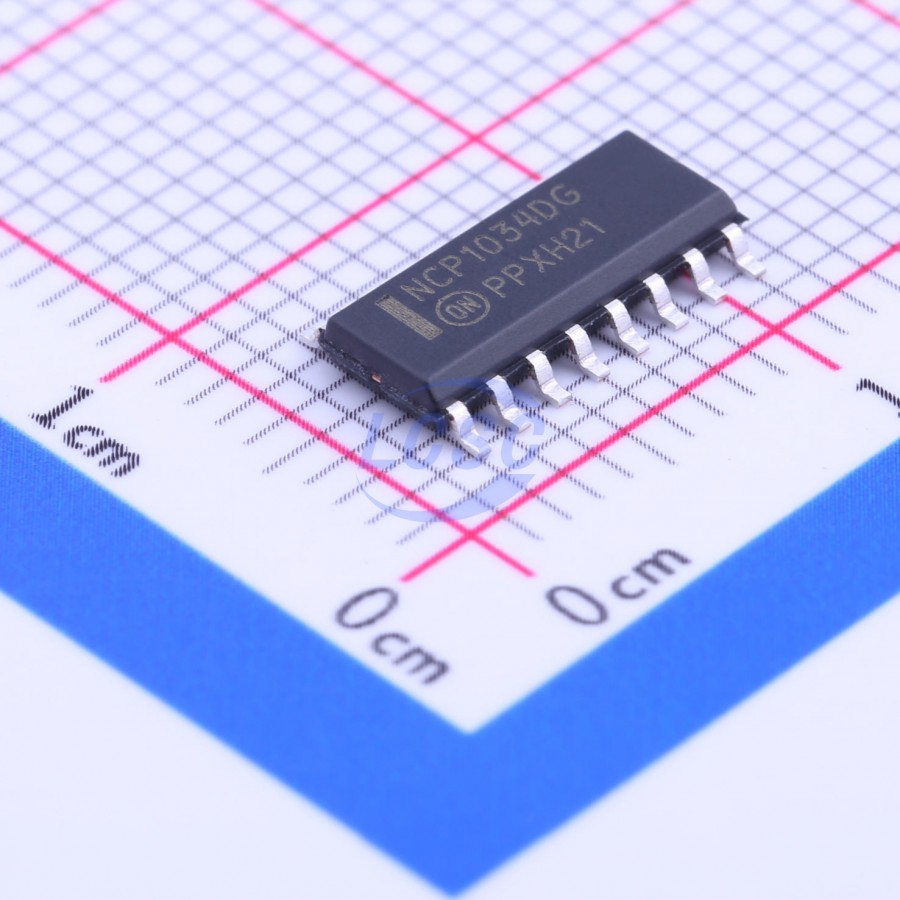

NCP1034DR2G
1 2A Adjustable Step-down type SOIC-16 DC DC Switching Controllers RoHS
High Voltage Synchronous Buck PWM Controller
- Manufacturer
- onsemi
- Manufacturer part #
- NCP1034DR2G
- Store part #
- C145178
- Package / case
- SOIC-16
- Category
- DC DC Switching Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,487 in stock
#C145178
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹313.42 | ₹313.42 |
| 10+ | ₹262.52 | ₹2,625.20 |
| 30+ | ₹230.56 | ₹6,916.80 |
| 100+ | ₹162.69 | ₹16,269.00 |
| 500+ | ₹147.91 | ₹73,955.00 |
| 1,000+ | ₹141.38 | ₹1,41,380.00 |
1 × ₹313.42
₹313.42
excl. GST
₹369.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCP1034DR2G
₹313.42 for 1 + GST
Specifications
- Synchronous Rectifier
- Yes
- Features
- Adjustable current limiting;Hiccup current limiting;Adjustable soft-start;Frequency synchronization;External compensation;Overcurrent Protection
- Number of Channels
- 1
- Topology
- Buck
- Operating Voltage
- 10V~18V
- Switch tube (built-in/external)
- External
- Operating Temperature
- -40℃~+125℃@(TJ)
- Output Current
- 2A
- Frequency - Switching
- 500kHz
- Output Type
- Adjustable
- Function
- Step-down type
- Quiescent Current
- 2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.318 g
Overview
The NCP1034 is a high voltage PWM controller designed for high performance synchronous Buck DC/DC applications with input voltages up to 100 V. The NCP1034 drives a pair of external N−MOSFETs. The switching frequency is programmable from 25 kHz up to 500 kHz allowing the flexibility to tune for efficiency and size. A synchronization feature allows the switching frequency to be set by an external source or output a synchronization signal to multiple NCP1034 controllers. The output voltage can be precisely regulated using the internally trimmed 1.25 V reference voltage for low voltage applications. Protection features include user programmable undervoltage lockout and hiccup current limit.
Applications
- 48 V Non−Isolated DC−DC Converter
- Embedded Telecom Systems
- Networking and Computing Voltage Regulator
- Distributed Point of Load Power Architectures
- General High Voltage DC−DC Converters
Key features
- High Voltage Operating up to 100 V
- Programmable Switching Frequency up to 500 kHz
- 2 A Output Drive Capability
- Precision Reference Voltage (1.25 V)
- Programmable Soft−Start with Prebiased Load Capability
- Programmable Overcurrent Protection
- Programmable Undervoltage Protection
- Hiccup Current Limit Using MOSFET RDS(on) Sensing
- External Frequency Synchronization
- 16 Pin SOIC Package
- This is a Pb−Free Device
