onsemiDatasheet (PDF)

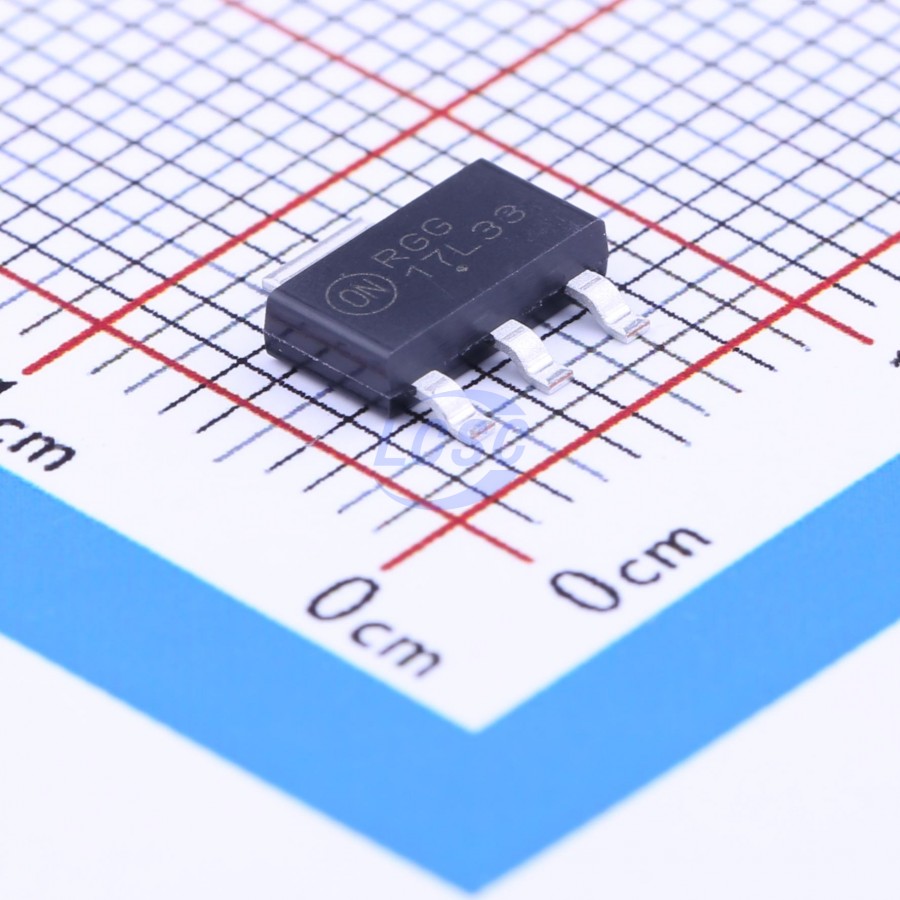

NCP1117LPST33T3G
3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
1.0A Low-Dropout Positive Fixed and Adjustable Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- NCP1117LPST33T3G
- Store part #
- C146799
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,870 in stock
#C146799
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.52 | ₹262.60 |
| 50+ | ₹42.68 | ₹2,134.00 |
| 150+ | ₹38.47 | ₹5,770.50 |
| 500+ | ₹33.21 | ₹16,605.00 |
| 2,500+ | ₹21.80 | ₹54,500.00 |
| 4,000+ | ₹20.40 | ₹81,600.00 |
5 × ₹52.52
₹262.60
excl. GST
₹309.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCP1117LPST33T3G
₹262.60 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 550uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.202 g
Overview
The NCP1117LP is a low dropout positive fixed or adjustable mode regulator with 1 A output capability. This LDO is guaranteed to have a significant reduction in dropout voltage along with enhanced output voltage accuracy and temperature stability when compared to older industry standard three−terminal adjustable regulators. These devices contain output current limiting, safe operating area compensation and thermal shutdown protection making them designer friendly for powering numerous consumer and industrial products.
Applications
- TV and Monitors
- Set Top Boxes and Entertainment Devices
- Switching Power Supply Post Regulation
- Game Consoles and Consumer Applications
- Hard Drive Controllers
Key features
- Output Current in Excess of 1.0 A
- 1.4 V Maximum Dropout Voltage at 1 A
- Quiescent Current over 10 times Lower than Traditional 1117
- Fixed Output Voltages of 1.5 V, 1.8 V, 2.5 V, 3.3 V and 5.0 V
- Adjustable Output Voltage Option
- No Minimum Load Requirement for Fixed Voltage Output Devices
- Good Noise Rejection
- Current Limit and Thermal Shutdown Protection
- Operation up to 18 V Input
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AMS1117-3.3#C2891839YONGYUTAI · SOT-223-3 | YONGYUTAI | SOT-223-3 | 10,910 | ₹8.37 · 10,910 in stock | View |
 | LD1117-3.3#C347229UMW · SOT-223 | UMW | SOT-223 | 1,03,390 | ₹6.67 · 1,03,390 in stock | View |
 | AMS1117-3.3#C6068481GOODWORK · SOT-223 | GOODWORK | SOT-223 | 85,770 | ₹8.43 · 85,770 in stock | View |
 | NCP1117ST33T3G#C26537onsemi · SOT-223 | onsemi | SOT-223 | 65,135 | ₹31.01 · 65,135 in stock | View |
 | AMS1117-3.3#C369933KEXIN · SOT-223-4 | KEXIN | SOT-223-4 | 26,530 | ₹7.69 · 26,530 in stock | View |
