onsemiDatasheet (PDF)

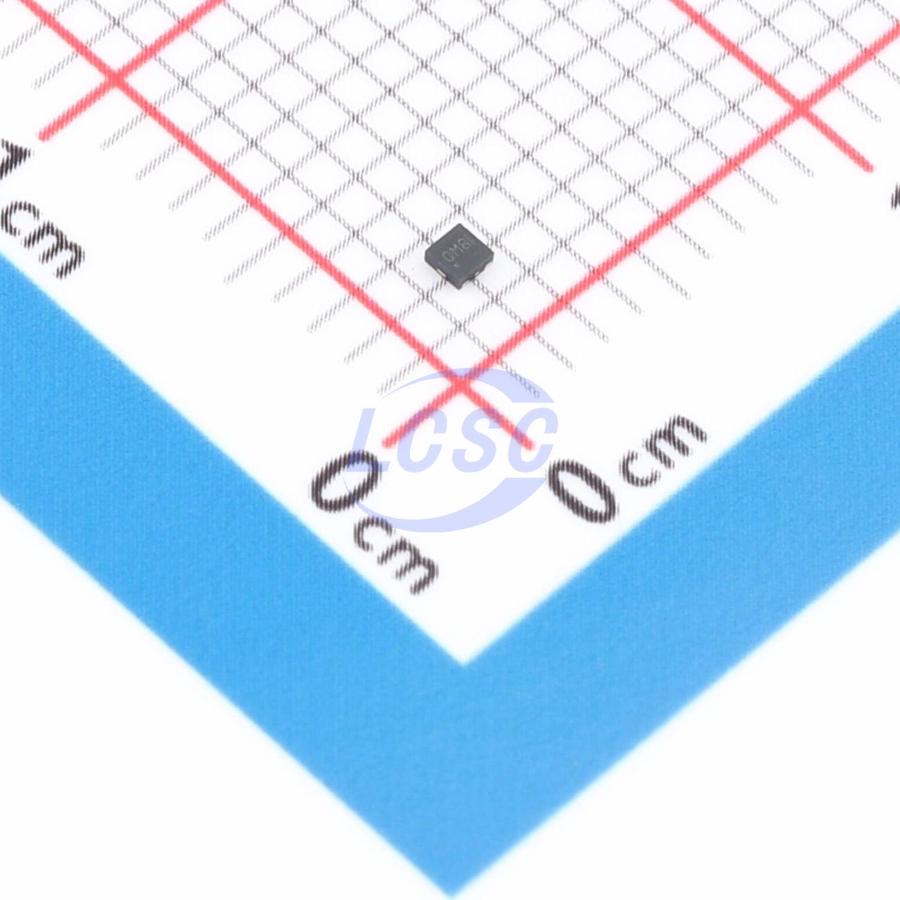

NCP115AMX105TCG
1.05V Positive Fixed XDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-4-EP(1x1)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCP115AMX105TCG
- Store part #
- C603499
- Package / case
- XDFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C603499
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.91 | ₹109.55 |
| 50+ | ₹21.41 | ₹1,070.50 |
| 150+ | ₹21.08 | ₹3,162.00 |
| 500+ | ₹20.74 | ₹10,370.00 |
5 × ₹21.91
₹109.55
excl. GST
₹129.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP115AMX105TCG
₹109.55 for 5 + GST
Specifications
- Output Voltage
- 1.05V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The NCP115 is 300 mA LDO that provides the engineer with a very stable, accurate voltage with low noise suitable for space constrained, noise sensitive applications. In order to optimize performance for battery operated portable applications, the NCP115 employs the dynamic quiescent current adjustment for very low Iₒ consumption at no−load.
Applications
- PDAs, Mobile phones, GPS, Smartphones
- Wireless Handsets, Wireless LAN
- Portable Medical Equipment
- Other Battery Powered Applications
Key features
- Operating Input Voltage Range: 1.7 V to 5.5 V
- Available in Fixed Voltage Options: 0.8 V to 3.6 V Contact Factory for Other Voltage Options
- Very Low Quiescent Current of Typ. 50 μA
- Soft Start Feature with Two Vₒᵤₜ Slew Rate Speed
- Standby Current Consumption: Typ. 0.1 μA
- Low Dropout: 250 mV Typical at 300 mA @ 2.8 V
- ±1% Accuracy at Room Temperature
- High Power Supply Ripple Rejection: 70 dB at 1 kHz
- Thermal Shutdown and Current Limit Protections
- Available in XDFN4 and TSOP−5 Packages
- Stable with a 1 μF Ceramic Output Capacitor
- These are Pb −Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP7343D-105FS4-7B#C5564195DIODES · X2-DFN1010-4 | DIODES | X2-DFN1010-4 | 460 | ₹10.56 · 460 in stock | View |
 | TCR3DM105,LF(SE#C7360734TOSHIBA · DFN-4(1x1) | TOSHIBA | DFN-4(1x1) | 500 | ₹44.11 · 500 in stock | View |
 | XTP2038-105AD1CT#C7422334XTX · DFN1x1-4L | XTX | DFN1x1-4L | 60 | ₹10.15 · 60 in stock | View |
| BU1AUA3WNVX-TL#C5604570ROHM · DFN-4-EP(1x1) | ROHM | DFN-4-EP(1x1) | On request | ₹45.02 · 0 in stock | View | |
| NCP115CMX105TCG#C892054onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | On request | ₹16.23 · 0 in stock | View | |
